Dual Mode Mini DisplayPort (Interop) Test Adapter







Á¦Ç° »ç¾ç

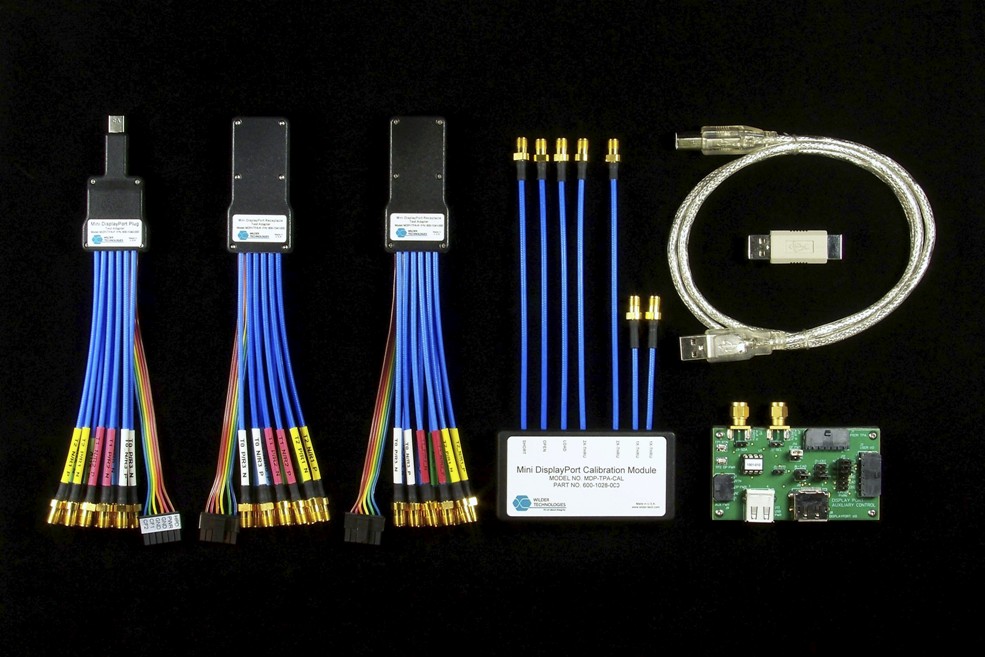

The MDPI-TPA-PPRCA Dual Mode Mini DisplayPort Interoperability test adapter or test fixture kit facilitates Source and Sink compliance testing for Dual Mode Mini DisplayPort devices.



Key Electrical:

  • 1.35 Gb/s, 2.7 Gb/s, and 5.4 Gb/s data rates supported

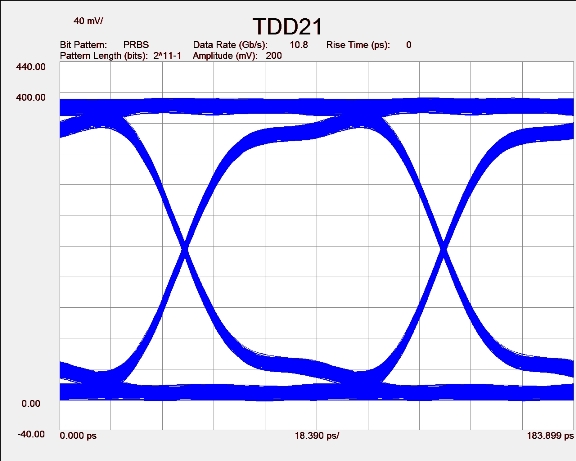

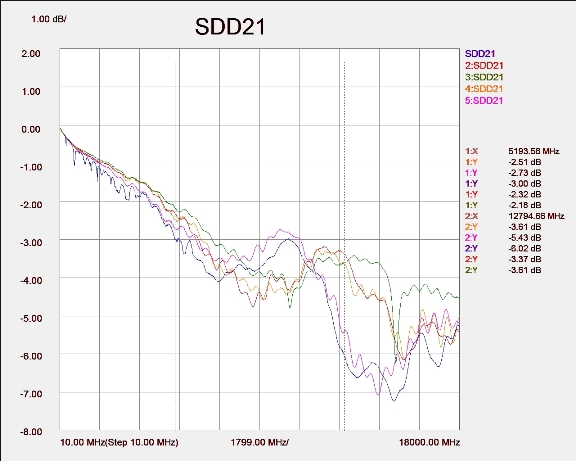

  • Insertion loss < -3 dB @ 6.5 GHz mated plug and receptacle fixtures

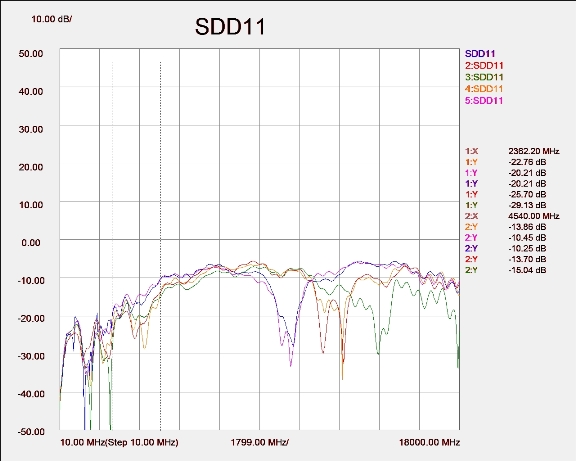

  • Return loss < -20dB @ 4.25 GHz mated plug and receptacle fixtures
  • Differential Impedance 100 +/- 5 ohms
  • Single Ended Impedance 50 +/- 2.5 ohms



Key Mechanical:

  • High performance .086" Flexible SMA coaxial cables
  • All critical components are enclosed to facilitate robustness
  • Coax cables are enclosed in a rotation compliant strain relief
  • Coax cables are axially retained in the fixture enclosure



Calibration Cables:

  • Use to compensate for test fixture losses and phase delay
  • 1X & 2X SMA to SMA cables facilitate using SMA Coax Standards
  • 2X THRU insertion loss < -3.0 dB @ 18.7 GHz
  • 2X THRU return loss < -20dB @ 13.2 GHz
