Mini-SAS HD Test Adapter

MSASHD-TPAR-PRC (kit # 640-0366-000)

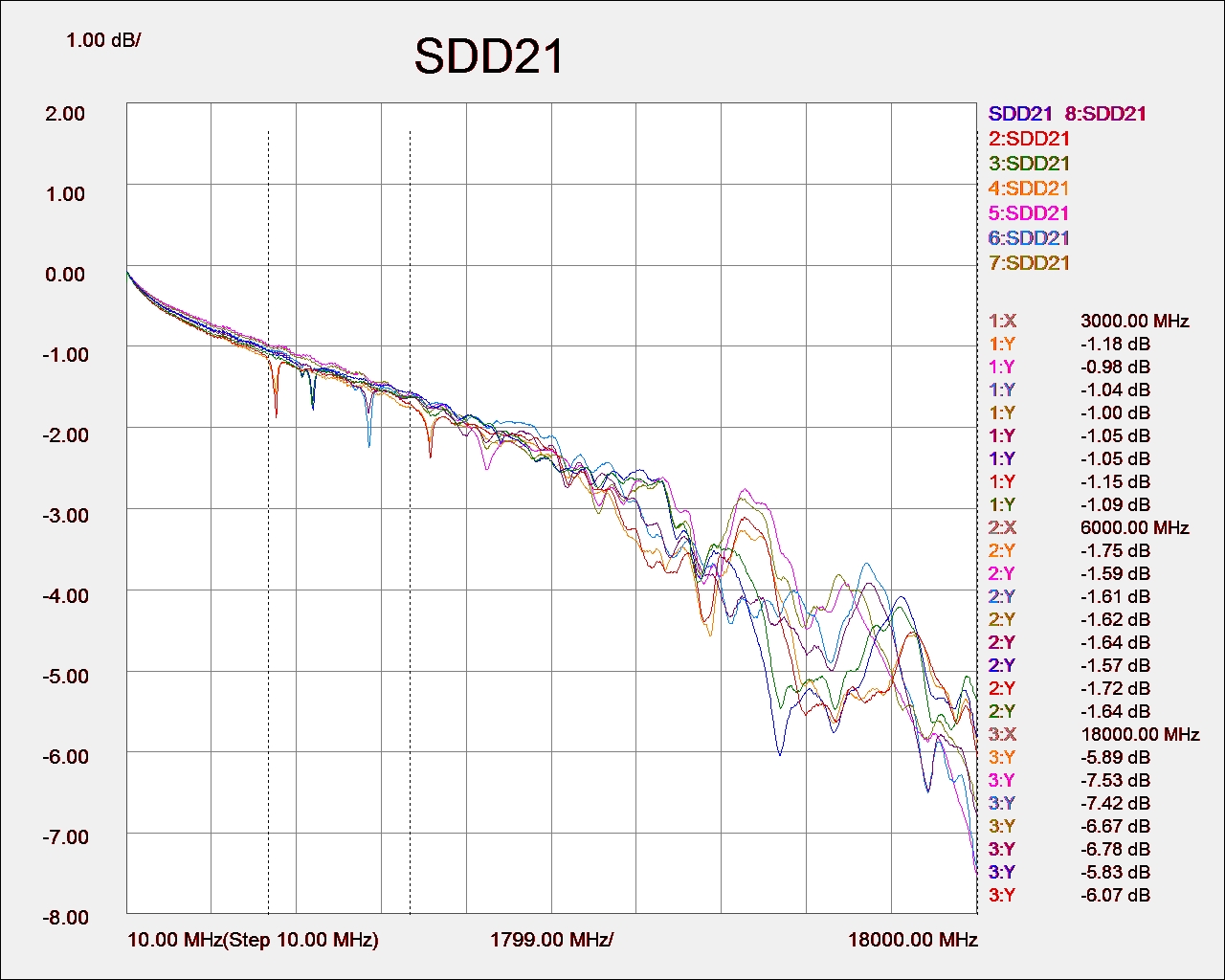

Differential Insertion Loss (SDD21) of a mated Plug and Recep fixtures. Measurement does not include test fixture calibration.



Á¦Ç° »ç¾ç

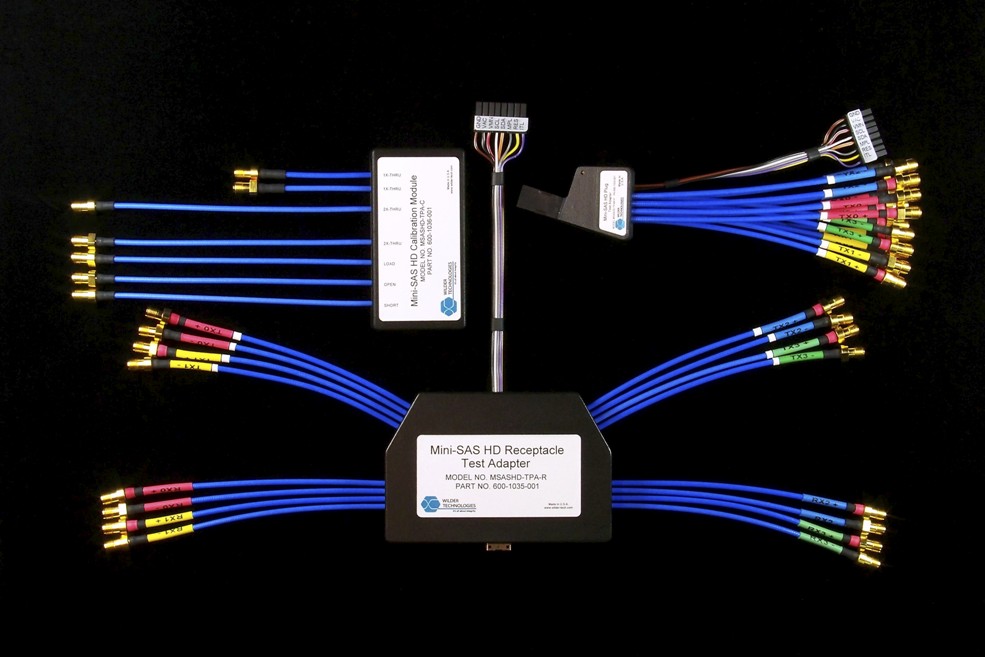

The MSASHD-TPAR-PRC Mini-SAS HD test adapter or test fixture kit facilitate Host and Device compliance testing for Mini-SAS HD Source and Sink devices.

Key Electrical:

  • 3.0 Gb/s, 6.0 Gb/s, and 12.0 Gb/s data rates supported
  • IL < -3 dB @ 5.8 GHz mated Host and Device fixtures w/Socket
  • RL < -10dB @ 5.2 GHz mated Host and Device fixtures w/Socket
  • Differential Impedance 100 +/- 5 ohms
  • Single Ended Impedance 50 +/- 2.5 ohms

Key Mechanical:

  • High performance .086" Flexible SMA coaxial cables
  • All critical components are enclosed to facilitate robustness
  • Coax cables are enclosed in a rotation compliant strain relief
  • Coax cables are axially retained in the fixture enclosure

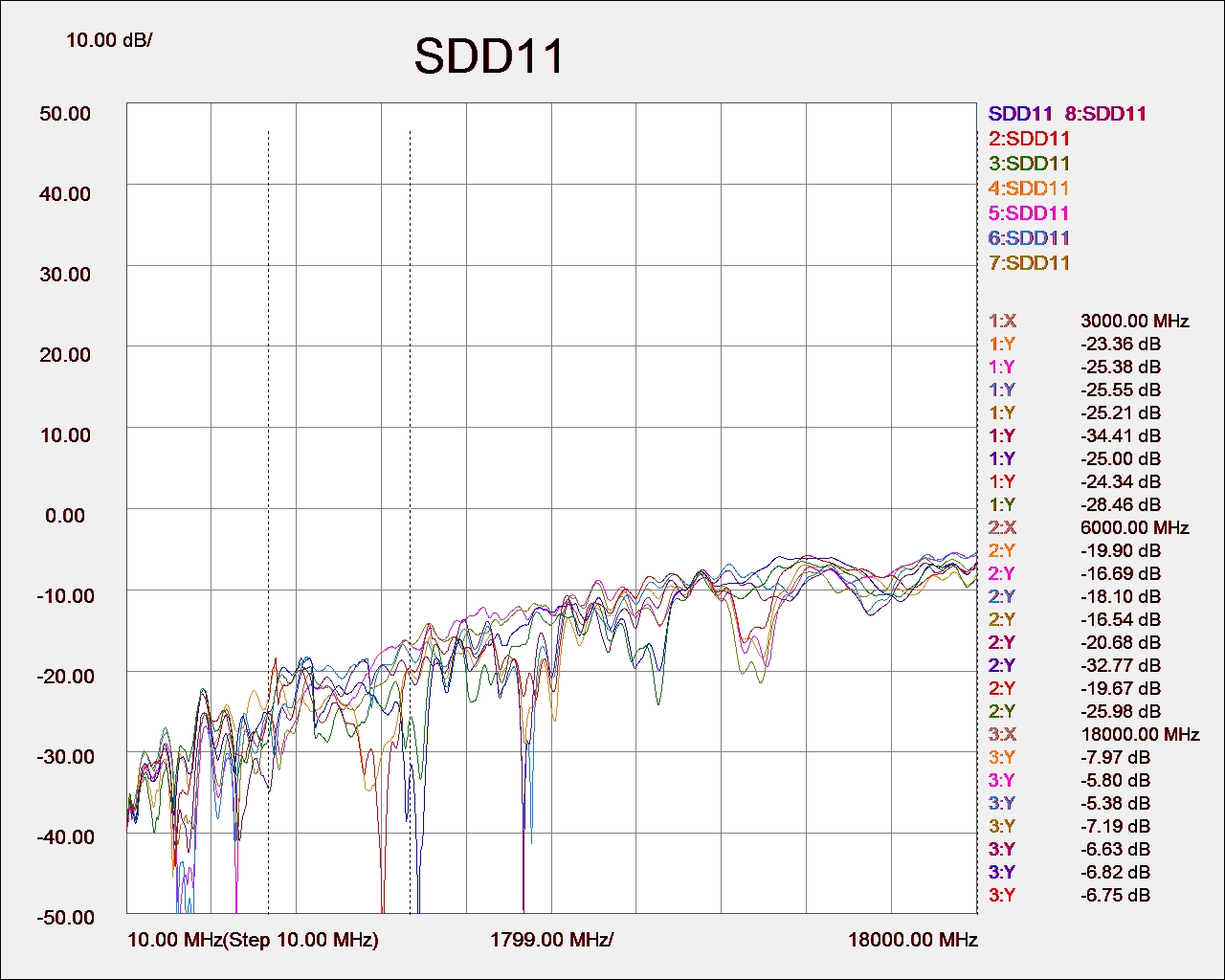

Differential Return Loss (SDD11) of a mated Plug and Recep fixtures. Measurement does not include test fixture calibration.

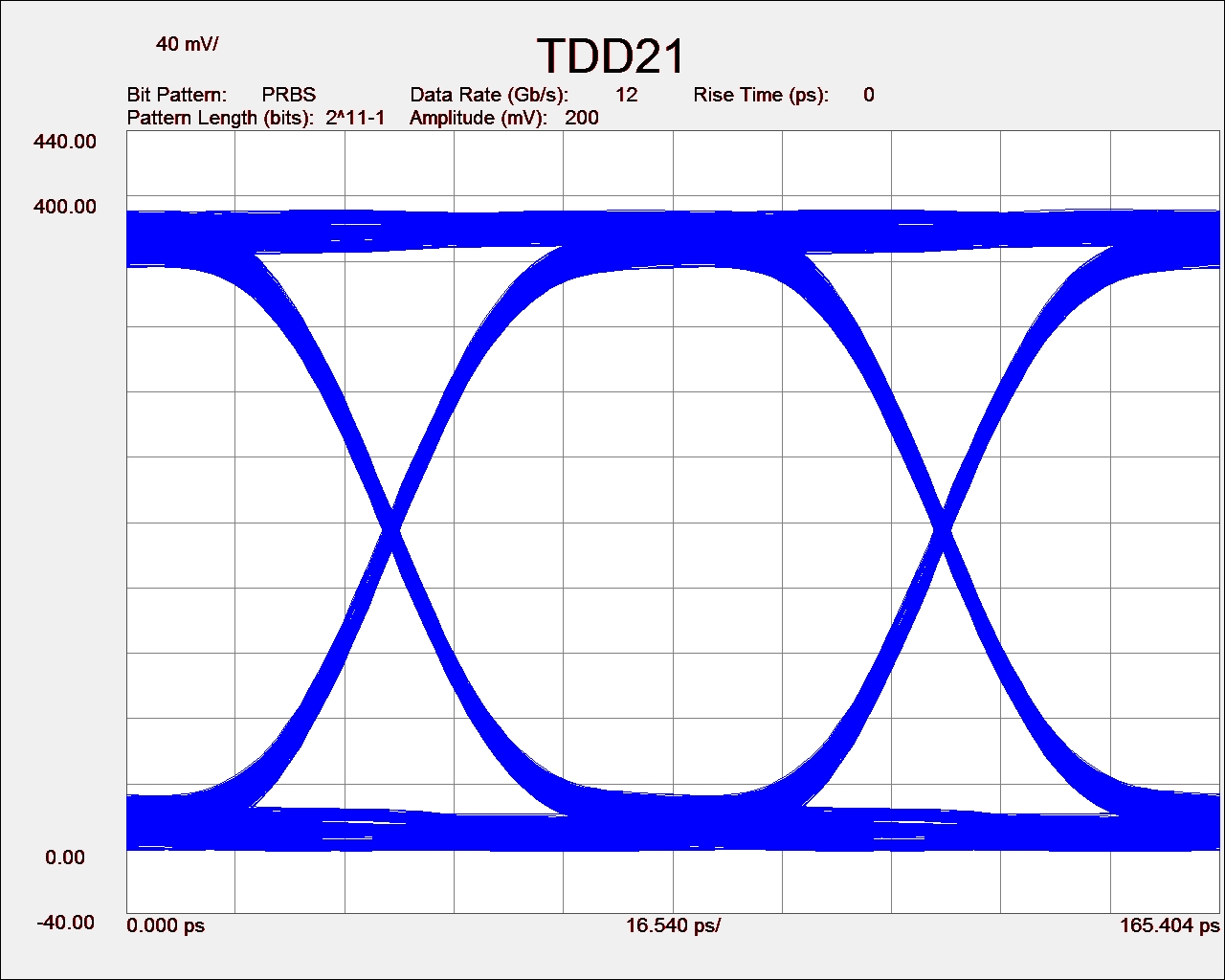

12.0 Gbs Eye (PRBS 2^11-1) (SDD21) of a mated Plug and Recep fixtures. Measurement does not include test fixture calibration
