SATA 22 Positon Gen3 Test Adapter

SATA22-TPA-PRC (kit # 640-0173-000)

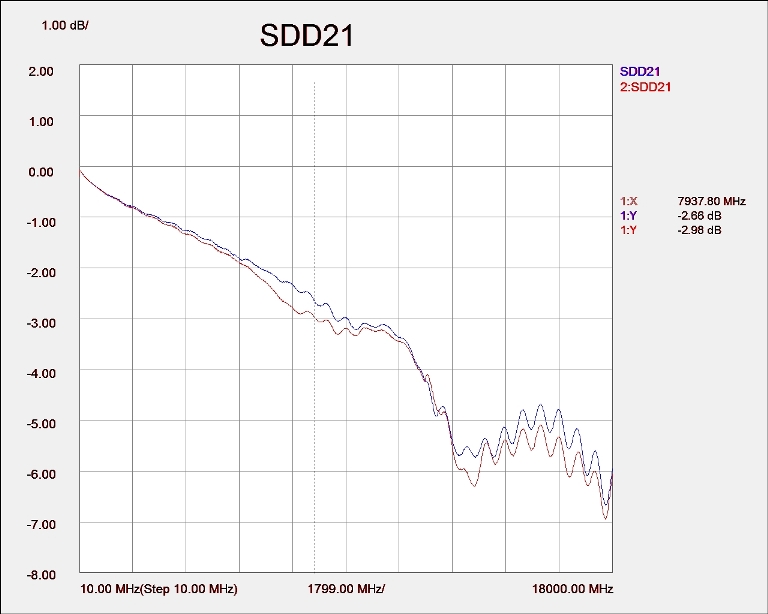

Differential Insertion Loss (SDD21) with mated plug and receptacle test fixtures. Measurement does not include test fixture calibration.

제품 사양

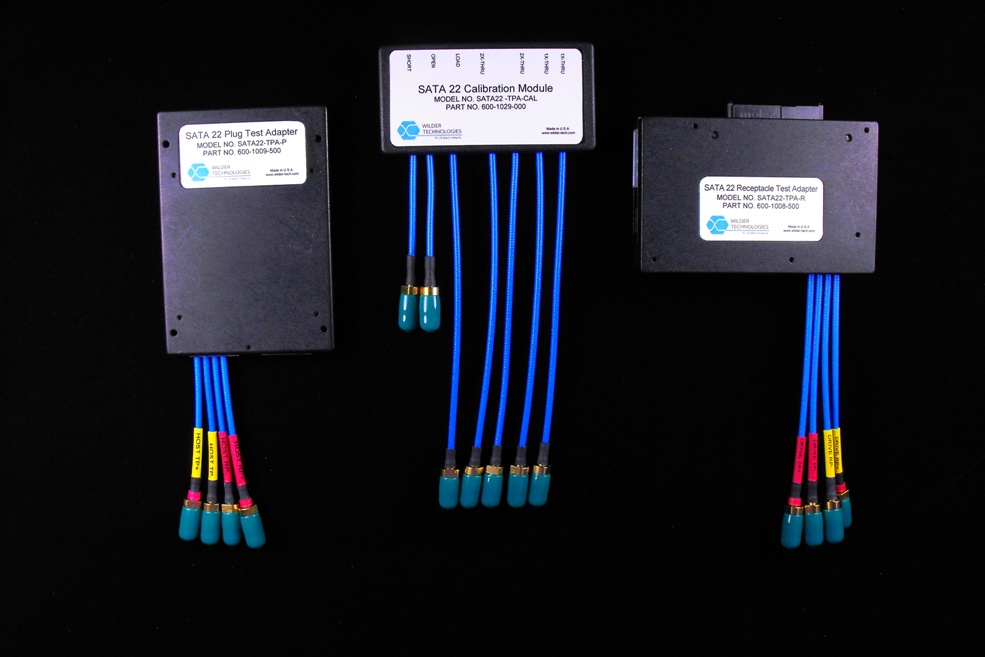

The SATA22-TPA-PRC test adapter or test fixture kits facilitate Source and Sink compliance testing for Gen3 SATA 22 Position Serial ATA host interfaces and Serial ATA device interfaces.

The SATA 22 Position is sometimes called the SATA direct attach interface whereby the interface combines the SATA 7 high speed pin connector with the SATA 15 pin power and control connector into one 22 pin connector.

Key Electrical:

• 1.5 Gb/s, 3.0 Gb/s, and 6.0 Gb/s data rates supported
• Insertion loss < -3 dB @ 7.9 GHz mated plug and receptacle fixtures
• Return loss < -20dB @ 7.2 GHz mated plug and receptacle fixtures
• Differential Impedance 100 +/- 5 ohms
• Single Ended Impedance 50 +/- 2.5 ohms

Key Mechanical:

• High performance .086" Flexible SMA coaxial cables
• All critical components are enclosed to facilitate robustness
• Coax cables are enclosed in a rotation compliant strain relief
• Coax cables are axially retained in the fixture enclosure

Calibration Cables:

• Use to compensate for test fixture losses and phase delay
• 1X & 2X SMA to SMA cables facilitate using SMA Coax Standards
• 2X THRU insertion loss < -3 dB @ 12.6 GHz
• 2X THRU return loss < -20dB @ 4.4 GHz
• Optional dual calibration cables available

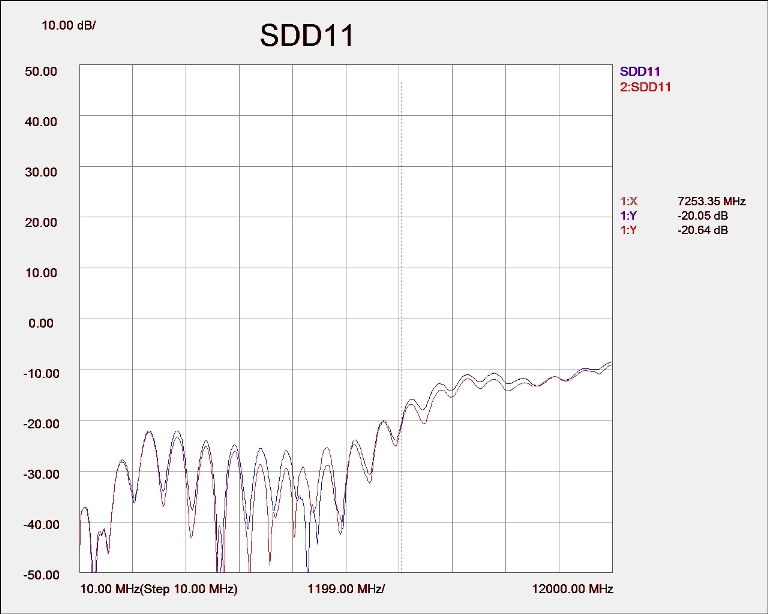

Differential Return Loss (SDD11) with mated plug and receptacle test fixtures. Measurement does not include test fixture calibration.

12 Gbs Eye (PRBS 2^11-1) (SDD21) with mated plug and receptacle test fixtures. Measurement does not include test fixture calibration.
