MHL Test Adapters

MHL-TPA-AGIL (kit # 640-0465-001)

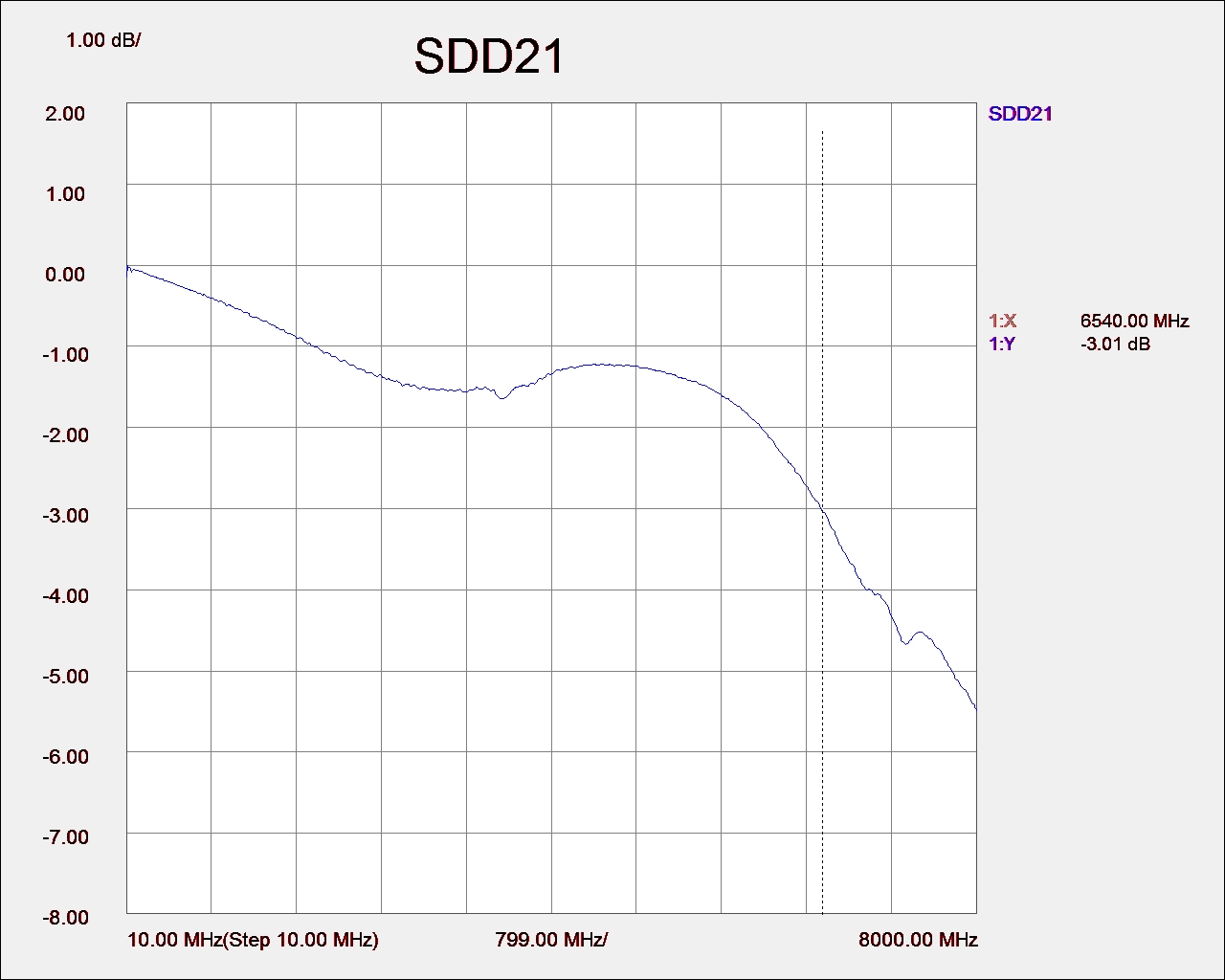

Differential Insertion Loss (SDD21) - mated uUSB plug (640-1053-000) and uUSB (640-1054-000) receptacle test fixtures.

제품 사양

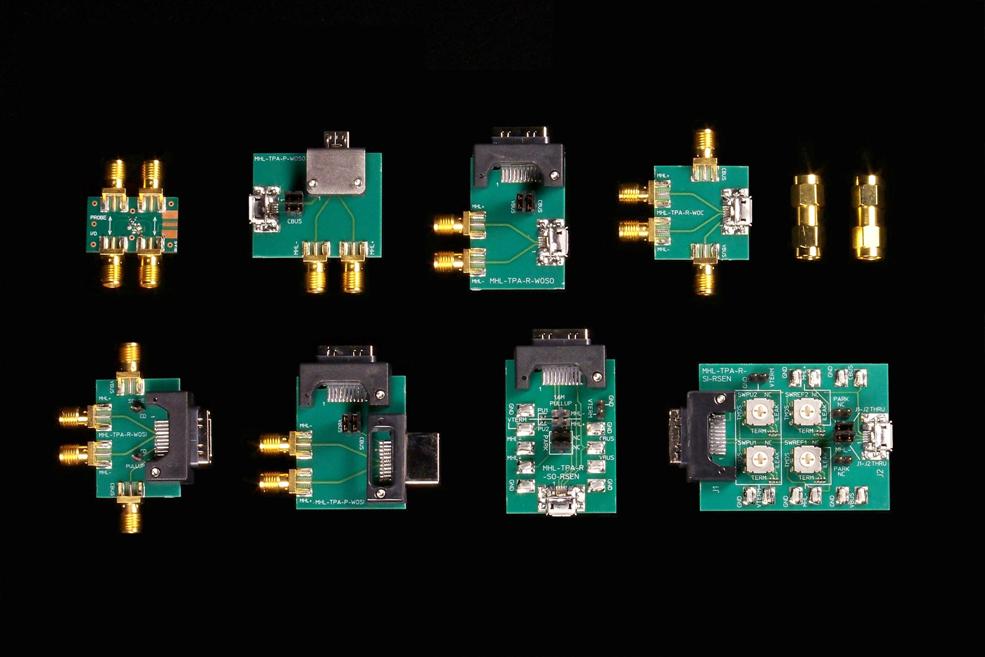

The MHL test adapters or MHL test fixture kits facilitate compliance testing for MHL Source, Sink, Dongle, Cable and Reciever Sense Impedance tests for both MHL Source and Sink devices. We have MHL fixture kits for supporting both the Agilent and the Tektronix MHL test solutions.

Key Electrical:

• >3.0 Gb/s data rate supported
• Insertion loss < -3 dB @ 6.5 GHz mated plug and receptacle fixtures
• Return loss < -10dB @ 1.9 GHz mated plug and receptacle fixtures
• Differential Impedance 100 +/- 5 ohms - excluding uUSB connector
• Single Ended Impedance 50 +/- 2.5 ohms- excluding uUSB connector

Key Mechanical:

• Small form factor PCB boards
• Critical plug connectors have shrouds to facilitate robustness

MHL™ (Mobile High-Definition Link) is a new mobile high-definition audio/video interface standard for directly connecting mobile phones and other portable consumer electronics (CE) devices to HDTVs and displays. The MHL standard features a low pin-count interface able to support up to 1080p HD video and digital audio while simultaneously providing power to the mobile device.

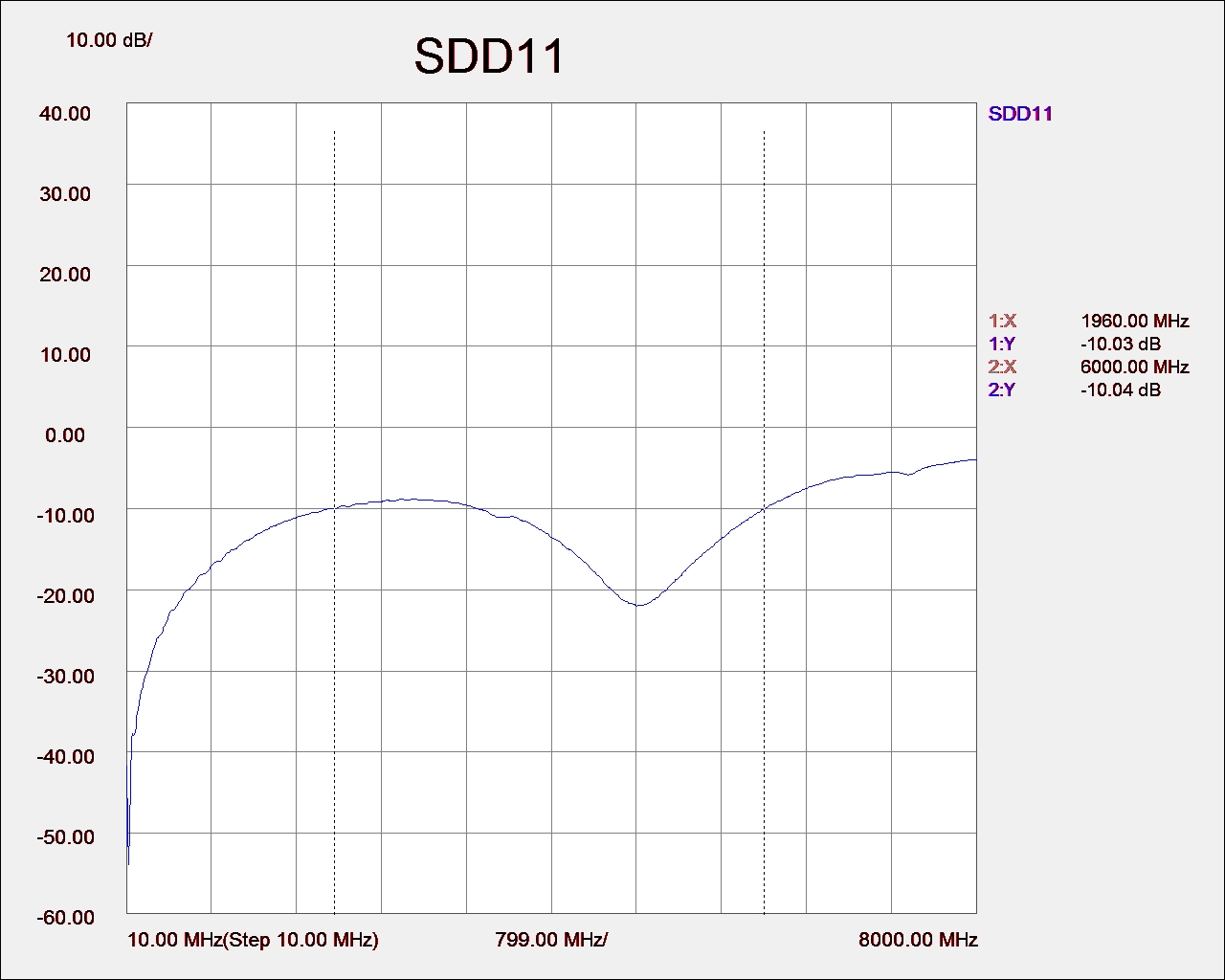

Differential Return Loss (SDD21) - mated uUSB plug (640-1053-000) and uUSB (640-1054-000) receptacle test fixtures.

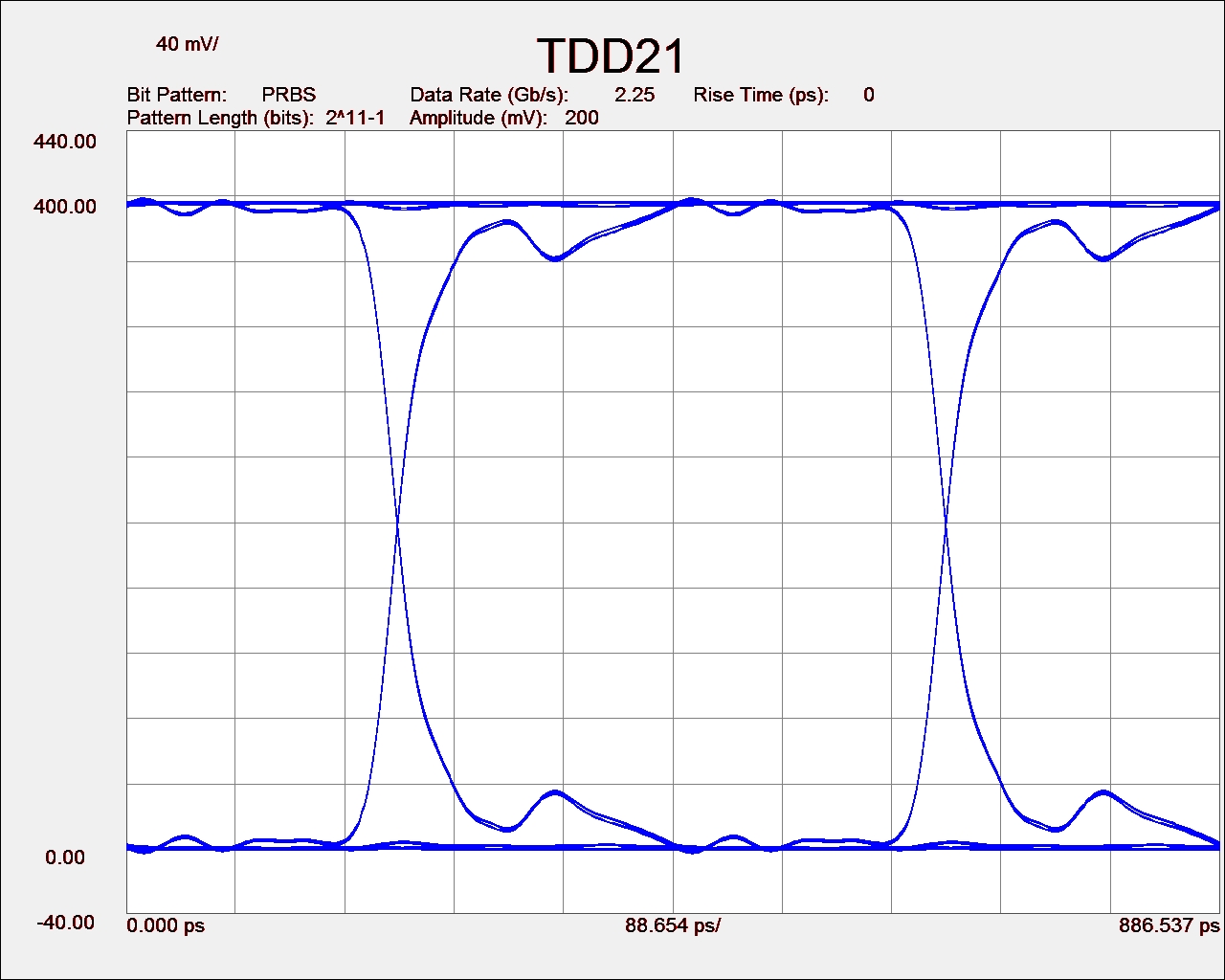

2.25 Gbs (PRBS 2^11-1) Eye - mated uUSB plug (640-1053-000) and uUSB (640-1054-000) receptacle test fixtures..
