Fibre Channel Test Adapters

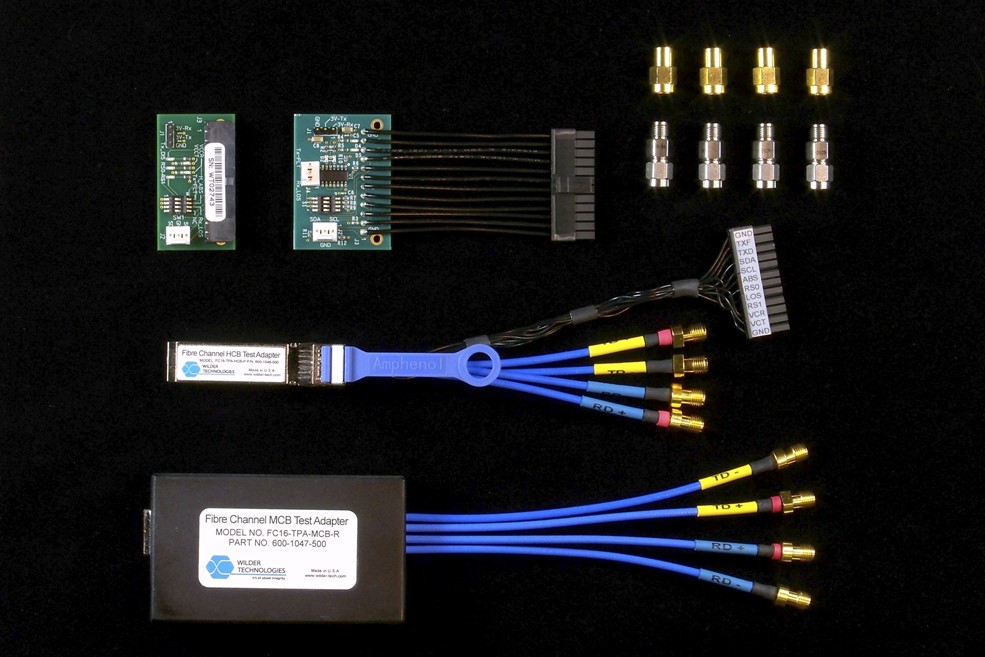

Fibre Channel HCB and MCB Test Fixture (kit # 640-0560-000)

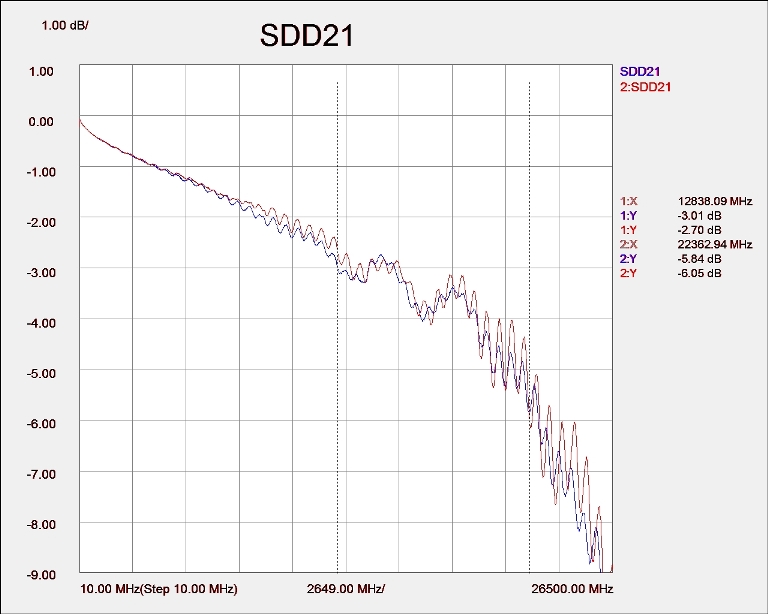

Differential Insertion Loss (SDD21) with mated HCB and MCB test fixture. Measurement does not include test fixture De-Embedding.



Á¦Ç° »ç¾ç



Fiber Channel Test AdaptersThe FC16-TPA-PRK test fixture kit or test adapter kit will facilitate the Fibre Channel host and device compliance testing up to 16 Gbps using our Fibre Channel Host Compliance Board (HCB) test fixture and our Module Compliance Board (MCB) test fixture.



Key Electrical:

  • 16.0 Gb/s data rate supported
  • Insertion loss < -3 dB @ 12.8 GHz mated HCB and MCB fixtures
  • Return loss < -10dB @ ~16.3 GHz mated HCB and MCB fixtures
  • Differential Impedance 100 +/- 5 ohms - excluding recep connector
  • Single Ended Impedance 50 +/- 2.5 ohms- excluding recep connector

Key Mechanical:

  • HCB Fixture emulates the form factor envelope of a Fibre Channel cable assembly

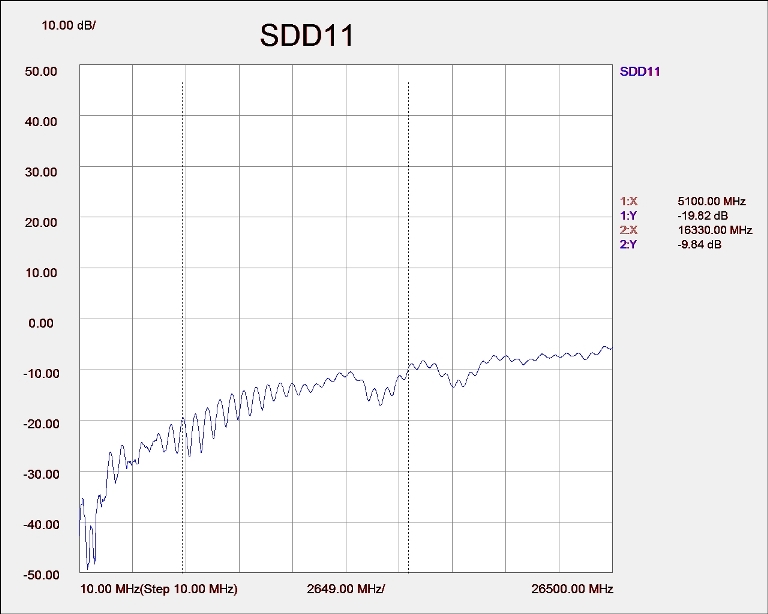

Differential Return Loss (SDD11) with mated HCB and MCB test fixtures. Measurement does not include test fixture De-Embedding

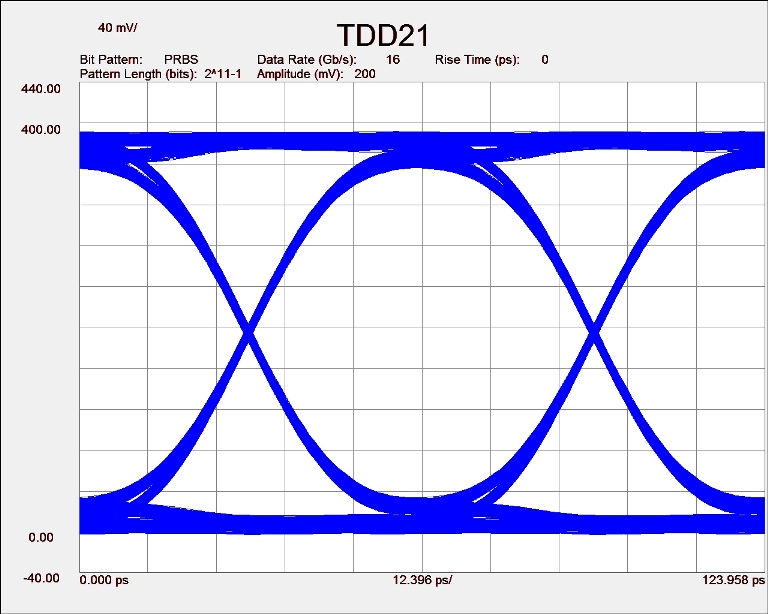

16.0 Gbs Eye (PRBS 2^11-1) (SDD21) with mated plug and receptacle test fixtures. Measurement does not include test fixture De-Embedding
