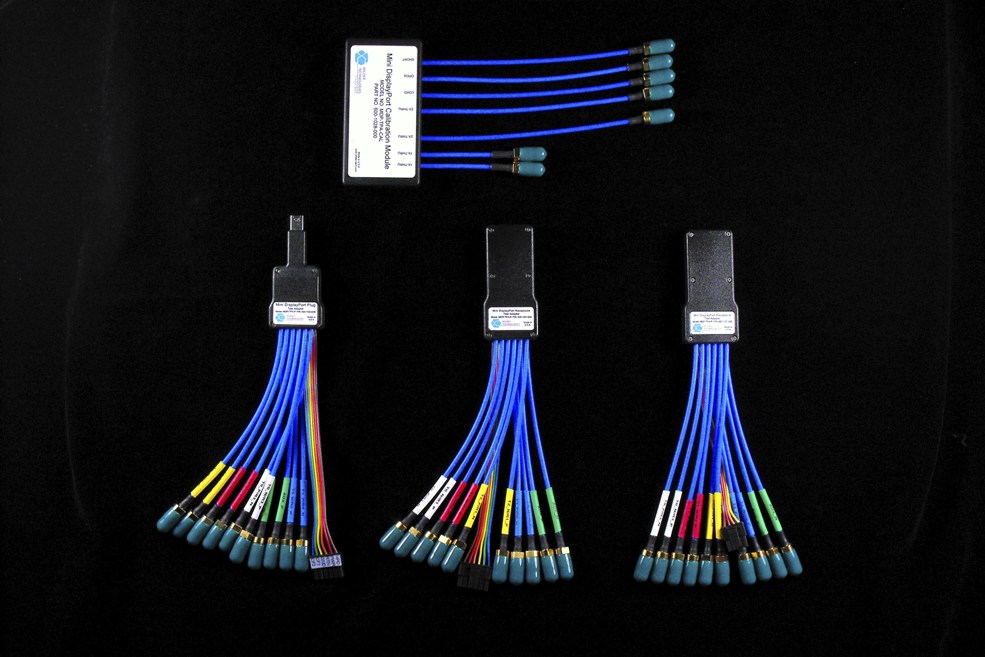

The mDP-TPA-PPRC Mini DisplayPort test adapter or test
fixture kit facilitates Source and Sink compliance testing for Mini DisplayPort
devices
Key Electrical:
- 1.35 Gb/s, 2.7 Gb/s, and 5.4 Gb/s data rates
supported
- Insertion loss < -3 dB @ 5.2 GHz mated plug and
receptacle fixtures
- Return loss < -20dB @ 2.4 GHz mated plug and
receptacle fixtures
- Differential Impedance 100 +/- 5 ohms
- Single Ended Impedance 50 +/- 2.5 ohms
Key Mechanical:
- High performance .086" Flexible SMA coaxial
cables
- All critical components are enclosed to facilitate
robustness
- Coax cables are enclosed in a rotation compliant
strain relief
- Coax cables are axially retained in the fixture
enclosure
alibration Cables:
- Use to compensate for test fixture losses and
phase delay
- 1X & 2X SMA to SMA cables facilitate using SMA
Coax Standards
- 2X THRU insertion loss < -3.0 dB @ 18.7 GHz
- 2X
THRU return loss < -20dB @ 13.2 GHz
|  |
