uSSD Test Adapter

USSD-TPA-HRDS (kit # 640-0573-000)

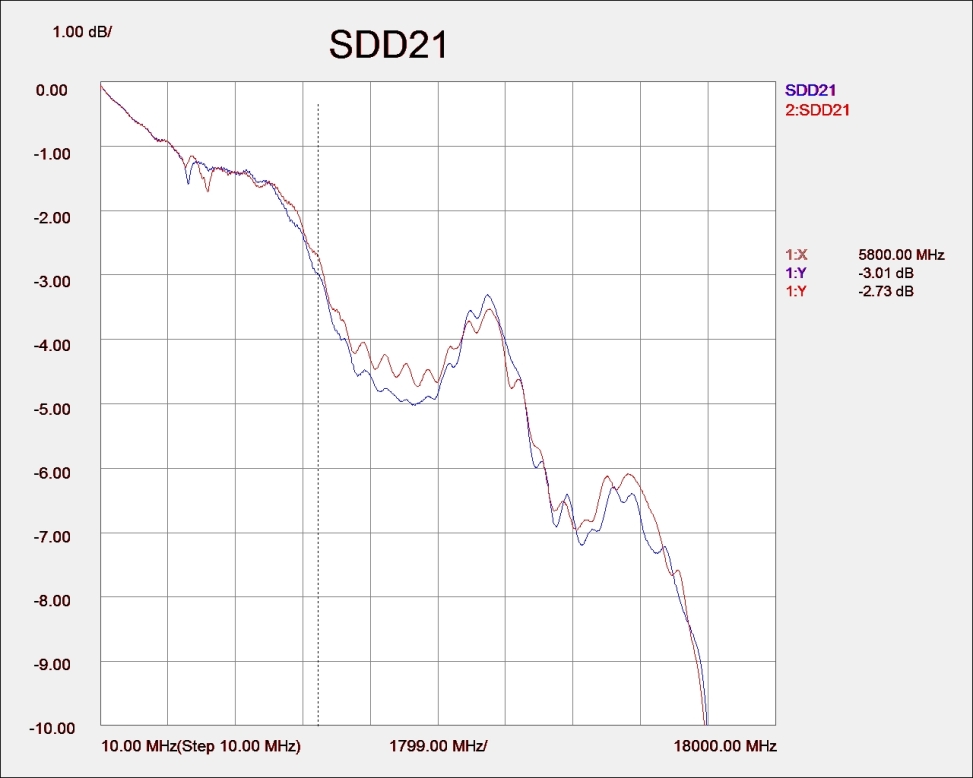

Differential Insertion Loss (SDD21) mated Host and Device fixtures w/Socket. Measurement does not include test fixture calibration.

제품 사양

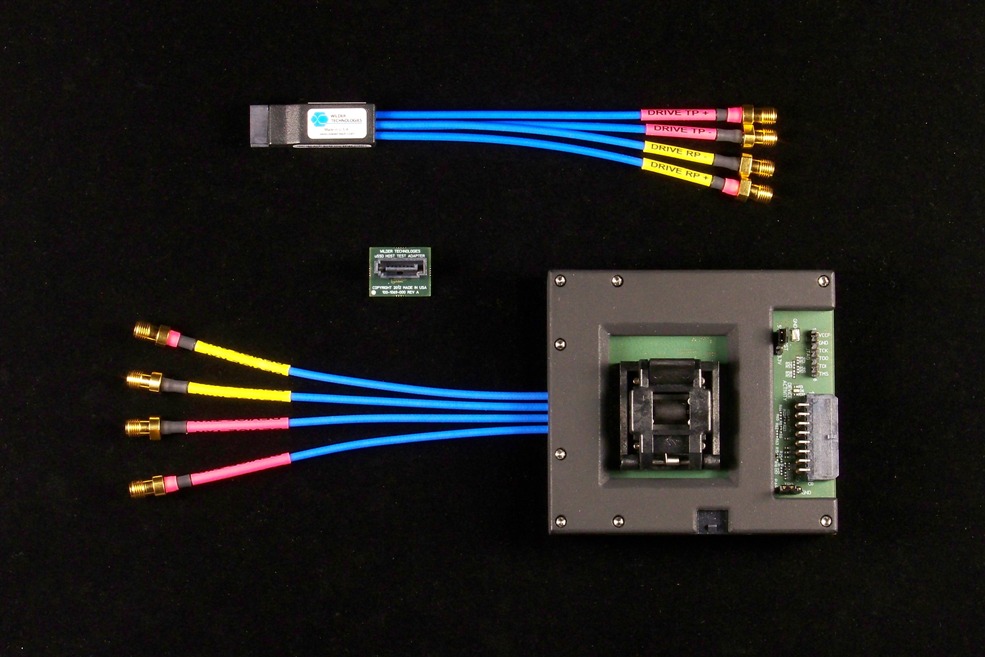

The USSD-TPA-HRDS Micro-SSD (uSSD) test adapter or test fixture kit facilitates Device and Host compliance testing for uSSD Source and Sink devices.

Key Electrical:

• 1.5 Gb/s, 3.0 Gb/s, and 6.0 Gb/s data rates supported
• IL < -3 dB @ 5.8 GHz mated Host and Device fixtures w/Socket
• RL < -10dB @ 5.2 GHz mated Host and Device fixtures w/Socket
• Differential Impedance 100 +/- 5 ohms
• Single Ended Impedance 50 +/- 2.5 ohms

Key Mechanical:

• High performance .086" Flexible SMA coaxial cables
• All critical components are enclosed to facilitate robustness
• Coax cables are enclosed in a rotation compliant strain relief
• Coax cables are axially retained in the fixture enclosure

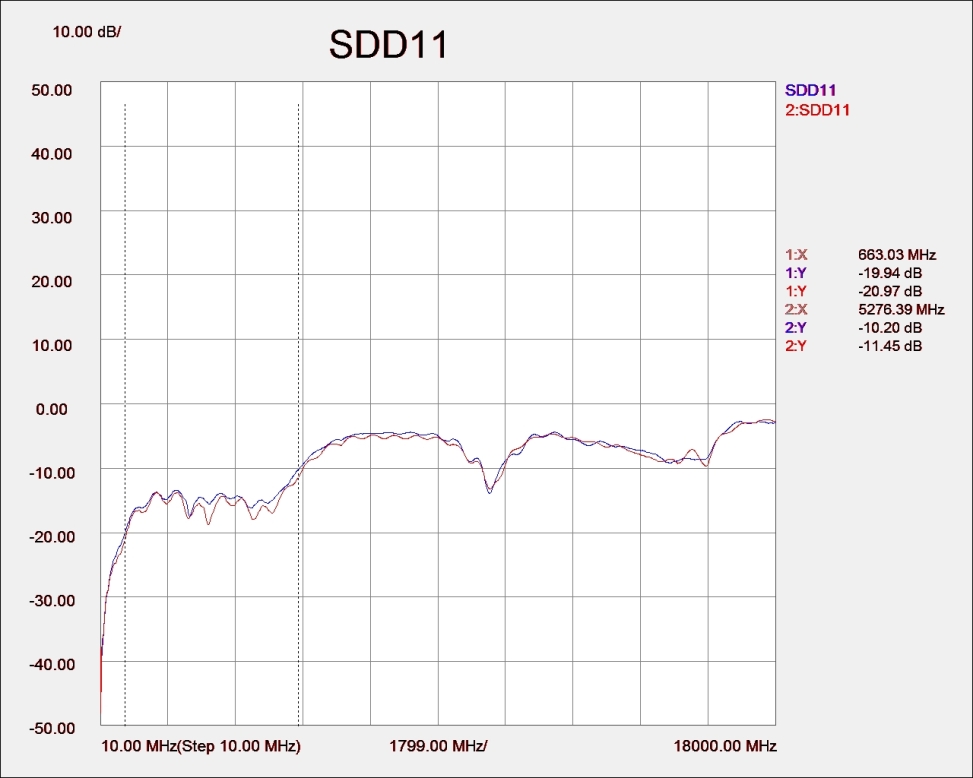

Differential Return Loss (SDD11) mated Host and Device fixtures w/Socket. Measurement does not include test fixture calibration.

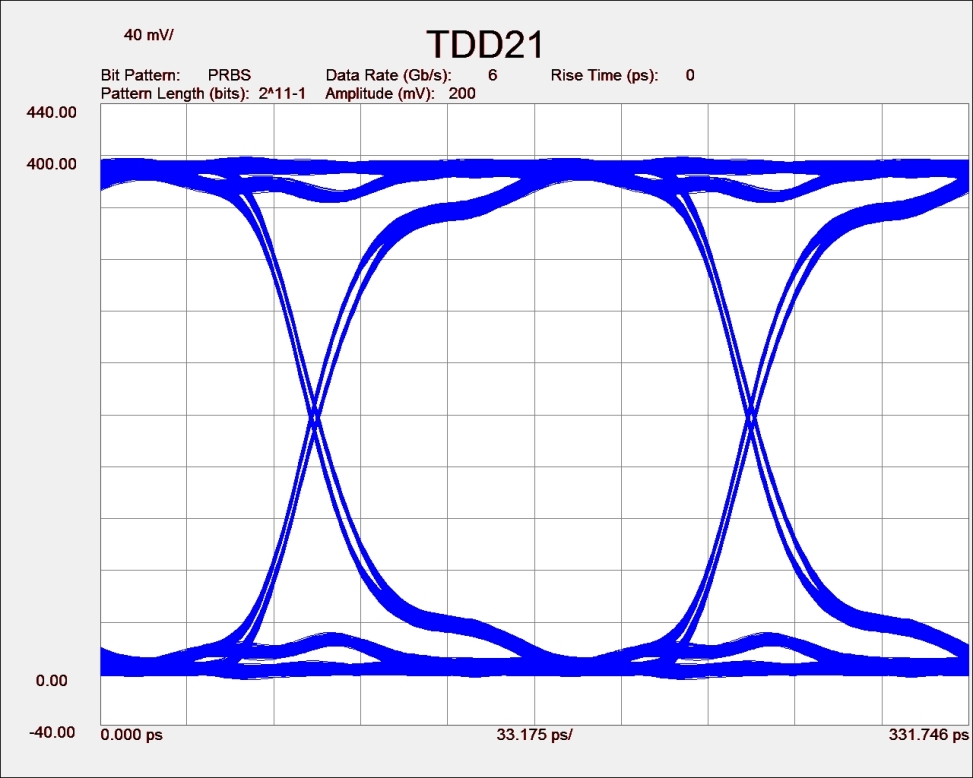

6.0 Gbs Eye (PRBS 2^11-1) (SDD21) mated Host and Device fixtures w/Socket. Measurement does not include test fixture calibration.
