Ethernet 10G BaseT RJ-45 Test Fixture Test Fixture

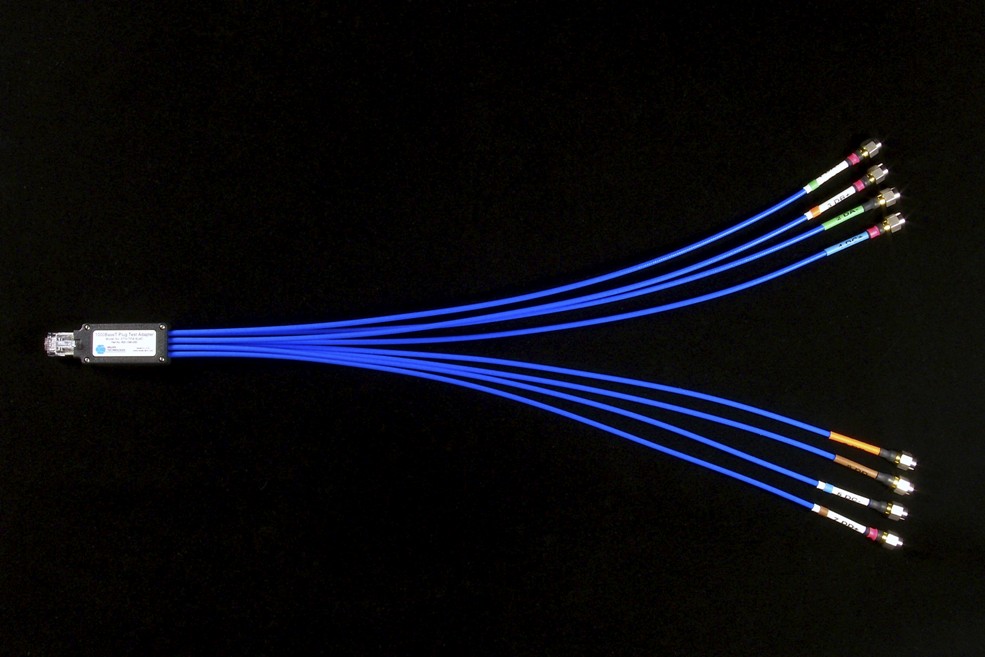

RJ-45 10G BaseT Plug Test Fixture (kit # 640-0650-000)

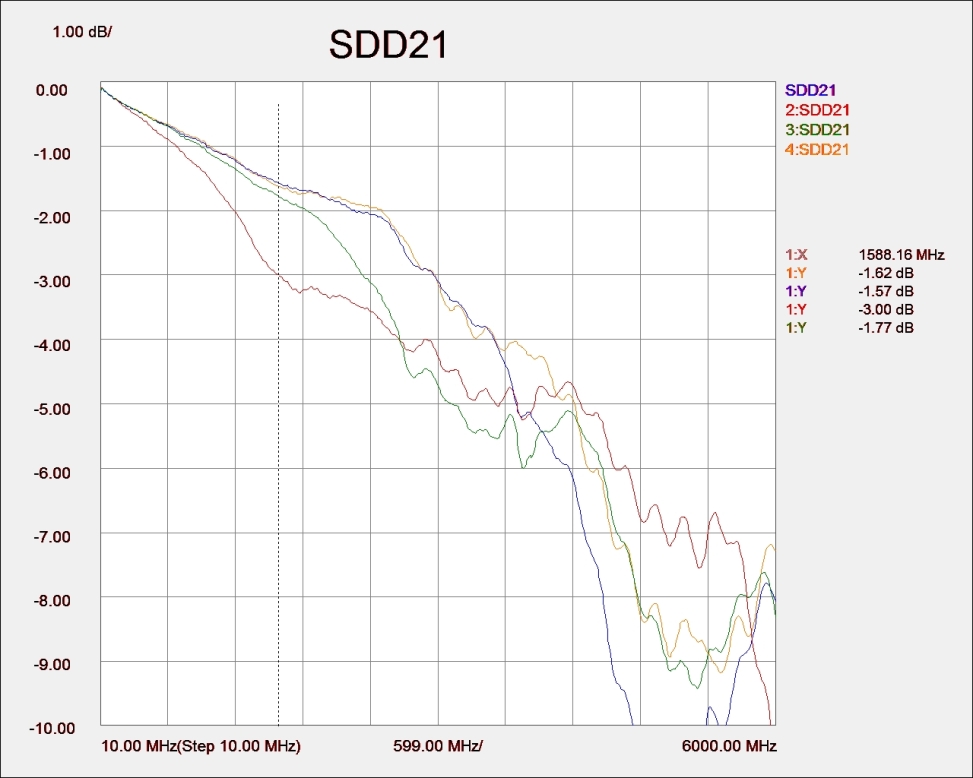

Differential Insertion Loss (SDD21) RJ-45 Plug Test Fixture. Without fixture De-Embedding.



제품 사양



The Ethernet 10G BaseT RJ-45 (8P8C) TPA Plug Test Adapter (ETH-TPA-RJ45) tests hosts to the requirements of the IEEE 802.3 specification. Construction of the test adapter follows the EIA/TIA-568 standard with regard to pin/pair assignments and color coding, specifically incorporating the T568A configuration.

Key Electrical:

  • 10.0 Gb/s data rate supported
  • Intra-pair and Inter-pair skew < +/- 6ps
  • Differential Impedance 100 +/- 10.0 ohms
  • Single Ended Impedance 50 +/- 5.0 ohms

Key Mechanical:

  • 16" High performance .086" Flexible SMA coaxial cables
  • All critical components are enclosed to facilitate robustness
  • Coax cables are enclosed in a rotation compliant strain relief
  • Coax cables are axially retained in the fixture enclosure

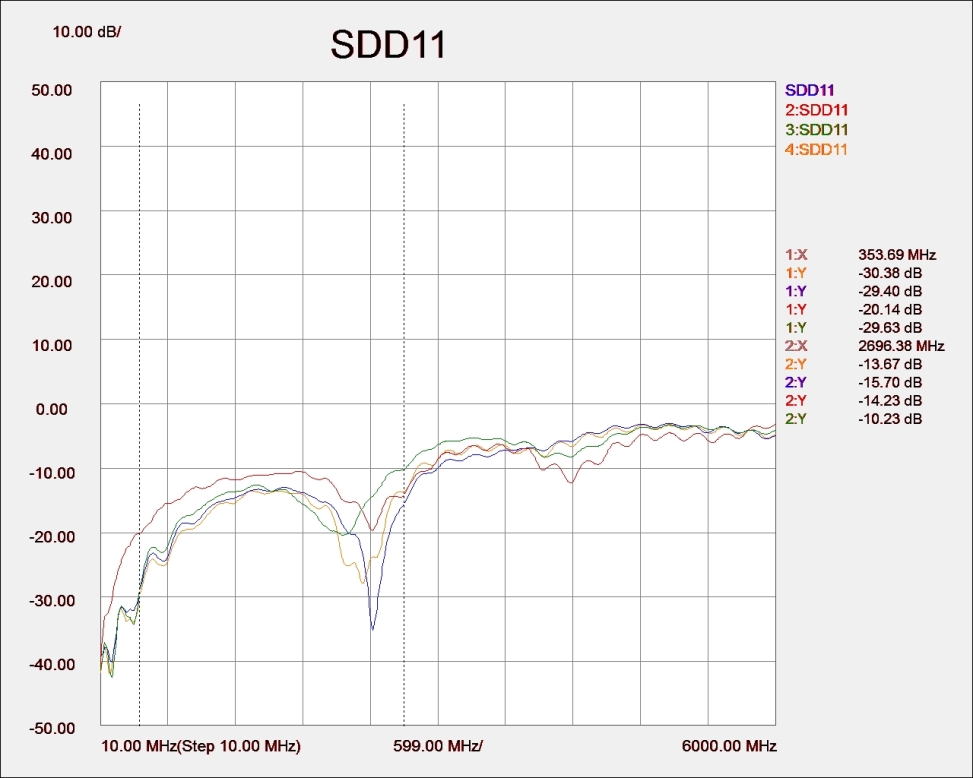

Differential Return Loss (SDD11) RJ-45 Plug Test Fixture. Without fixture De-Embedding.

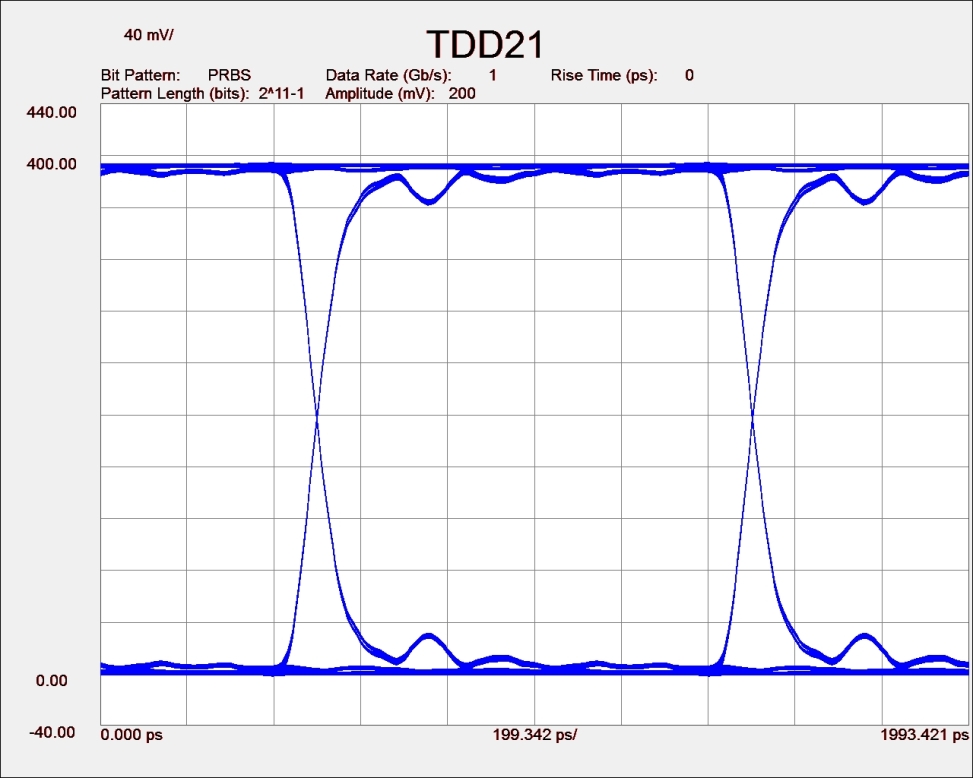

1.0 Gbs Eye (PRBS 2^11-1) (SDD21) RJ-45 Plug Test Fixture. Without fixture De-Embedding..
