mSATA Gen3 Test Adapter

MSATA-TPA-PRC (kit # 640-0143-000)

Differential Insertion Loss (SDD21) with mated plug and receptacle test fixture. Measurement does not include test fixture calibration.

제품 사양

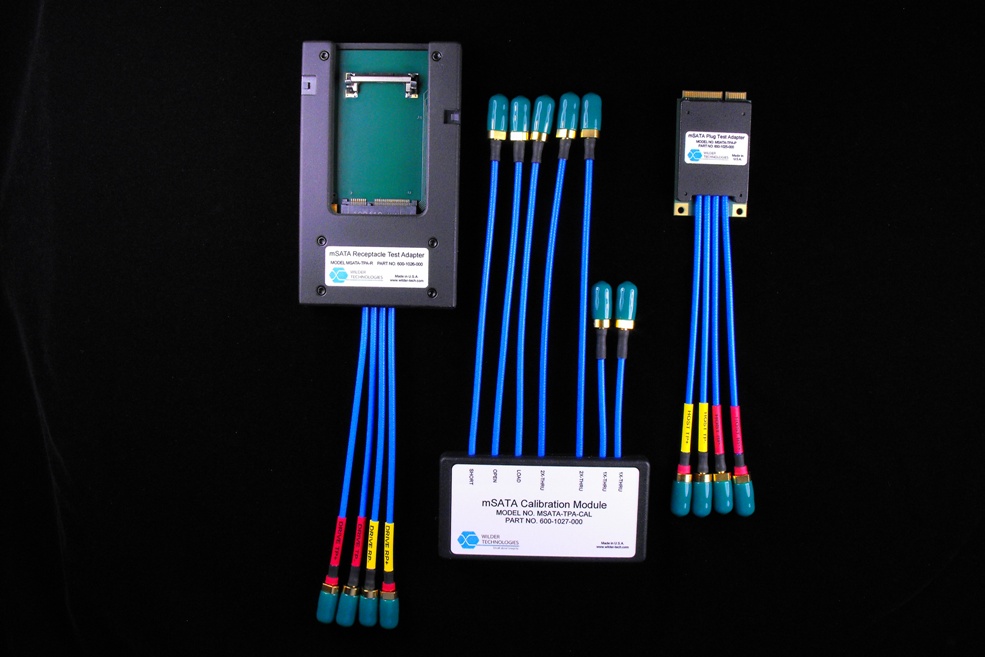

The mSATA-TPA-PRC SATA test adapter or test fixture kit facilitates Gen3 Source and Sink compliance testing for both Serial ATA Solid State Drives (SSD) hosts and devices.

Key Electrical:

• 1.5 Gb/s, 3.0 Gb/s, and 6.0 Gb/s data rates supported
• Insertion loss < -3 dB @ 12.6 GHz mated plug and receptacle fixtures
• Return loss < -20dB @ 4.4 GHz mated plug and receptacle fixtures
• Differential Impedance 100 +/- 5 ohms
• Single Ended Impedance 50 +/- 2.5 ohms

Key Mechanical:

• High performance .086" Flexible SMA coaxial cables
• All critical components are enclosed to facilitate robustness
• Coax cables are enclosed in a rotation compliant strain relief
• Coax cables are axially retained in the fixture enclosure

Calibration Cables:

• Use to compensate for test fixture losses and phase delay
• 1X & 2X SMA to SMA cables facilitate using SMA Coax Standards
• 2X THRU insertion loss < -1.8 dB @ 26.5 GHz
• 2X THRU return loss < -20dB @ 15.8 GHz
• Optional dual calibration cables available

Differential Return Loss (SDD11) with mated plug and receptacle test fixtures. Measurement does not include test fixture calibration.

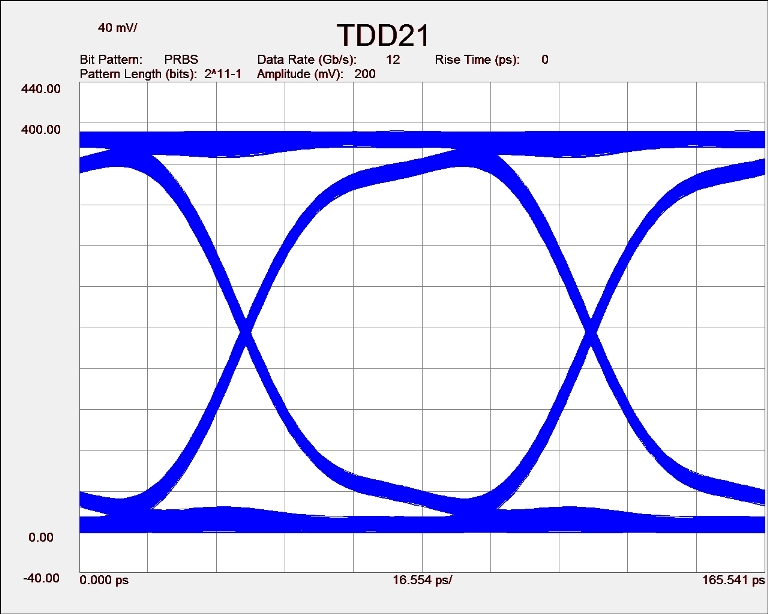

12 Gbs Eye (PRBS 2^11-1) (SDD21) with mated plug and receptacle test fixtures. Measurement does not include test fixture calibration.
