HDMI Type-C with HEAC Test Adapter

HDMIC-TPA-PPRCE (kit # 640-0184-000)

Differential Insertion Loss (SDD21) with mated plug and receptacle test fixtures. Measurement does not include test fixture calibration.

제품 사양

The HDMIC-TPA-PRRCE test adapter kit or test fixture kit facilitate HDMI CTS 1.4a Source and Sink compliance testing. The fixture kit also facilitates HDMI-C cable testing.

Key Electrical:

• 4.95 Gb/s and 10.2 Gb/s data rates supported
• Insertion loss < -3 dB @ 4.0 GHz mated plug and receptacle fixtures
• Return loss < -10dB @ 2.0 GHz mated plug and receptacle fixtures
• Differential Impedance 100 +/- 5 ohms (wo HDMI Connectors)
• Single Ended Impedance 50 +/- 2.5 ohms (wo HDMI Connectors)

Key Mechanical:

• High performance .086" Flexible SMA coaxial cables
• All critical components are enclosed to facilitate robustness
• Coax cables are enclosed in a rotation compliant strain relief
• Coax cables are axially retained in the fixture enclosure

Calibration Module:

• Use to compensate for test fixture losses and phase delay
• SHORT, OPEN, LOAD, 2X, and 1X Structures
• 2X THRU insertion loss < -3 dB @ 12.1 GHz
• 2X THRU return loss < -20dB @ 13.0 GHz
• Optional dual calibration cables available

Differential Return Loss (SDD11) with mated plug and receptacle test fixtures. Measurement does not include test fixture calibration.

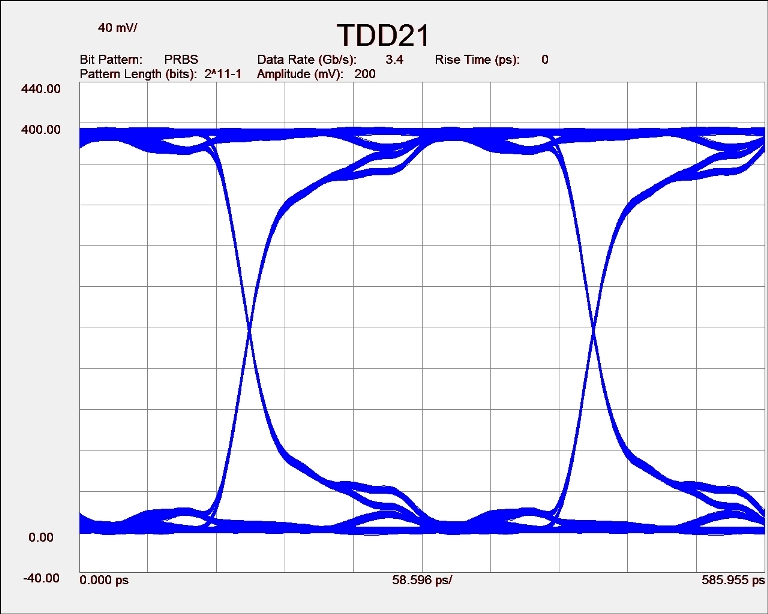

3.4 Gbs Eye (PRBS 2^11-1) (SDD21) with mated plug and receptacle test fixtures. Measurement does not include test fixture calibration.
