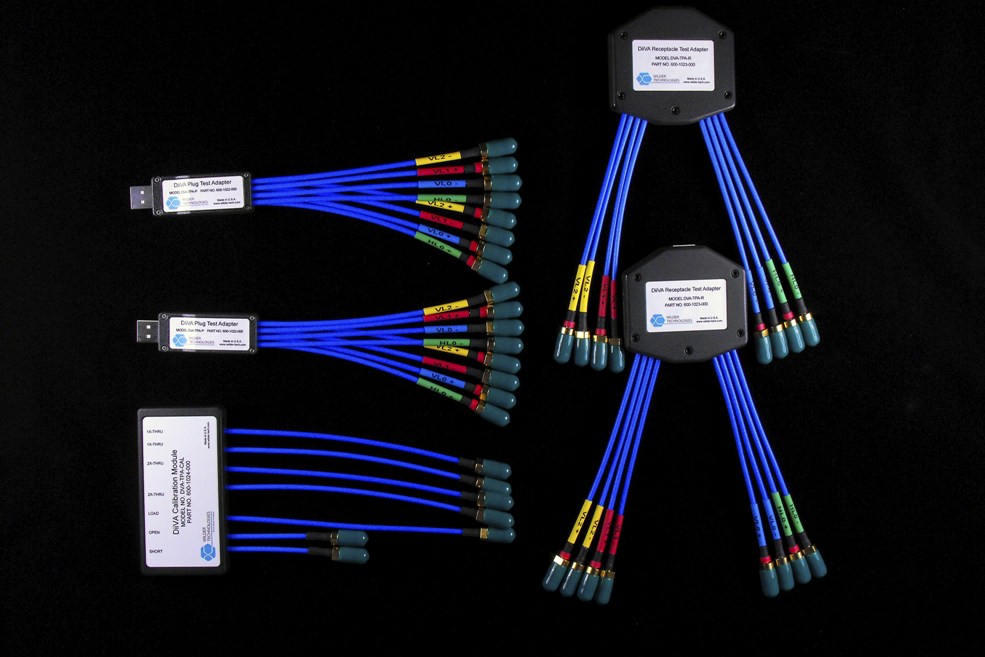

The DVA-TPA-PPRRC DiiVA test adapter or test
fixture kit facilitates Source and
Sink compliance testing for DiIVA devices.
Key Electrical:

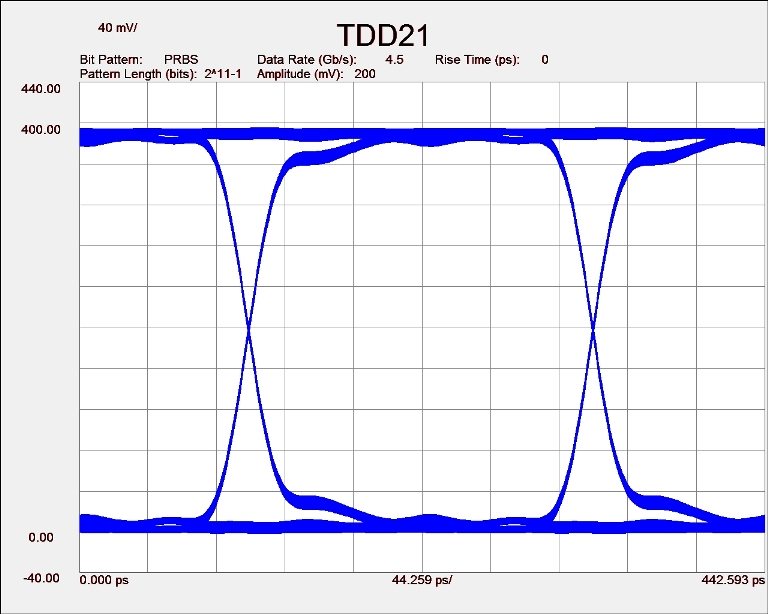

- 4.5 Gb/s data rates supported

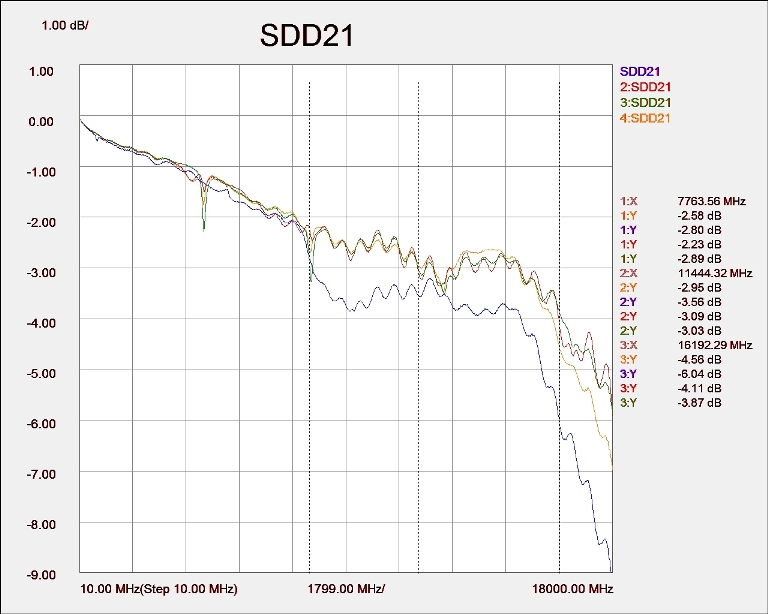

- Insertion loss < -3 dB @ 11 GHz mated plug and
receptacle fixtures

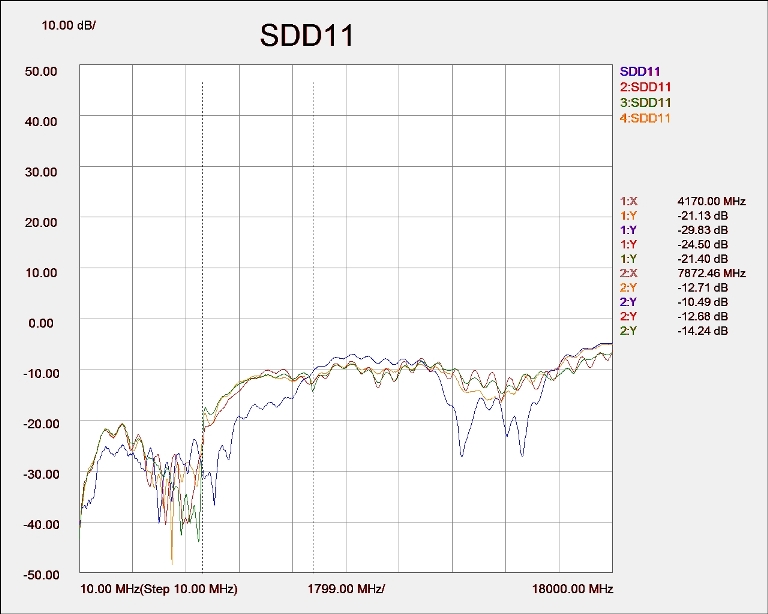

- Return loss < -20dB @ 4.2 GHz mated plug and
receptacle fixtures
- Differential Impedance 100 +/- 5 ohms
- Single Ended Impedance 50 +/- 2.5 ohms
Key Mechanical:
- High performance .086" Flexible SMA coaxial
cables
- All critical components are enclosed to facilitate
robustness
- Coax cables are enclosed in a rotation compliant
strain relief
- Coax cables are axially retained in the fixture
enclosure
Calibration Cables:
- Use to compensate for test fixture losses and phase
delay
- 1X & 2X SMA to SMA cables facilitate using SMA
Coax Standards
- 2X THRU insertion loss < -3.0 dB @ 18.7 GHz
- 2X THRU return loss < -20dB @ 13.2 GHz
|
