QSFP+ Test Adapters

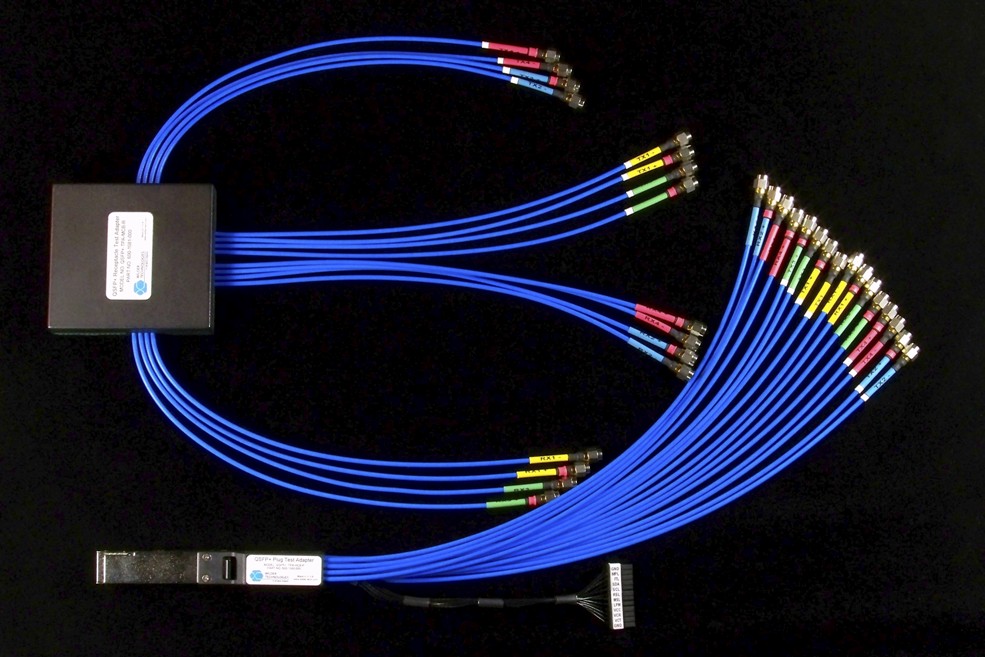

QSFP+ HCB and MCB Test Fixture (kit # 640-0587-000)

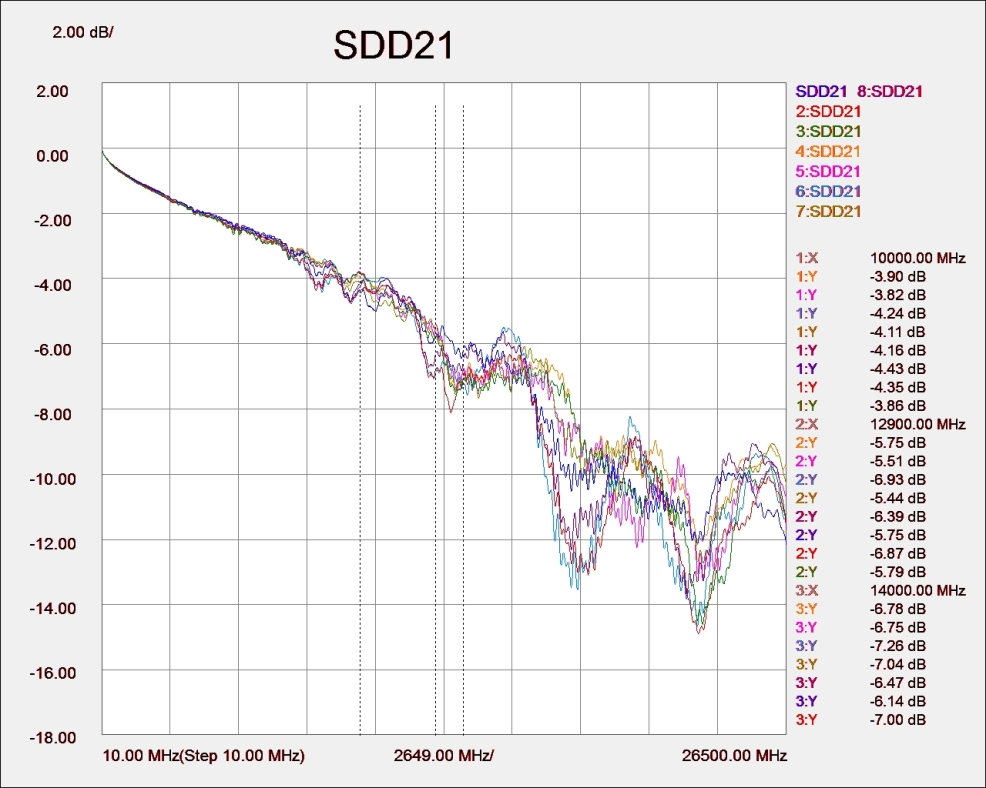

Differential Insertion Loss (SDD21) with mated plug and receptacle test fixture.

제품 사양

The QSFP+-TPA-PR test fixture kit or test fixture kit will facilitate the QSFP+ host and device complaince testing using our QSFP+ Host Compliance Board (HCB) test fixture and our Module Complaince Board (MCB) test fixture.

Key Electrical:

• 10.0 Gb/s data rate supported
• Insertion loss < -3 dB @ 6.8 GHz mated HCB and MCB fixtures
• Return loss < -10dB @ 10.5 GHz mated HCB and MCB fixtures
• Differential Impedance 100 +/- 5 ohms - excluding recep connector
• Single Ended Impedance 50 +/- 2.5 ohms- excluding recep connector

Key Mechanical:

• HCB Fixture emulates the form factor envelope of a QSFP+ cable assembly
• Long High Performance flexible coaxial cables with male SMAs facilitate the direct connection to T&M equipment

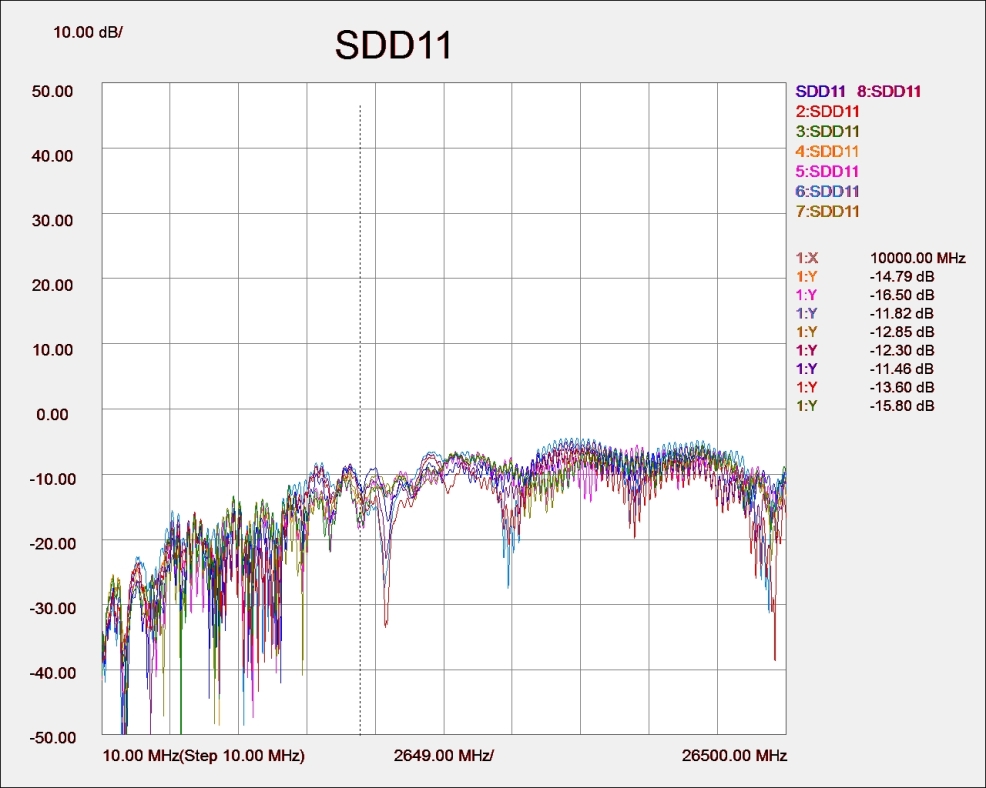

Differential Return Loss (SDD11) with mated plug and receptacle test fixtures.

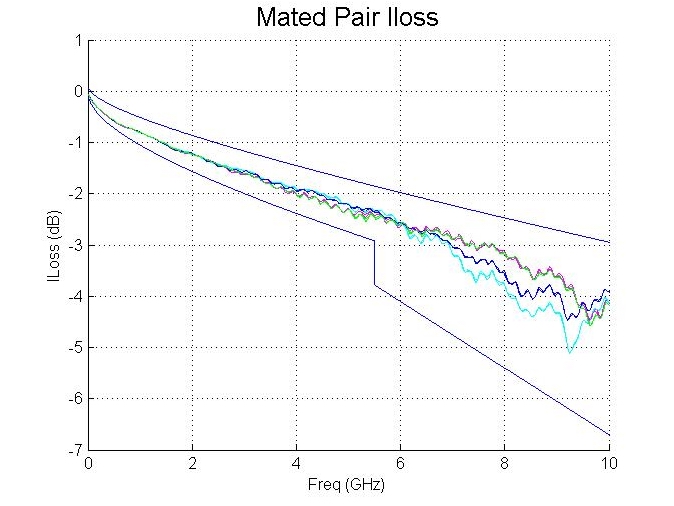

Mated HCB and MCB Tests Fixture IL Curve inside of the CR4 Specified IL Envelope for Mated Test Fixtures

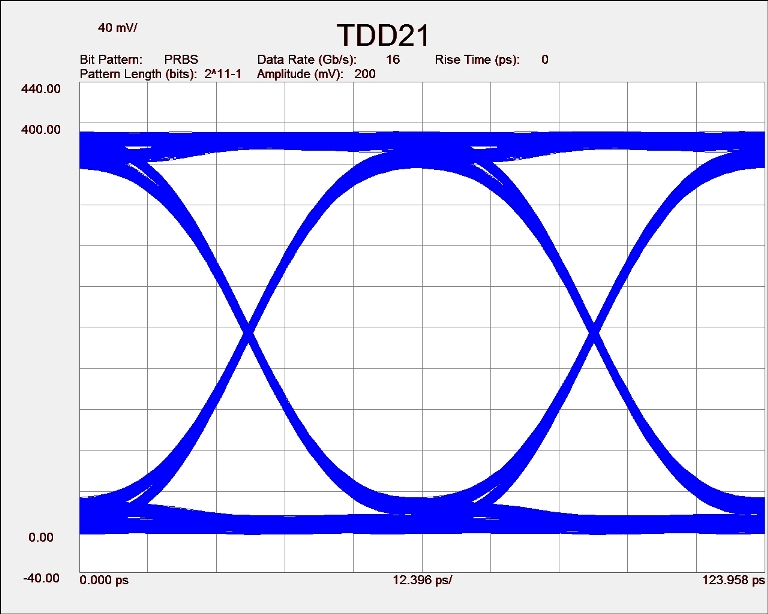

10.0 Gbs Eye (PRBS 2^11-1) (SDD21) with mated plug and receptacle test fixtures.
