Energy Efficient Ethernet (EEE) Test Fixture

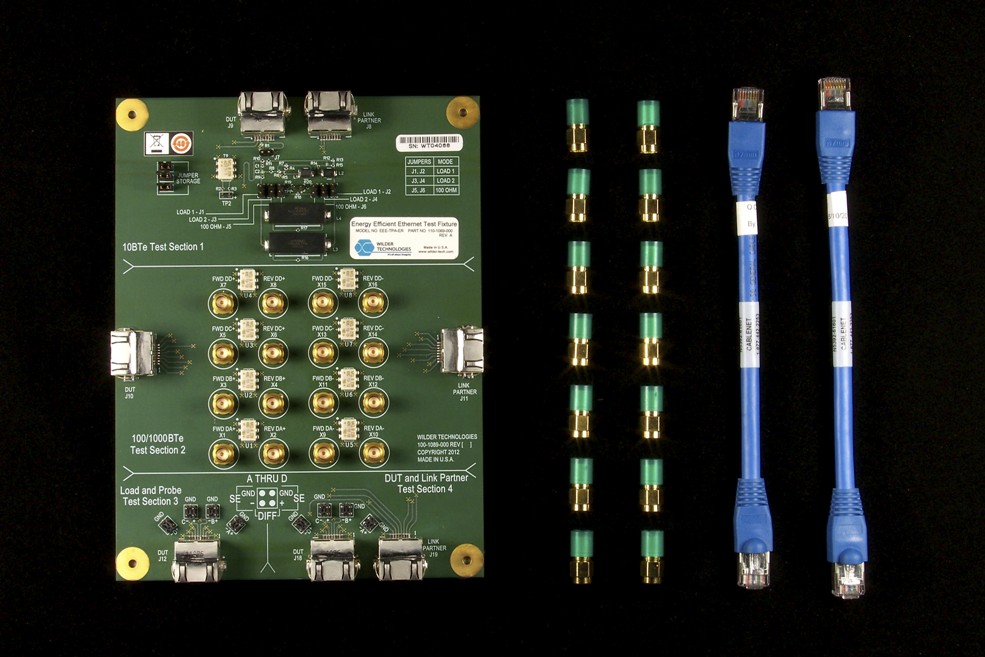

EEE Test Fixture (kit # 640-0581-001)

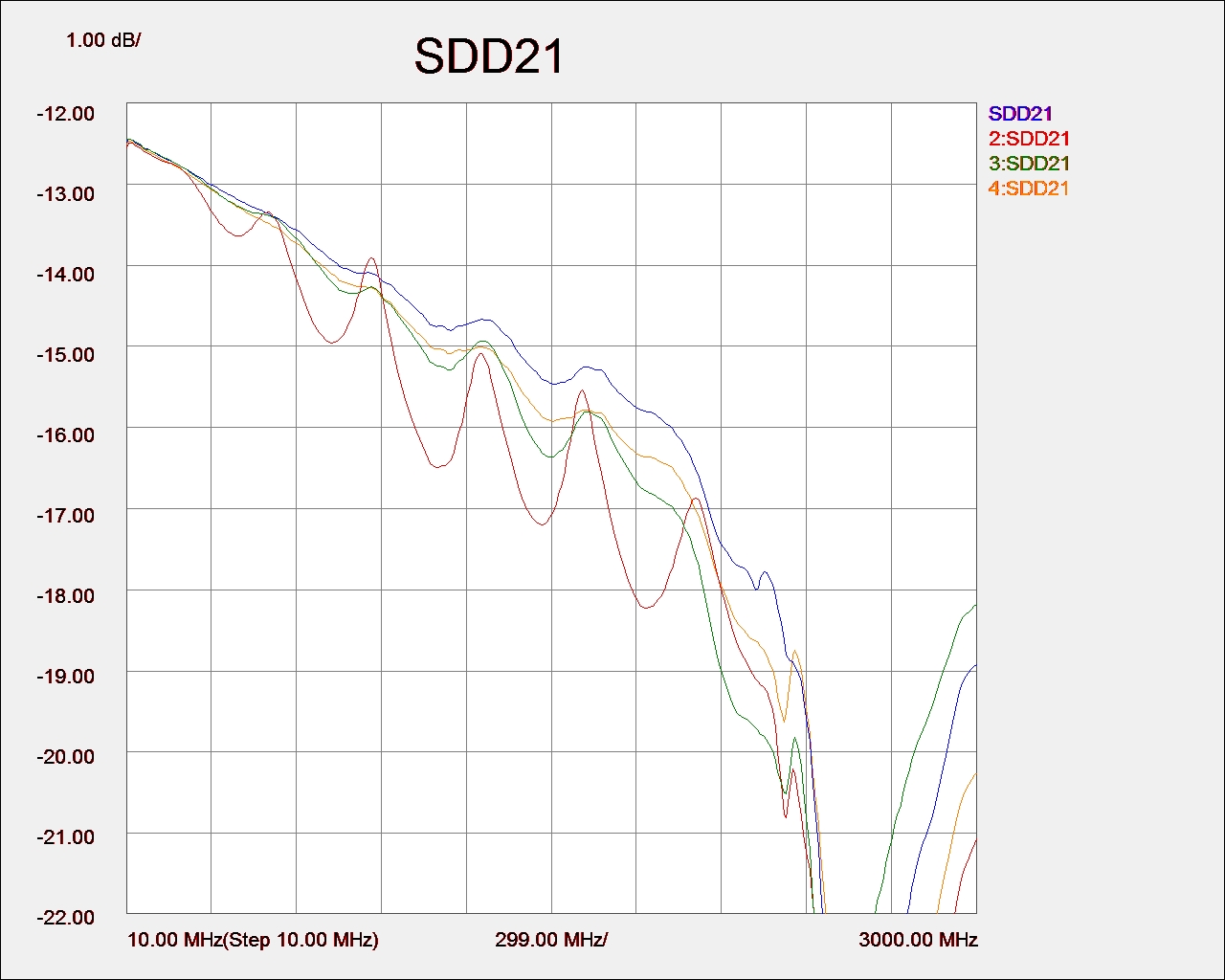

Differential Insertion Loss (SDD21) Thru Directional Couplers (SMA's) - Section 2. Without fixture De-Embedding.

제품 사양

The Energy Efficient Ethernet (EEE-TPA-ERK) test fixture Kit supports the 10BTe, 100BTe, and 1000BTe as specified in the IEEE 802.3az specification.

Key Electrical:

• 1.0 Gb/s data rate supported
• Intra-pair and Inter-pair skew < +/- 6ps
• Differential Impedance 100 +/- 10.0 ohms
• Single Ended Impedance 50 +/- 5.0 ohms

Key Mechanical:

• Designed for use with Agilent E2678A Probe (Sections 1, 3, and 4)
• Multiple Test Sections, Clearly Marked
• Jumper Settings Clearly Marked
• Jumpers and Park Positions Provided
• Rubber Standoffs Installed for Table-Top Use

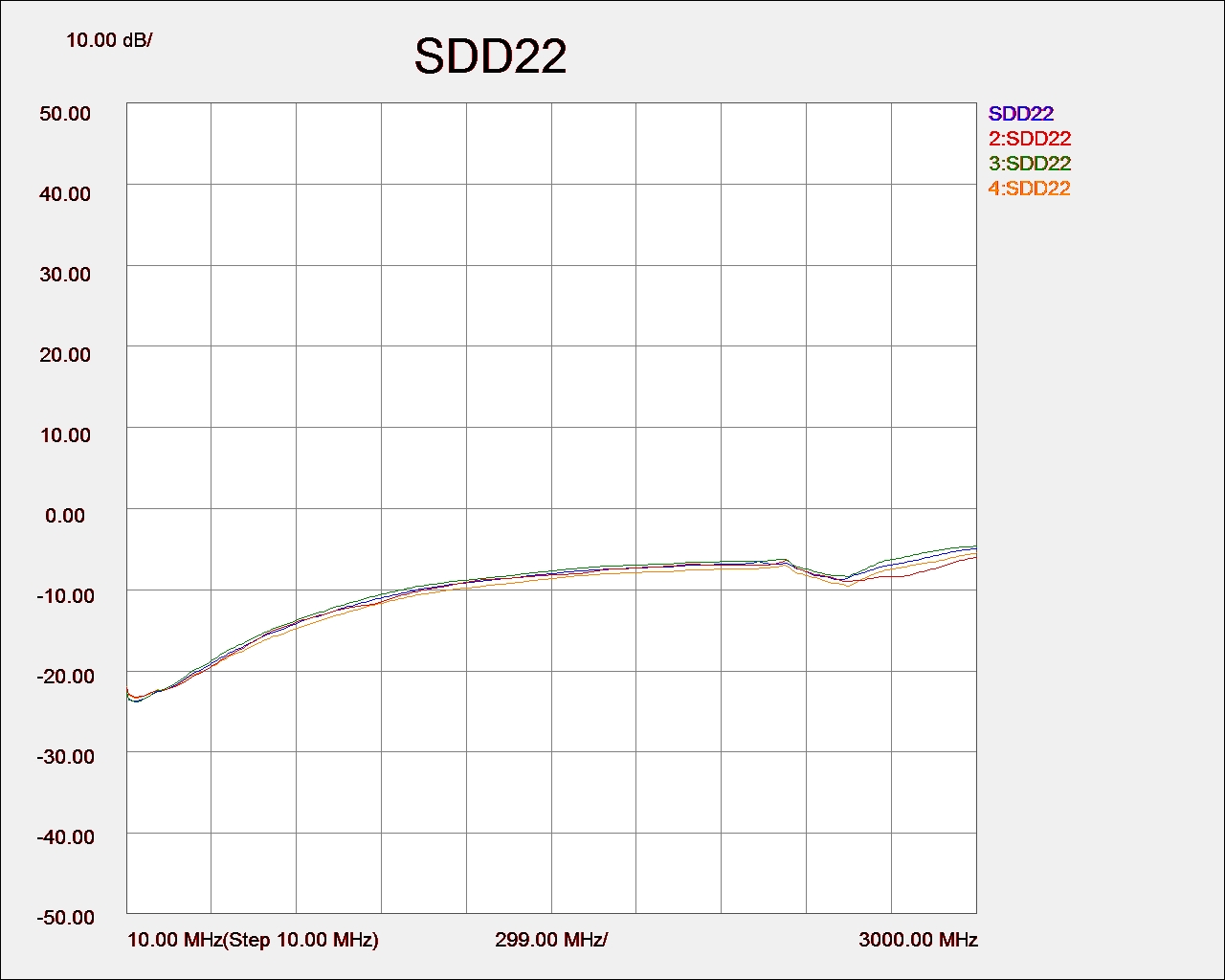

Differential Return Loss (SDD22) Thru Directional Couplers (SMA's) - Section 2. Without fixture De-Embedding.

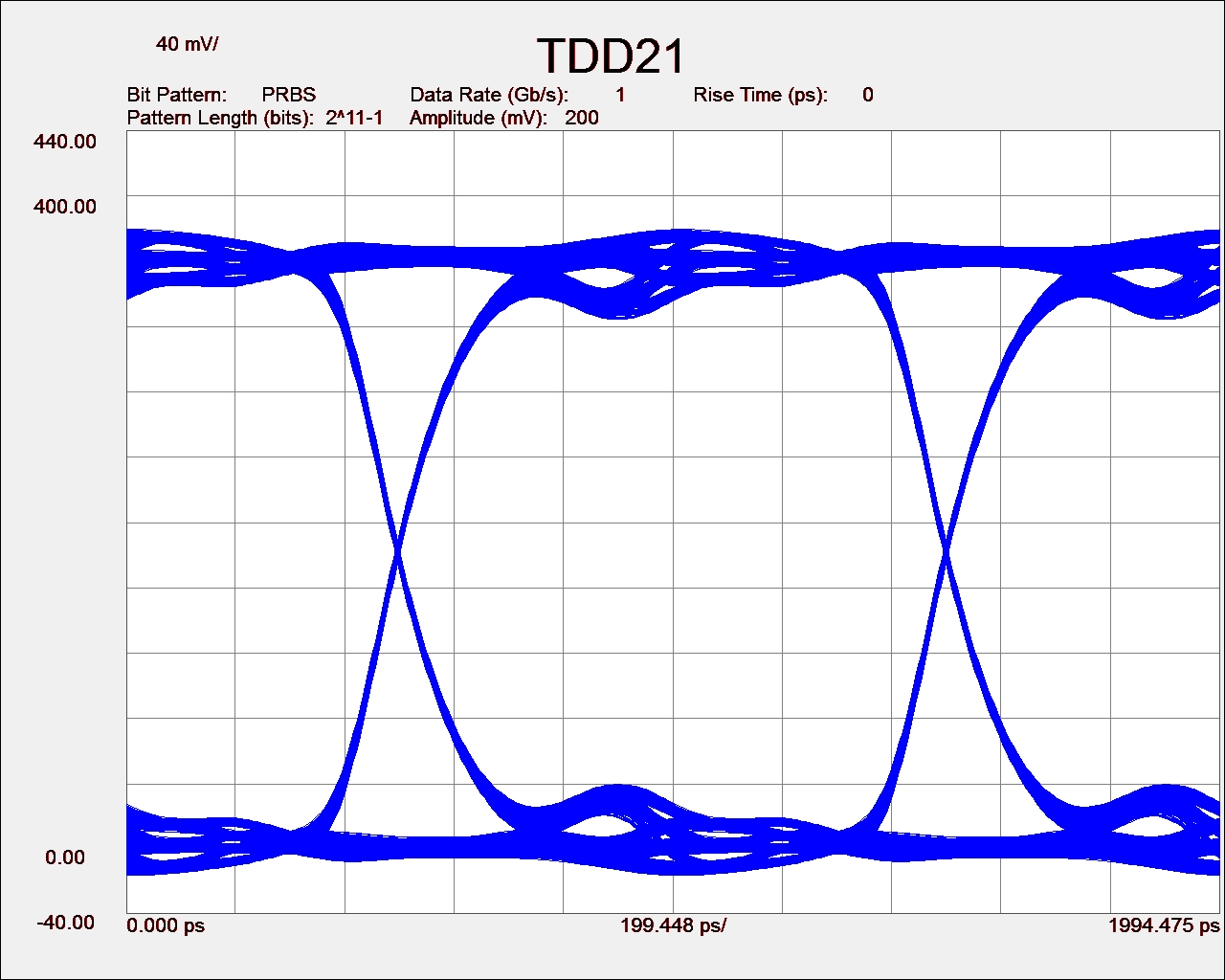

1.0 Gbs Eye (PRBS 2^11-1) (SDD21) Worst Case Channel B - Section 2. Without fixture De-Embedding.
