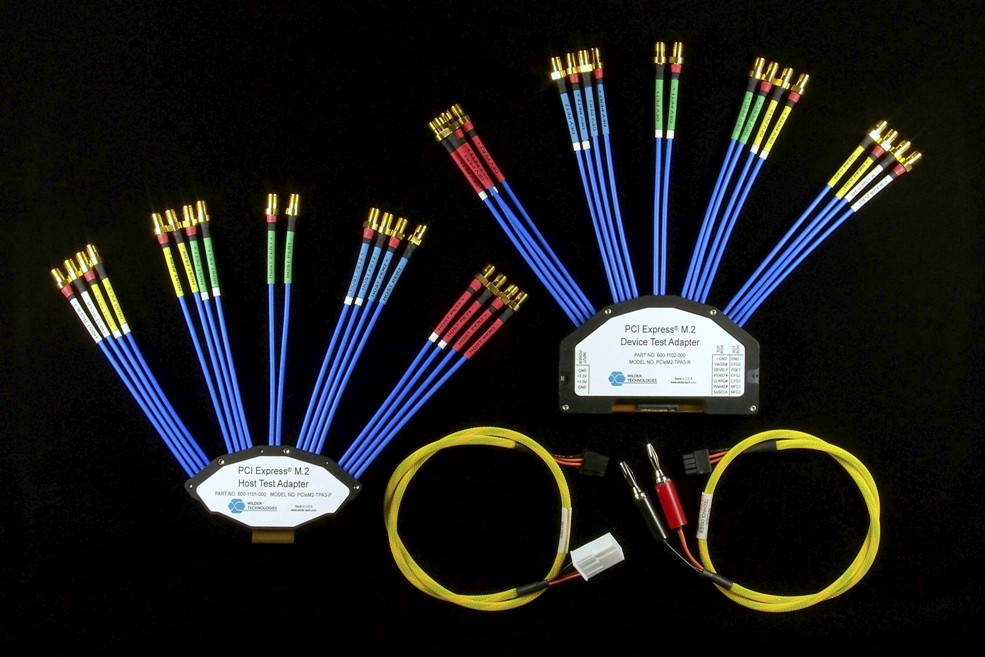

PCIe M.2 Socket 3 Test Adapter

PCIEM2-TPA3-PR (kit # 640-0668-000)

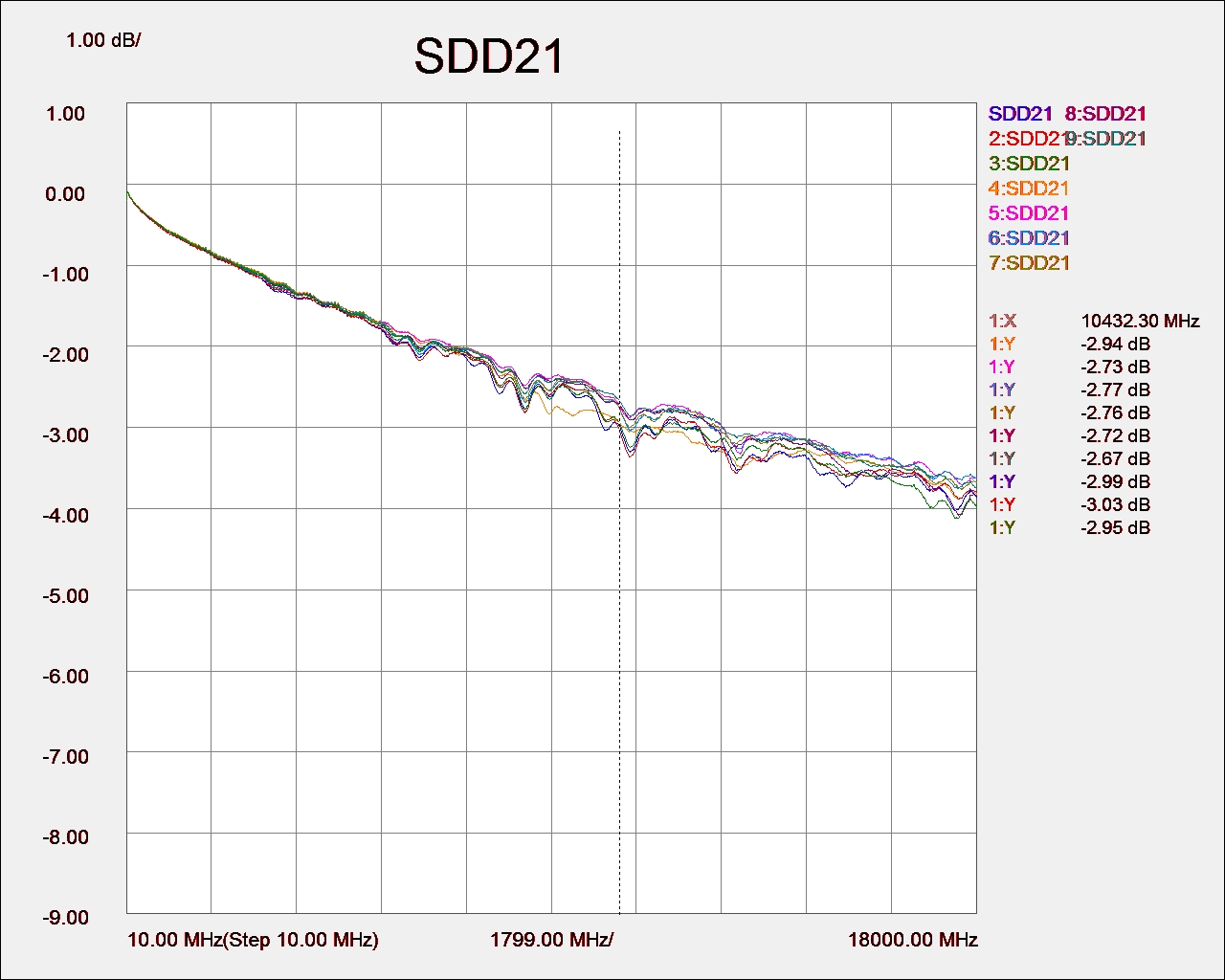

Differential Insertion Loss (SDD21) mated Plug and Receptacle fixtures. Measurement does not include test fixture calibration.

제품 사양

The PCIe M.2 Socket 3 test adapter or test fixture kit facilitates Device and Host compliance testing for PCIe M.2 Socket 3 Source and Sink devices.

Key Electrical:

• 5.0 Gb/s and 8.0 Gb/s data rates supported
• IL < -3 dB @ 10 GHz mated Plug and Receptacle fixtures
• RL < -20dB @ 5.4 GHz mated Plug and Receptacle fixtures
• Differential Impedance 100 +/- 5 ohmsSingle Ended Impedance 50 +/- 2.5 ohms

Key Mechanical:

• High performance .086" Flexible SMA coaxial cables
• All critical components are enclosed to facilitate robustness
• Coax cables are enclosed in a rotation compliant strain relief
• Coax cables are axially retained in the fixture enclosure

Differential Return Loss (SDD11) mated Plug and Receptacle fixtures. Measurement does not include test fixture calibration.

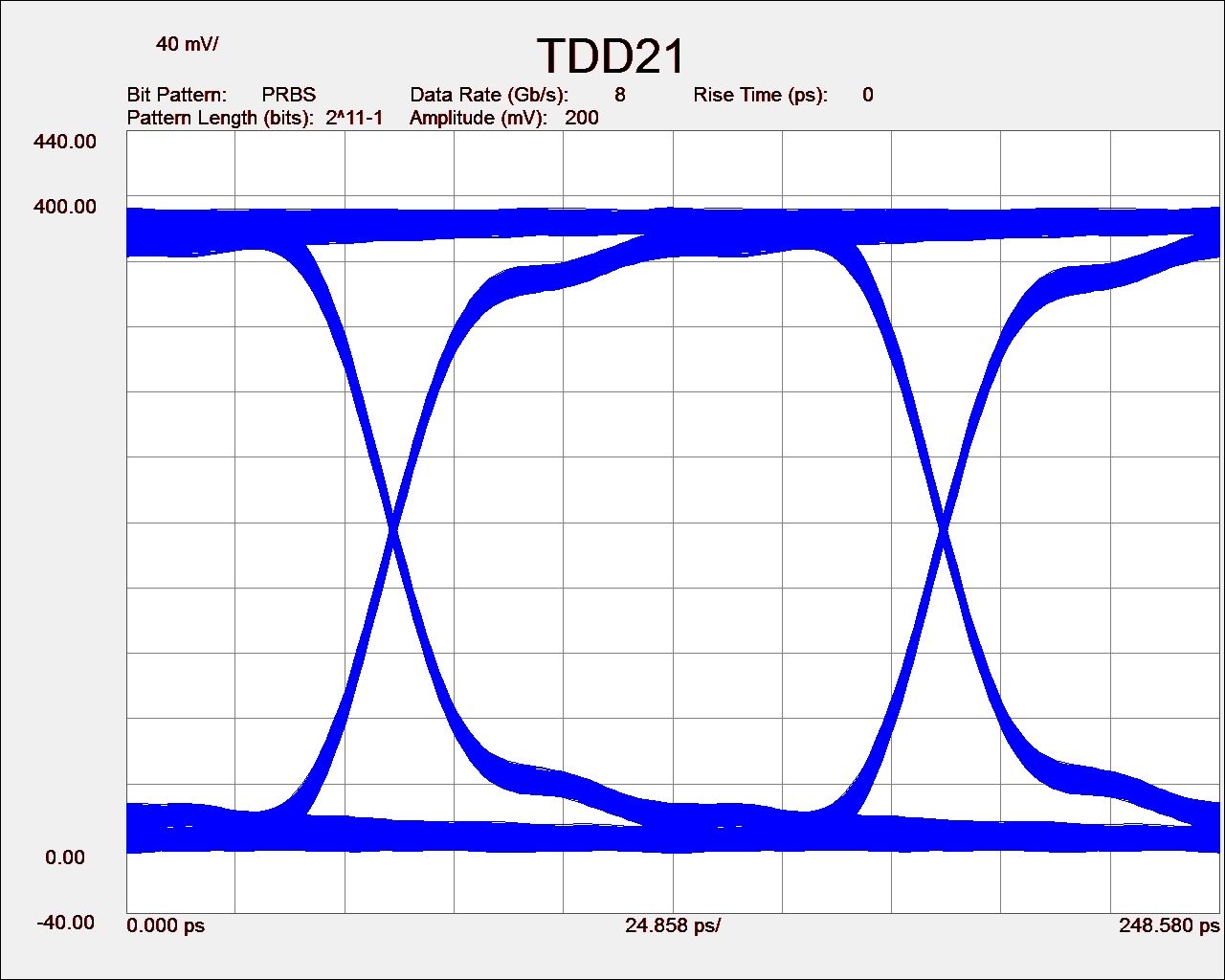

8.0 Gbs Eye (PRBS 2^11-1) (SDD21) mated Plug and Receptacle fixtures. Measurement does not include test fixture calibration.
