고속 디지털 신호 분석 전문업체인 독일 Bitifeye사의 제품으로서 여러 종류의 고속 디지털 신호를 쉽고 빠르게 자동측정 및 인증해 줍니다.(주)제이스는 Bitifeye사의 공식 국내 파트너로서 제품 공급과 기술 지원을 제공하고 있습니다.
The BitifEye 2100 series is a modular and scalable switching system. Five slots can be equipped with 2:1, 4:1 or 6:1 switch modules, with a bandwidth from DC up to 26.5 GHz.
We provide several application specific configurations, which are also connected to our ValiFrame / N5990A test automation software. Apart from this is also possible to customize your own switch system, and control it either manually or using your own control software.
> Application Specific Switch Systems
In order to use them together with our Test Automation Software ValiFrame / N5990A for receiver and cable tests you need to add BIT-2001-0002-0 “Switch System and DSGA Platform Support”
| Display Port

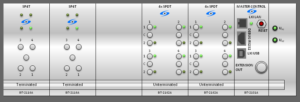

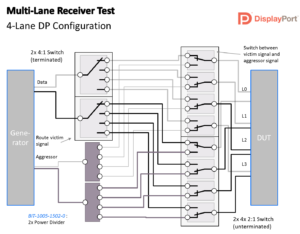

- DisplayPort RX/TX Test
-
- ◾ Two switch modules 4:1, DC to 26.5 GHz, terminated (BIT-4000-2114-0)
- ◾ Two switch modules 4x 2:1, DC to 26.5 GHz, unterminated (BIT-4000-2142-0)
- ◾ One Master Controller module
(BIT-4000-2101-0)

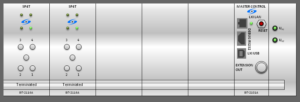

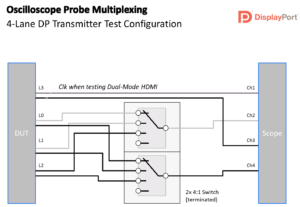

- DisplayPort TX Test
-
- ◾ Two switch modules 4:1, DC to 26.5 GHz, terminated (BIT-4000-2114-0)
- ◾ One Master Controller module
(BIT-4000-2101-0)
| HDMI

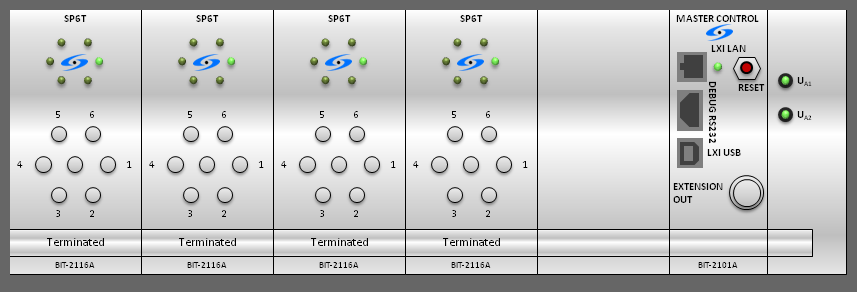

- HDMI Cable Test
-
Test 9x more HDMI 1.4 cables in the same time Avoid 32 manual reconnections for the next test sequence
- ◾ Four switch modules 6:1, DC to 26.5 GHz, terminated (BIT-4000-2116-0)
- ◾ One Master Controller module (BIT-4000-2101-0)

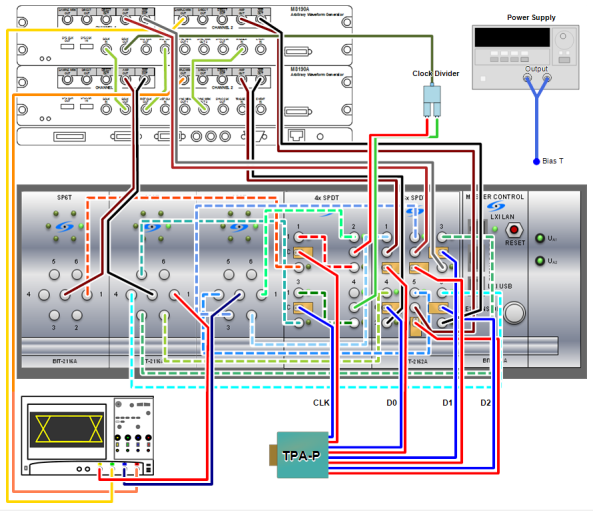

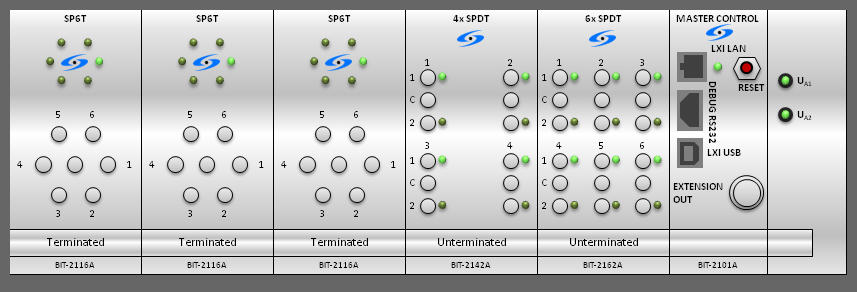

- HDMI Sink Test
-
- ◾ Switch Solution for M8190A only
- ◾ Three switch modules 6:1, DC to 26.5 GHz, terminated (BIT-4000-2116-0)
- ◾ One switch module 4x 2:1, DC to 26.5 GHz, unterminated (BIT-4000-2142-0)
- ◾ One switch module 6x 2:1, DC to 26.5 GHz, unterminated (BIT-4000-2162-0)
- ◾ One Master Controller module (BIT-4000-2101-0)

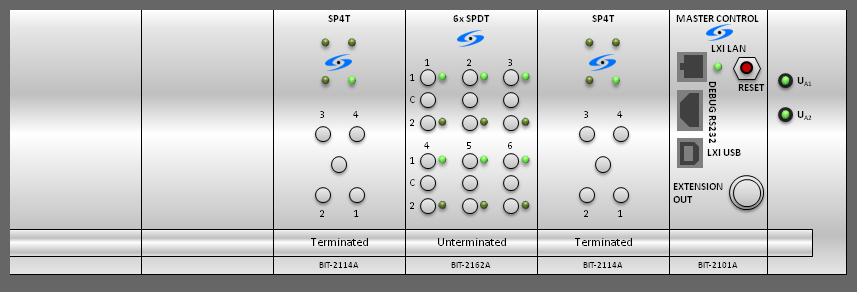

- HDMI Source Test
-
- ◾ Two switch modules 4:1, DC to 26.5 GHz, terminated (BIT-4000-2114-0)
- ◾ One switch module 6x 2:1, DC to 26.5 GHz, unterminated (BIT-4000-2162-0)
- ◾ One Master Controller module (BIT-4000-2101-0)
| PCIe

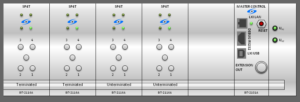

- PCIe 4 Lane Tx/RX Test
-
- ◾ Four switch modules 4:1, DC to 26.5 GHz, terminated (BIT-4000-2114-0)
- ◾ One Master Controller module (BIT-4000-2101-0)

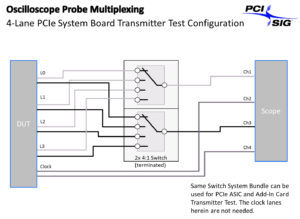

- PCIe 4 Lane Tx Test
-
- ◾ Two switch modules 4:1, DC to 26.5 GHz, terminated (BIT-4000-2114-0)
- ◾ One Master Controller module (BIT-4000-2101-0)

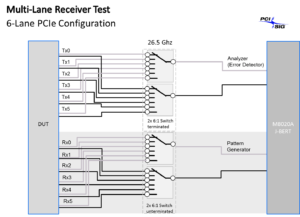

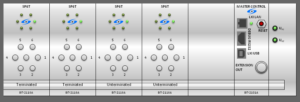

- PCIe 6 Lane Tx/RX Test
-
- ◾ Two switch modules 6:1, DC to 26.5 GHz, terminated (BIT-4000-2116-0)
- ◾ Two switch modules 6:1, DC to 26.5 GHz, unterminated (BIT-4000-2117-0)
- ◾ One Master Controller module (BIT-4000-2101-0)

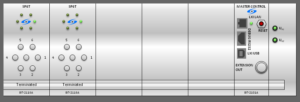

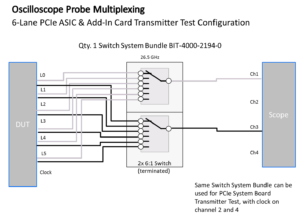

- PCIe 6 Lane Tx Test
-
- ◾ Two switch modules 6:1, DC to 26.5 GHz, terminated (BIT-4000-2116-0)
- ◾ One Master Controller module (BIT-4000-2101-0)

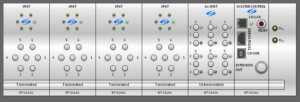

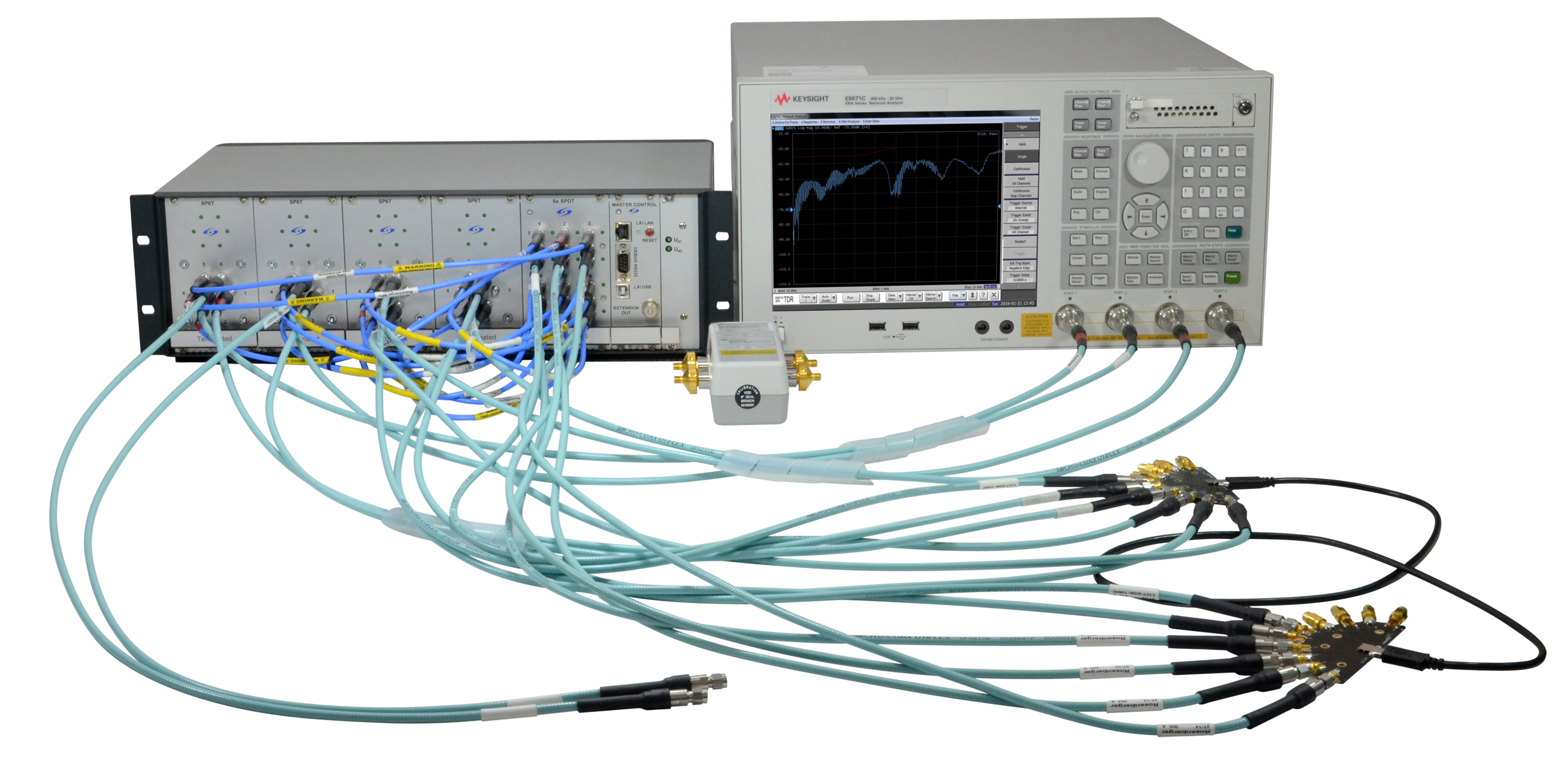

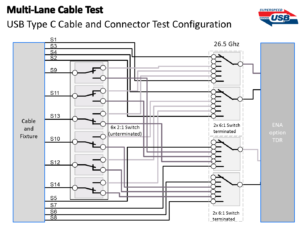

| USB Type-C/3.1Gen2 Cabletest
- PCIe 4 Lane Tx/RX Test
-
Test 4x more USB 3.1 or Type C cables in the same time by avoiding 17 manual re-connections for the test sequence.
- ◾ Four switch modules 6:1, DC to 26.5 GHz, terminated (BIT-4000-2116-0)
- ◾ One switch module 6x 2:1, DC to 26.5 GHz, unterminated (BIT-4000-2162-0)
- ◾ One Master Controller module (BIT-4000-2101-0)
> Customization of Switch Systems
‘To fullfill individual purposes in which a switch system is usefull, you can also configure your own system. Below you find the different modules. Alternatively you can use our online configuration tool
| Basic Options

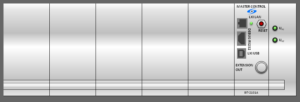

- 2100 Series Switch System Mainframe
-
Five switch module slots, one controller module slot (no modules included).
BitifEye Order Number: BIT-4000-2100-0
- BIT-2101A (Master Controller)
-
Master controller with LXI and USBTMC connectivity. This module is required at least once for every BIT-2100 series switch system.
BitifEye Order Number: BIT-4000-2101-0
- BIT-2102A(Extension Mainframe Controller)
-
Extension mainframe controller to expand a BIT-2100 series switch system over multiple frames.
BitifEye Order Number: BIT-4000-2102-0
- BIT-2105A
(Filler Panel)
-
Filler panel for unused slots.
| 2:1 Module Options
- BIT-2122A
(2x SPDT switch module),
unterminated
-
Switch module with two independent SPDT switches. All paths have an impedance of 50 Ohm and have a bandwidth of DC to 26.5 GHz.
The disconnected signal connector is left unterminated (one signal is always connected to the center pin).
Note that this module type can only be mounted in the 4th or 5th slot of the main frame.
BitifEye Order Number: BIT-4000-2122-0
- BIT-2142A
(4x SPDT switch module),
unterminated
-
Switch module with four independent SPDT switches. All paths have an impedance of 50 Ohm and have a bandwidth of DC to 26.5 GHz.
The disconnected signal connector is left unterminated (one signal is always connected to the center pin).
Note that this module type can only be mounted in the 4th or 5th slot of the main frame.
This module has the same characteristics as the BIT-4000-2122-0, but with two additional switches.
BitifEye Order Number: BIT-4000-2142-0
- BIT-2162A
(6x SPDT switch module),
unterminated
-
Switch module with six independent SPDT switches. All paths have an impedance of 50 Ohm and have a bandwidth of DC to 26.5 GHz.
The disconnected signal connector is left unterminated (one signal is always connected to the center pin).
Note that this module type can only be mounted in the 4th or 5th slot of the main frame.
This module has the same characteristics as the BIT-4000-2122-0, but with four additional switches.
BitifEye Order Number: BIT-4000-2162-0
| 4:1 Module Options
- BIT-2114A
(SP4T switch module),
terminated
-
Switch module with one SP4T switch. All paths have an impedance of 50 Ohm and have a bandwidth of DC to 26.5 GHz.
Disconnected signal connectors are terminated into GND via 50 Ohm. All paths can be disconnected simultaneously (note that the center connector will never be termianted).
BitifEye Order Number: BIT-4000-2114-0
- BIT-2114A
(SP4T switch module),
unterminated
-
Switch module with one SP4T switch. All paths have an impedance of 50 Ohm and have a bandwidth of DC to 26.5 GHz.
Disconnected signal connectors are left unterminated. All paths can be disconnected simultaneously.
Except for the termination, this module’s characteristics are the same as for the BIT-4000-2114-0.
BitifEye Order Number: BIT-4000-2115-0
| 6:1 Module Options
- BIT-2116A
(SP6T switch module),
terminated
-
Switch module with one SP6T switch. All paths have an impedance of 50 Ohm and have a bandwidth of DC to 26.5 GHz.
Disconnected signal connectors are terminated into GND via 50 Ohm. All paths can be disconnected simultaneously (note that the center connector will never be termianted).
Except for the number of switch positions, this module’s characteristics are the same as for the BIT-4000-2114-0.
BitifEye Order Number: BIT-4000-2116-0
- BIT-2116A
(SP6T switch module),
unterminated
-
Switch module with one SP6T switch. All paths have an impedance of 50 Ohm and have a bandwidth of DC to 26.5 GHz.
Disconnected signal connectors are left unterminated. All paths can be disconnected simultaneously.
Except for the termination, this module’s characteristics are the same as for the BIT-4000-2116-0.
BitifEye Order Number: BIT-4000-2117-0

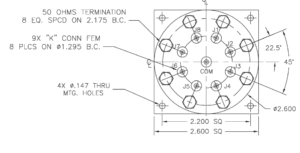

| 8:1 Module Options
- Under Development:
8:1 Switch Modules
for PCIe Gen4
-
Please notify us if you have any interest in this product
