MIPI I3C Design and Test

A sensor interface for mobile, IoT, and automotive system designs
| Probe Products | Digital IO Test Modules | Software Solutions |

견적 요청 자료실

| 제품 설명

MIPI® I3C℠ is a bus interface for interconnecting peripheral devices such as sensors to microcontrollers or applications processors. Building on the decades old I2C and SPI interfaces, MIPI I3C provides a modern, low-power, and unified interface that is manufactured using standard CMOS technology. Still using a 2-wire bus, it supports transfer speeds in excess of 10 Mbps, and it offers unique features such as dynamic master definition and dynamic addressing.

With I3C technology, we’re able to reach a much higher level of performance, albeit not without new design and validation challenges. For example, the high operating rates mean that test tools need to achieve timing resolutions in the nanosecond range while remaining cost-effective for mass deployment. What’s more, the dynamic nature of the bus creates a great deal of complexity in the associated state machines, necessitating the need for complete, hardware-based test tools. You’ll find no better I3C design and test instruments than those offered by Introspect Technology for addressing these challenges and more.

Industry Challenges

Introspect Capability

- High operating speeds when compared to I2C
- Complex state machines
- SDR and HDR operating modes
- Dynamic addressing and dynamic master selection
- Multiple bus configurations

- High-performance modules with nanosecond timing resolution
- High-performance and cost-effective probing solutions
- Device emulation of masters, slaves, or multi-mode end points
- Passive protocol analysis (sniffing) of any I3C bus
- Features for characterization and screening
- PurVue Analyzer™ : Brand new I3C protocol-triggered real-time oscilloscope compatible with SV6E-X Mid-Frequency Digital Test Module, thus eliminating the need for external active probes or benchtop oscilloscopes.

| Probe Products

	PV2 Universal Active Probe	Probing Solution with 8 GHz Bandwidth
	PV1 Universal Active Probe	Probing Solution with 5 GHz Bandwidth

| Digital IO Test Modules

	SV6E-X: SoundWire	Enabling high performance testing of SoundWire

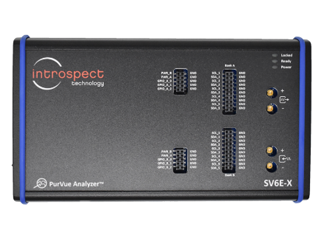

	SV6E-X Mid-Frequency Digital Test Module	Multi-protocol digital exerciser and analyzer with 200 MHz I/O speeds

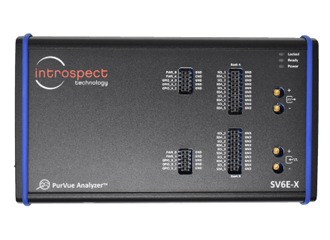

	PurVue Analyzer™	Highly Commended Embedded Real-time Oscilloscope for SV6E-X

| Software Solutions

	I3C Controller	Enabling high performance testing of SoundWire
	I3C Target	Multi-protocol digital exerciser and analyzer with 200 MHz I/O speeds
