제품 정보
Introspect 제품
| Industry Challenges | Introspect Capability |
|
- Flexible data rate support - High operating rates on very short transmission channels - Large lane count - Low power and high-speed operating modes - Dynamic, PHY-defined termination controls - Very low voltage levels with multi-level signaling - Demanding physical layer conformance tests that include dynamic jitter injection and receiver stressed eye specifications |
- Combo instruments that can address multiple PHY types - Any rate operation on all C Series, D Series, and E Series testers - Per wire skew and jitter injection capability - True receiver technology for forwarded clock (D-PHY), embedded clock (M-PHY), and three-phase embedded clock (C-PHY) links - True dynamic termination controls for low-power and high-speed operation - Complete set of conformance test suites |
|

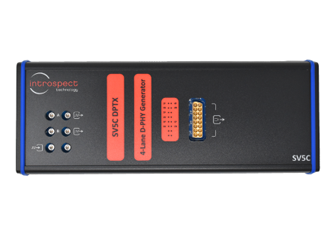

SV5C-DPTX MIPI D-PHY Generator | Ultra-Portable, High-Performance, MIPI D-PHY Generator up to 12.5 Gbps |
|

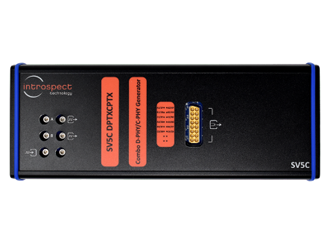

SV5C-DPTXCPTX MIPI D-PHY and C-PHY Generator | Combo generator for D-PHY up to v3.5 and C-PHY up to v2.0 |
|
SV3C-DPTXCPTX MIPI D-PHY and C-PHY Generator | Award-winning Combo MIPI D-PHY/C-PHY Generator — ultimate product for dual roadmap development |
|
SV3C-CPTX MIPI C-PHY Generator | Generator for MIPI CSI-2 up to v2.1, DSI-2 up to v1.1, DSI up to v1.3, for C-PHY up to v1.2 |
|
SV3C-DPTX MIPI D-PHY Generator | Ultra-portable, high-performance MIPI D-PHY generator up to 6.5 Gbps |
|
SV5C-DPRXCPRX MIPI D-PHY and C-PHY Analyzer | Combo MIPI D-PHY/C-PHY analyzer — ultimate product for dual roadmap development |
|
SV5C-CPRX MIPI C-PHY Analyzer | Ultra-portable, high-performance MIPI C-PHY analyzer |
|
SV5C-DPRX MIPI D-PHY Analyzer | Ultra-portable, high-performance MIPI D-PHY analyzer |
|
SV4E-DPRXG MIPI D-PHY Frame Grabber | Capture and analyze D-PHY CSI-2 sensor data |
|
|
SV4E-CPRXG MIPI C-PHY Frame Grabber | Highly Commended: Capture and analyze C-PHY CSI-2 sensor data |
|
|
SV4E-DPRXCPRX MIPI Receive Device Emulator | MIPI receive device emulator for D-PHY and C-PHY |
|
SV3C-DPRXCPRX MIPI D-PHY and C-PHY Analyzer | Receives traffic at a continuous range of data rates for both D-PHY and C-PHY |
|
SV3C-CPRX MIPI C-PHY Analyzer | Award-winning Ultra-portable, High-performance MIPI C-PHY Analyzer |
|
SV3C-DPRX MIPI D-PHY Analyzer | Exercise and validate MIPI-based transmitter ports up to 3.1 Gbps |
|
RSH2 Remote Sampling Head | 12 Active Probes Integrated Into a Clean, Shielded Form Factor |
|
RSH1 Remote Sampling Head | Clean Probing of Parallel Buses |
|
PV2 Universal Active Probe | Probing Solution with 8 GHz Bandwidth |
|
PV1 Universal Active Probe | Probing Solution with 5 GHz Bandwidth |
|

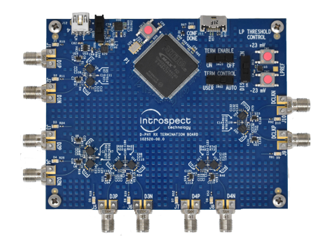

DRTB MIPI D-PHY Reference Termination Board | Enables Measurement of D-PHY Signals at v1.2 and v2.0 Symbol Rates |
|

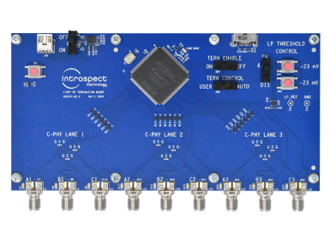

CRTB MIPI C-PHY Reference Termination Board | MIPI C-PHY Reference Termination Board |
|
D-PHY Transmitter | Ultra-Portable, High-Performance, MIPI D-PHY Generator up to 12.5 Gbps |
|
|
C-PHY Transmitter | Ultra-Portable, High-Performance, MIPI D-PHY Generator up to 12.5 Gbps |
|
|
C-PHY Receiver | Ultra-Portable, High-Performance, MIPI D-PHY Generator up to 12.5 Gbps |
| Discover the SV4D Direct Attach MIPI Test Module |
| Advanced Topics in C-PHY |
| Performing Automated C-PHY Voltage Sweeps Using the SV3C |
| Basic C-PHY Pattern Generation Using the Introspect SV3C |
| C-PHY Global Timing Parameter Control in the SV3C |
| Controlling D-PHY Parameters Using the SV3C DPTX D-PHY Generator |
| Introspect’s MIPI D-PHY Receiver CTS Application |
| Video Frame Generation Using the SV3C DPTX MIPI D-PHY Generator |
| Understanding Video Frames Using the SV3C DPTX D-PHY Generator |
| Understanding Line Time & Frame Rate Using the SV3C DPTX D-PHY Generator |
| SV1D MIPI D-PHY Interoperability |
| Discover the PV1 Active Probe |
| SV5C-DPTXCPTX Video Presentation |
| SV5C-DPRXCPRX: High-Performance Combo MIPI D-PHY and C-PHY Analyzer |
| PV2 8 GHz Active Probe Introduction |
