제품 정보
Introspect 제품
| Industry Challenges | Introspect Capability |
|
- Lane distribution and merging - Ultra high resolution packet/frame testing and analysis - High frame rates and high transmission bandwidth - Large number of virtual channels - Advanced features for long reach and transport efficiency - Complex conformance test requirements |
- Combo instruments that support CSI-2 on multiple physical layers - Optimized tools that achieve the theoretical CSI-2 frame rates and bandwidth - Deep capture memory and infinite-duration, real-time packet error analysis - Complete support for advanced CSI-2 features in versions 1.3, 2.0, 2.1, and upcoming versions - Conformance test suites for transmitter and receiver links |
|

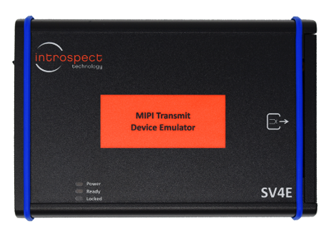

SV4E-DPTXCPTX MIPI Transmit Device Emulator | Transmit Device Emulator for C-PHY and D-PHY |
|

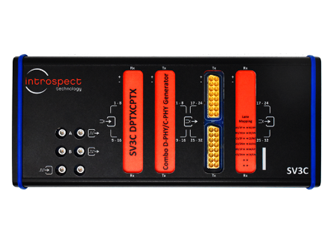

SV3C-DPTXCPTX MIPI D-PHY and C-PHY Generator | Award-winning Combo MIPI D-PHY/C-PHY Generator — ultimate product for dual roadmap development |
|

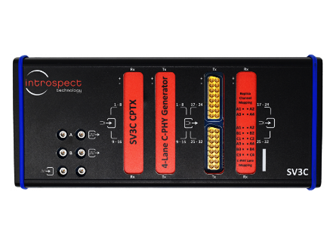

SV3C-CPTX MIPI C-PHY Generator | Generator for MIPI CSI-2 up to v2.1, DSI-2 up to v1.1, DSI up to v1.3, for C-PHY up to v1.2 |
|

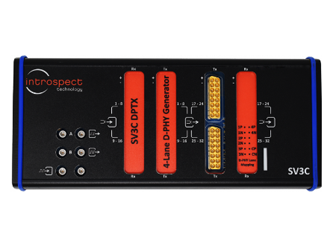

SV3C-DPTX MIPI D-PHY Generator | Ultra-portable, high-performance MIPI D-PHY generator up to 6.5 Gbps |
|

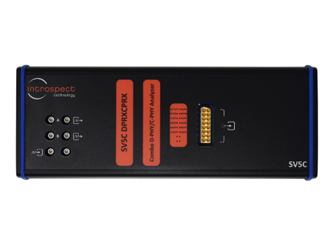

SV5C-DPRXCPRX MIPI D-PHY and C-PHY Analyzer | Combo MIPI D-PHY/C-PHY analyzer — ultimate product for dual roadmap development |
|

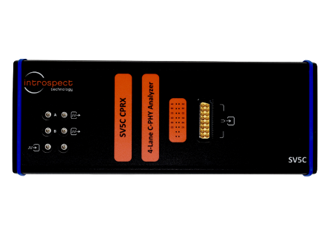

SV5C-CPRX MIPI C-PHY Analyzer | Ultra-portable, high-performance MIPI C-PHY analyzer |
|

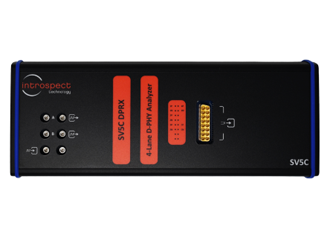

SV5C-DPRX MIPI D-PHY Analyzer | Ultra-portable, high-performance MIPI D-PHY analyzer |
|
SV4E-DPRXG MIPI D-PHY Frame Grabber | Capture and analyze D-PHY CSI-2 sensor data |
|
|
SV4E-CPRXG MIPI C-PHY Frame Grabber | Highly Commended: Capture and analyze C-PHY CSI-2 sensor data |
|
SV4E MIPI CSI-2 to HDMI Converter | Track long-term streaming behavior of CSI-2 camera links |
|
|

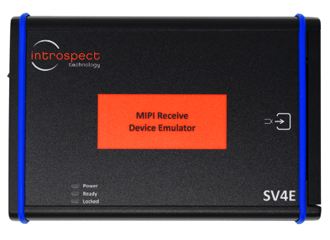

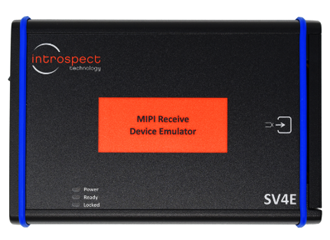

SV4E-DPRXCPRX MIPI Receive Device Emulator | MIPI receive device emulator for D-PHY and C-PHY |
|

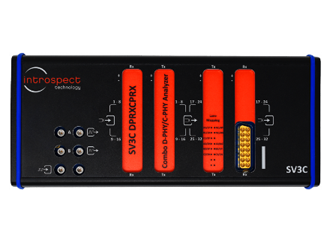

SV3C-DPRXCPRX MIPI D-PHY and C-PHY Analyzer | Receives traffic at a continuous range of data rates for both D-PHY and C-PHY |
|
|
SV4E-CPRX Receive Device Emulator for MIPI C-PHY | Receive device emulator for MIPI C-PHY |
|
|
SV4E-DPRX Receive Device Emulator for MIPI D-PHY | Receive device emulator for MIPI C-PHY |
|

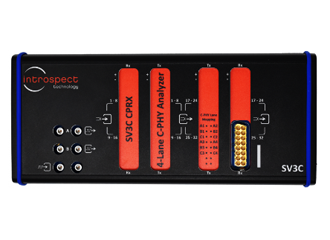

SV3C-CPRX MIPI C-PHY Analyzer | Award-winning Ultra-portable, High-performance MIPI C-PHY Analyzer |
|

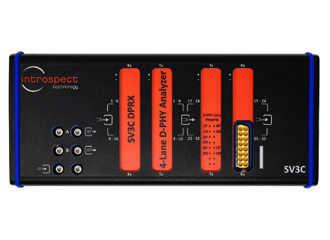

SV3C-DPRX MIPI D-PHY Analyzer | Exercise and validate MIPI-based transmitter ports up to 3.1 Gbps |
|

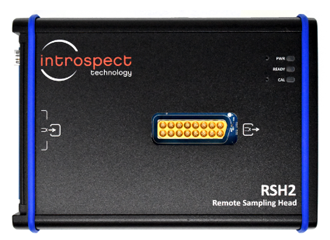

RSH2 Remote Sampling Head | 12 Active Probes Integrated Into a Clean, Shielded Form Factor |
|

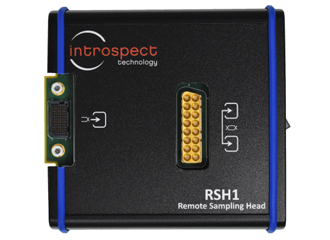

RSH1 Remote Sampling Head | Clean Probing of Parallel Buses |
|
PV2 Universal Active Probe | Probing Solution with 8 GHz Bandwidth |
|
PV1 Universal Active Probe | Probing Solution with 5 GHz Bandwidth |
|

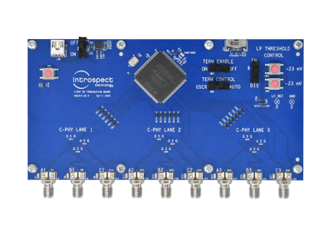

CRTB MIPI C-PHY Reference Termination Board | MIPI C-PHY Reference Termination Board |
|
CSI-2 Transmitter | 12 Active Probes Integrated Into a Clean, Shielded Form Factor |
|
|
CSI-2 Receiver | 12 Active Probes Integrated Into a Clean, Shielded Form Factor |
| Discover the SV4D Direct Attach MIPI Test Module |
| Visualizing Multiple MIPI CSI-2 Streams Using the Introspect SV4E |
| Characterizing CSI-2 Image Sensors |
| SV5C-DPRXCPRX: High-Performance Combo MIPI D-PHY and C-PHY Analyzer |
