Manufacturing Test

| 제품 설명

Industry Challenges	Introspect Capability
- At-speed functional test - Multi-site test - Concurrent, multi-protocol test - Test vector processing and fail map analysis	- Up to 56 Gbps test pattern generation and analysis - Up to 32 channels per test module - Any rate programming, and per-channel analog controls - Instrument-grade, calibrated timing and voltage controls - Jitter injection and jitter measurement in production

| SLVS-EC Analyzers

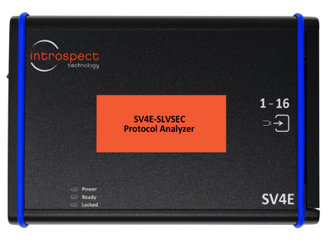

SV4E-SLVSEC Protocol Analyzer

16-Lane, 6.5 Gbps SLVS-EC Protocol Analyzer

| MIPI Generators

	SV4E-DPTXCPTX MIPI Transmit Device Emulator	Transmit Device Emulator for C-PHY and D-PHY
	SV3C-CPTX MIPI C-PHY Generator	Generator for MIPI CSI-2 up to v2.1, DSI-2 up to v1.1, DSI up to v1.3, for C-PHY up to v1.2
	SV3C-DPTX MIPI D-PHY Generator	Ultra-portable, high-performance MIPI D-PHY generator up to 6.5 Gbps

| MIPI Analyzers

	SV5C-DPRXCPRX MIPI D-PHY and C-PHY Analyzer	Combo MIPI D-PHY/C-PHY analyzer — ultimate product for dual roadmap development
	SV5C-CPRX MIPI C-PHY Analyzer	Ultra-portable, high-performance MIPI C-PHY analyzer
	SV5C-DPRX MIPI D-PHY Analyzer	Ultra-portable, high-performance MIPI D-PHY analyzer
	SV4E-DPRXG MIPI D-PHY Frame Grabber	Capture and analyze D-PHY CSI-2 sensor data
	SV4E-CPRXG MIPI C-PHY Frame Grabber	Highly Commended: Capture and analyze C-PHY CSI-2 sensor data
	SV4E MIPI CSI-2 to HDMI Converter	Track long-term streaming behavior of CSI-2 camera links
	SV4E-DPRXCPRX MIPI Receive Device Emulator	MIPI receive device emulator for D-PHY and C-PHY
	SV3C-DPRXCPRX MIPI D-PHY and C-PHY Analyzer	Receives traffic at a continuous range of data rates for both D-PHY and C-PHY
	SV4E-CPRX Receive Device Emulator for MIPI C-PHY	Receive device emulator for MIPI C-PHY
	SV4E-DPRX Receive Device Emulator for MIPI D-PHY	Receive device emulator for MIPI C-PHY
	SV3C-CPRX MIPI C-PHY Analyzer	Award-winning Ultra-portable, High-performance MIPI C-PHY Analyzer
	SV3C-DPRX MIPI D-PHY Analyzer	Exercise and validate MIPI-based transmitter ports up to 3.1 Gbps

| Probe Products

PV2 Universal Active Probe

Probing Solution with 8 GHz Bandwidth

| Test Modules

	SV4D-DPTX Direct Attach MIPI Test Module	Ultra-compact direct attach MIPI test module with 4 DPTX ports
	SV4D-CPRXDPRX Direct Attach MIPI Test Module	Ultra-compact direct-attach MIPI test module with 2 CPRX/DPRX ports

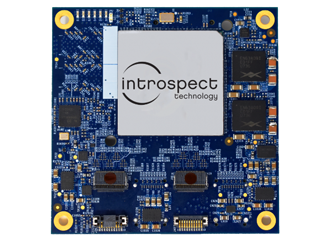

	SV3D-14 Direct Attach SerDes Test Module	Ultra-compact 32 lane test module for mounting on any application board (14.1 Gbps)
	SV3D-12 Direct Attach SerDes Test Module	Ultra-compact 32 lane test module for mounting on any application board (12.5 Gbps)
	SV3D-8 Direct Attach SerDes Test Module	Ultra-compact 32 lane test module for mounting on any application board (8 Gbps)
	SV3D-4	Ultra-compact 32 lane test module for mounting on any application board (4 Gbps)

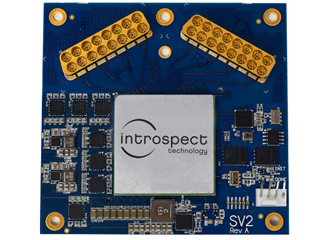

	SV2D-32 Direct Attach SerDes Test Module	High-performance tester that mounts directly on any load board (32 Gbps)
	SV2D-28 Direct Attach SerDes Test Module	High-performance tester that mounts directly on any load board (28 Gbps)
	SV1D-14 Direct Attach SerDes Test Module	Mounts directly on an ATE load board (14 Gbps)
	SV1D-12 Direct Attach SerDes Test Module	Highly integrated tester that mounts directly on an ATE load board (12.5 Gbps)
	SV1D-8 Direct Attach SerDes Test Module	Mounts directly on an ATE load board (8 Gbps)
	SV1D-4	Highly integrated tester that mounts directly on an ATE load board (4 Gbps)

| Video Demo

Discover the SV4D Direct Attach MIPI Test Module

DDIC Testing for Next-Generation OLED Display Panels

| 자료실

제    목	파일 다운로드
[제품 사양서] SV6E-X 제품 사양서	PDF
DDR5 DIMM 메모리의 기능테스트(Functional Test) 방법을 소개합니다.	PDF
DDR SPD Hub Device 검증방법 알아보기	PDF
[소개자료] High Speed Digital 솔루션의 강자 Introspect를 소개합니다.	PDF
