Analog Test and Measurement

| 제품 설명

Industry Challenges	Introspect Capability
- Mixed-signal analog and digital chains - System-level interaction between analog and digital - Very low voltage levels - Very low noise levels	- SerDes tools for generating or receiving real-time data converter traffic - Low voltage probing solutions - Sophisticated software tools for mixed-domain time and frequency analysis - PurVue Analyzer™: Brand new I3C protocol-triggered real-time oscilloscope compatible with SV4E-I3C I3C Test and Debug Module, thus eliminating the need for external active probes or benchtop oscilloscopes.

| DDR & GDDR Exercisers

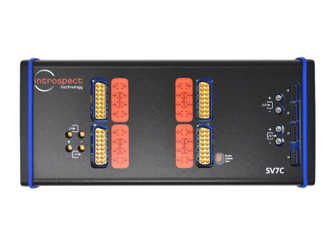

SV7C Personalized SerDes Tester

All-in-one, phase-aligned bit error rate tester (BERT) and protocol exerciser and analyzer

| Serial & Parallel BERTs

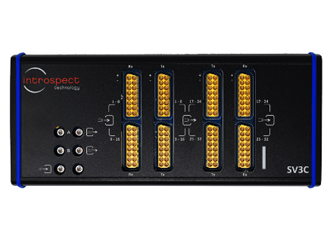

	SV3C-4 Personalized SerDes Tester	Highly parallel tester for DDR, clock forwarded, and embedded clock applications up to 4 Gbps

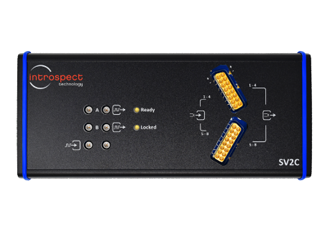

	SV2C-32 Personalized SerDes Tester	8-Lane, 32 Gbps for high-end SerDes applications

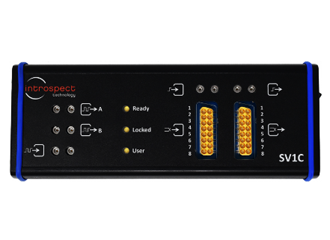

	SV1C-14 Personalized SerDes Tester	SerDes tester for clock forwarded and embedded clock applications up to 14.1 Gbps
	SV1C-12 Personalized SerDes Tester	SerDes tester for clock forwarded and embedded clock applications up to 12.5 Gbps
	SV1C-8 Personalized SerDes Tester	SerDes tester for applications up to 8 Gbps
	SV1C-4 Personalized SerDes Tester	SerDes tester for applications up to 4 Gbps

| Probe Products

	RSH2 Remote Sampling Head	12 Active Probes Integrated Into a Clean, Shielded Form Factor
	RSH1 Remote Sampling Head	Clean Probing of Parallel Buses
	PV2 Universal Active Probe	Probing Solution with 8 GHz Bandwidth
	PV1 Universal Active Probe	Probing Solution with 5 GHz Bandwidth

| Test Modules

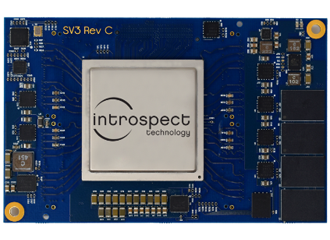

	SV3D-14 Direct Attach SerDes Test Module	Ultra-compact 32 lane test module for mounting on any application board (14.1 Gbps)
	SV3D-12 Direct Attach SerDes Test Module	Ultra-compact 32 lane test module for mounting on any application board (12.5 Gbps)
	SV3D-8 Direct Attach SerDes Test Module	Ultra-compact 32 lane test module for mounting on any application board (8 Gbps)
	SV3D-4	Ultra-compact 32 lane test module for mounting on any application board (4 Gbps)

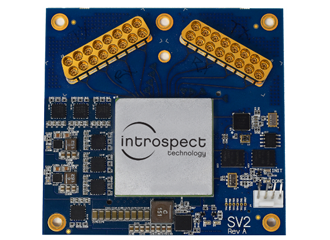

	SV2D-32 Direct Attach SerDes Test Module	High-performance tester that mounts directly on any load board (32 Gbps)

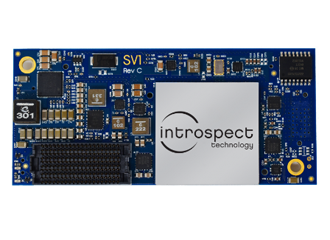

	SV1D-4	Highly integrated tester that mounts directly on an ATE load board (4 Gbps)

| Digital IO Test Modules

PurVue Analyzer™

Highly Commended Embedded Real-time Oscilloscope for SV6E-X

| Video Demo

PV2 8 GHz Active Probe Introduction

| 자료실

제    목	파일 다운로드
[동영상] SV5C-DPRXCPRX: High-Performance Combo MIPI D-PHY and C-PHY Analyzer	AVI
[동영상] SV5C-DPTXCPTX Combo MIPI D-PHY/C-PHY Generator	AVI
[Introspect] MIPI D-PHY/C-PHY 솔루션을 소개해 드립니다.	PDF
[제품 사양서] SV6E-X 제품 사양서	PDF
DDR5 DIMM 메모리의 기능테스트(Functional Test) 방법을 소개합니다.	PDF
DDR SPD Hub Device 검증방법 알아보기	PDF
[소개자료] High Speed Digital 솔루션의 강자 Introspect를 소개합니다.	PDF
