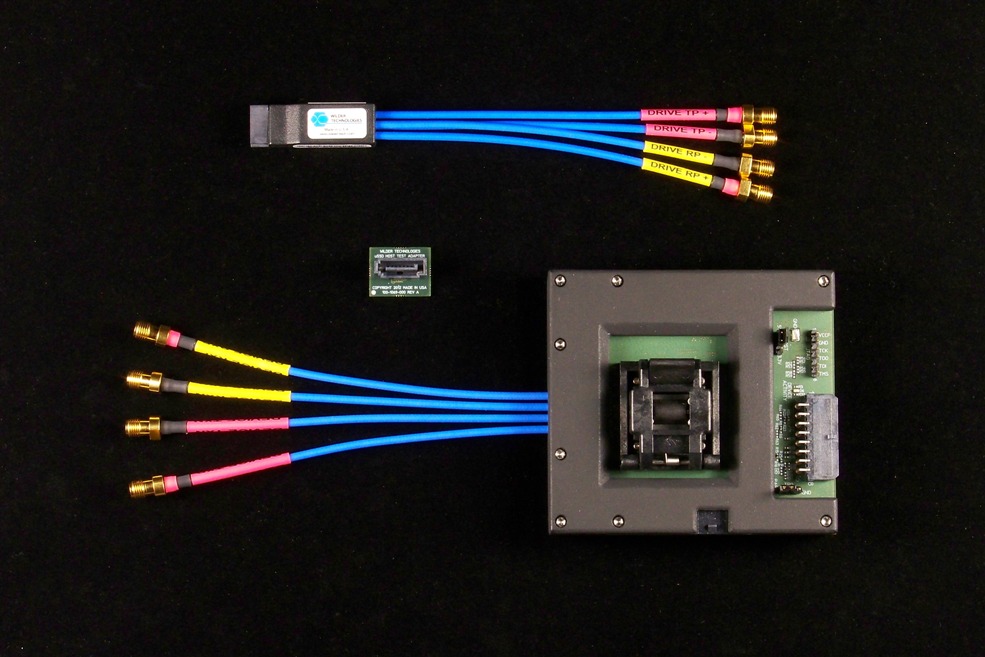

uSSD Test Adapter

| Key Electrical

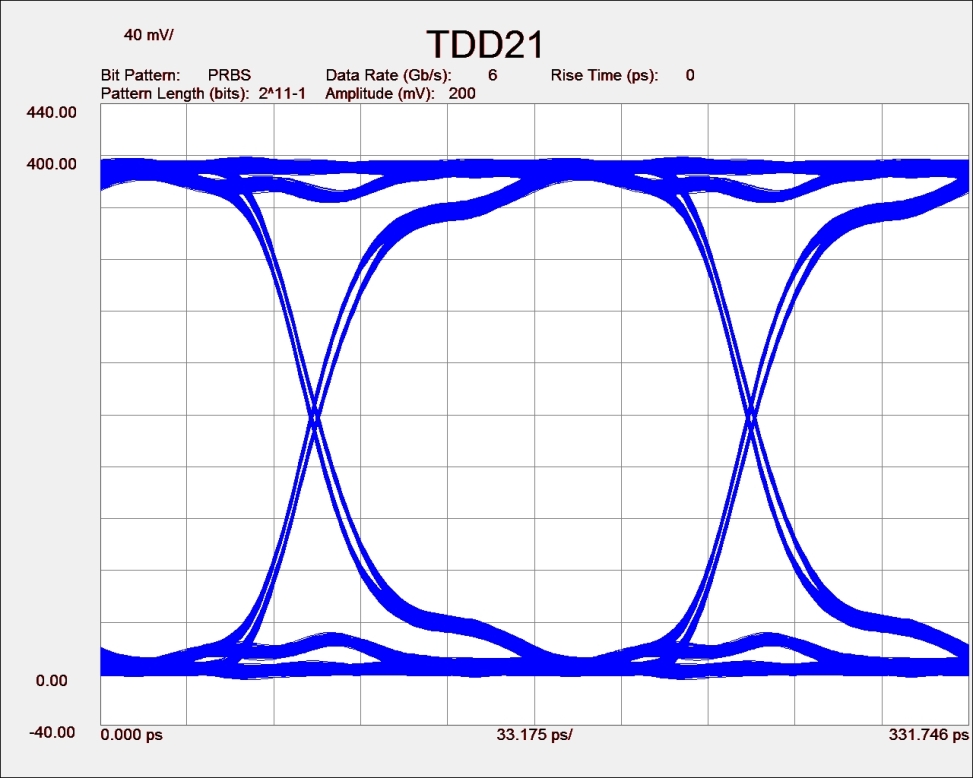

• 1.5 Gb/s, 3.0 Gb/s, and 6.0 Gb/s data rates supported

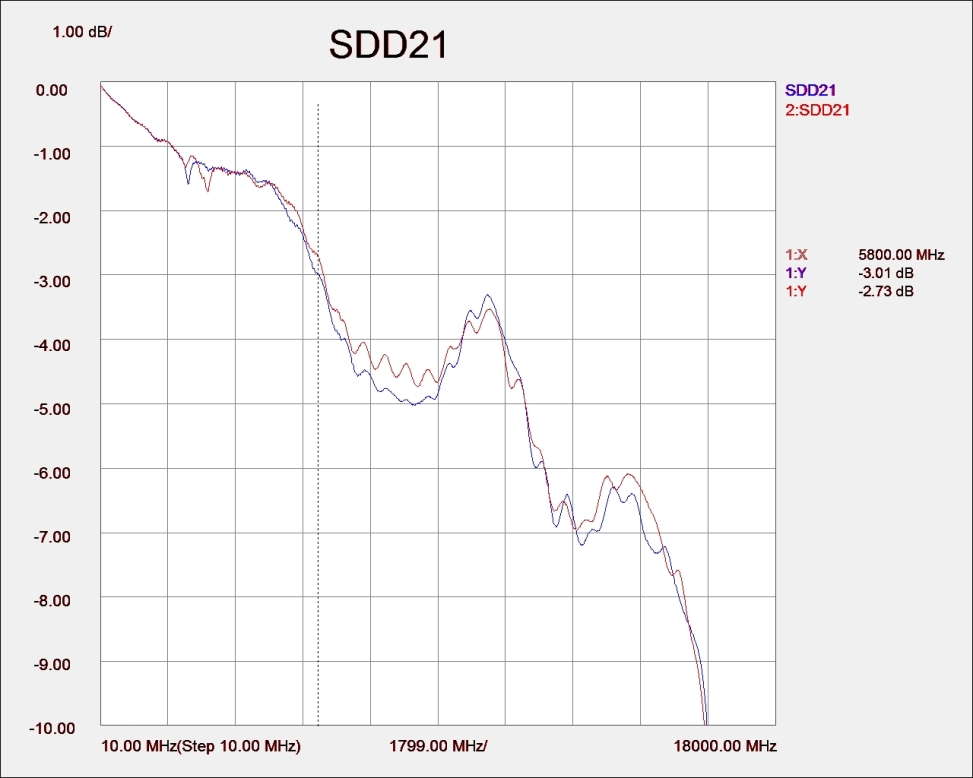

• IL < -3 dB @ 5.8 GHz mated Host and Device fixtures w/Socket

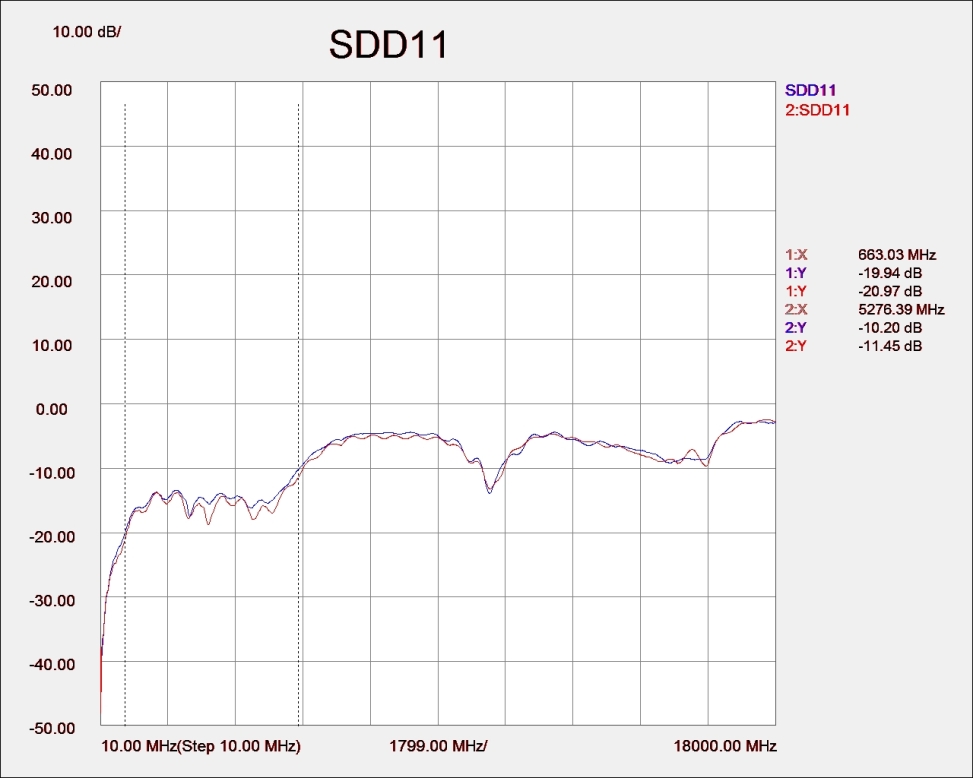

• RL < -10dB @ 5.2 GHz mated Host and Device fixtures w/Socket
• Differential Impedance 100 +/- 5 ohms
• Single Ended Impedance 50 +/- 2.5 ohms

| Key Mechanical

• High performance .086" Flexible SMA coaxial cables
• All critical components are enclosed to facilitate robustness
• Coax cables are enclosed in a rotation compliant strain relief
• Coax cables are axially retained in the fixture enclosure
