SV6E-X: SoundWire

Multi-Purpose Protocol Exerciser, Protocol Analyzer, and Real-Time Oscilloscope Enabling High-Performance Testing of SoundWire

견적 요청 자료실

| Benefits

Future proof: Use a single investment in hardware to evolve protocol testing over multiple generations of product development.
Flexible: Programmable voltage levels and input/output timings offer true functional stress testing and characterization capabilities.
Automated: Scripting capability is ideal for debug tasks, verification and full‐fledged production screening of devices and system boards.

| Features

The SV6E-X is an all-inclusive solution for mid-frequency digital interface development and test. Featuring support for MIPI SoundWire®, a protocol commonly used in microphone arrays and stereophonic and surround sound, the SV6E-X module replaces racks of equipment that are typically required for I/O testing and design validation. The SV6E-X contains three instruments in one: a protocol exerciser, a protocol analyzer with fine-resolution timing analysis, and a real-time oscilloscope. As a result, the SV6E-X enables high-performance testing of SoundWire.

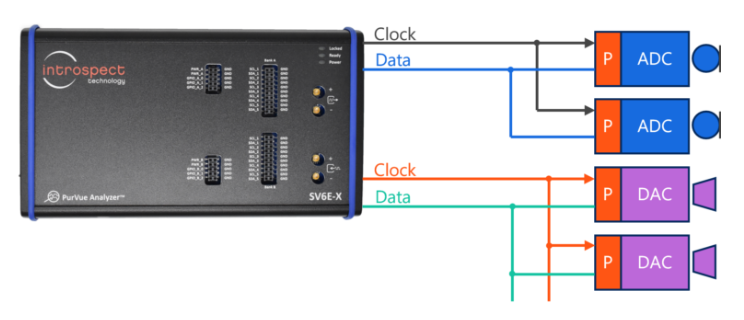

Typical Application: Testing Multiple SoundWire Peripherals
