Protocol Generators and Analyzers
| Protocol Generators and Analyzers
This BIT-3000 DSGA is designed as a complement to high-speed instruments like AWGs or BERTs.

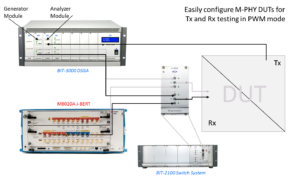

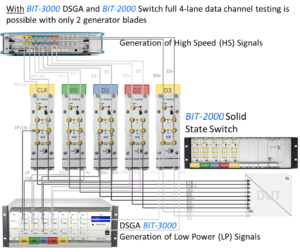

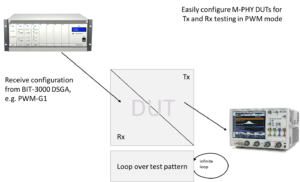

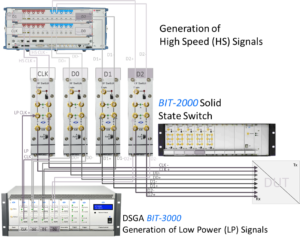

MIPI M-PHY and D-PHY source or receiver test often require complex sequences which interleave high-speed (HS) and low-power (LP) data, which is complicated to impossible to implement only with dedicated high-speed equipment. The DSGA fills this gap by generating the LP data, while at the same time triggering on and recording the PWM-encoded response from the DUT. The primary application is to bring the DUT into test mode, and to read the frame- and error counters from the DUT.
The Test Automation software ValiFrame / N5990A enables fully automated control over the BIT-3000 DSGA. The user can use the Frame Generator software to decode data.
A modular design allows users to adapt the system to their specific needs.
> Customization of The DSGA
To fulfill individual purposes in which a DSGA Platform is useful, you can also configure your own system. Below you find the different modules.
| Mandatory Modules

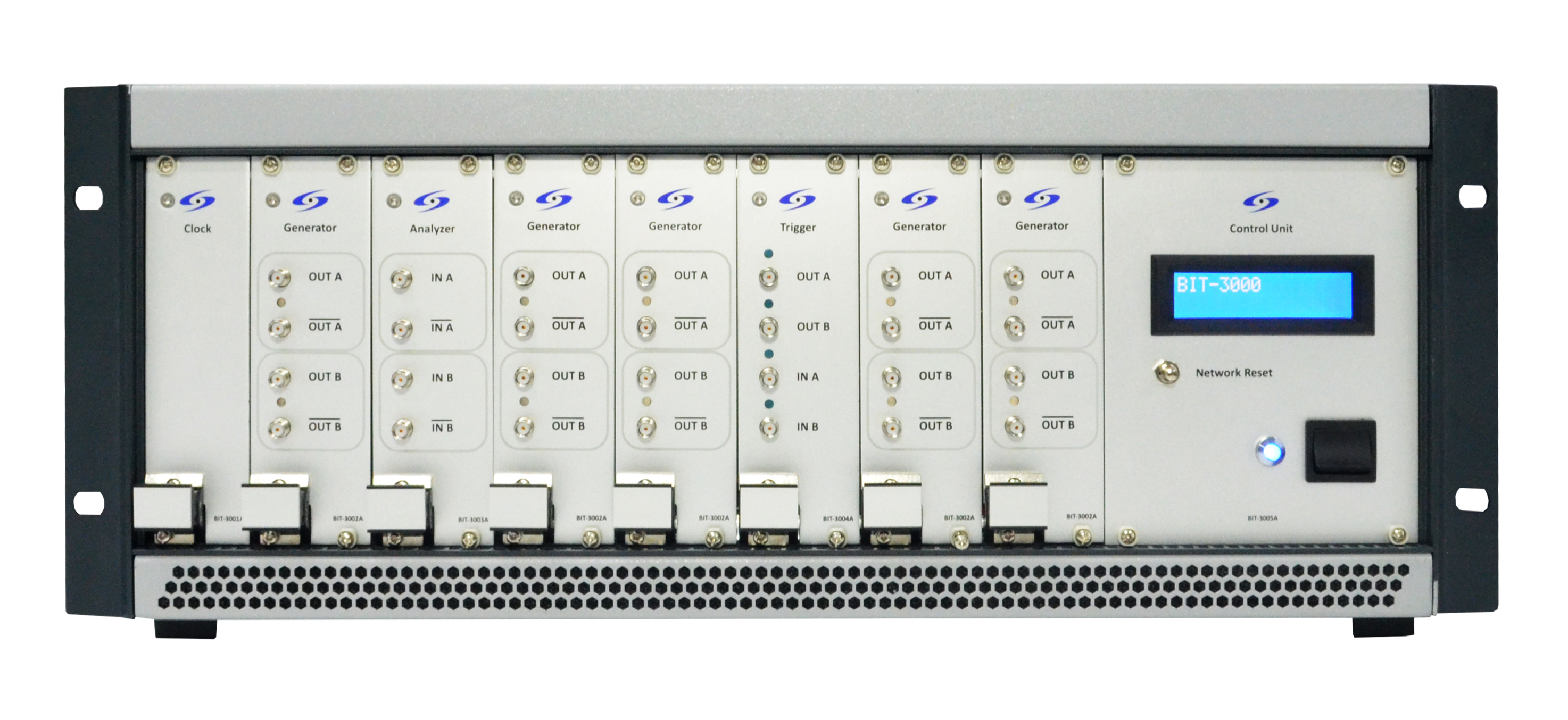

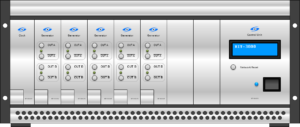

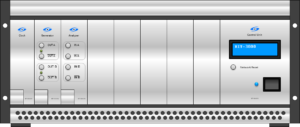

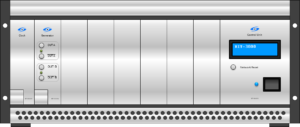

- 3000 Series DSGA Platform
Mainframe
-
BitifEye Order Number: BIT-4000-3000-0
General Information:
CPU, control unit, power supply, one clock module slot, seven generator/analyzer/
trigger module slots (no modules included)
Spec:
◾ Sequence: up to ≈200 steps (depending on complexity)
◾ Memory: 16 MBit pattern per generator channel
Functionality:
There’s one sequence in the central FPGA
It can be programmed with our Generic Pattern Language
Many loop and branch levels
Possibility to branch on trigger input edge/level, on analyzer pattern, or manual event
- 3000 Series DSGA Platform
Filler Panel
-
Used on slots with no module in. Will be added automatically if needed
- BIT-2102A(Extension Mainframe Controller)
-
BitifEye Order Number: BIT-4000-3001-0
General Information:
Qty. 1 required with every DSGA Mainframe
Provides clock for the generator modules
Function: it has internal reference, but can also use external reference
Spec:
◾ Rear ref clk in: frequency ≈0.1..25 MHz; sensitivity ≈100 mV
◾ Rear ref clk out: ≈1 V; either 10 MHz int ref, or from ext ref clk in
◾ PLL: up to 100 MHz; can be bypassed; BW ≈0.01..1.2 MHz
| 2:1 Module Options
- BIT-2122A
(2x SPDT switch module),
unterminated
-
Switch module with two independent SPDT switches. All paths have an impedance of 50 Ohm and have a bandwidth of DC to 26.5 GHz.
The disconnected signal connector is left unterminated (one signal is always connected to the center pin).
Note that this module type can only be mounted in the 4th or 5th slot of the main frame.
BitifEye Order Number: BIT-4000-2122-0
- BIT-2142A
(4x SPDT switch module),
unterminated
-
Switch module with four independent SPDT switches. All paths have an impedance of 50 Ohm and have a bandwidth of DC to 26.5 GHz.
The disconnected signal connector is left unterminated (one signal is always connected to the center pin).
Note that this module type can only be mounted in the 4th or 5th slot of the main frame.
This module has the same characteristics as the BIT-4000-2122-0, but with two additional switches.
BitifEye Order Number: BIT-4000-2142-0
- BIT-2162A
(6x SPDT switch module),
unterminated
-
Switch module with six independent SPDT switches. All paths have an impedance of 50 Ohm and have a bandwidth of DC to 26.5 GHz.
The disconnected signal connector is left unterminated (one signal is always connected to the center pin).
Note that this module type can only be mounted in the 4th or 5th slot of the main frame.
This module has the same characteristics as the BIT-4000-2122-0, but with four additional switches.
BitifEye Order Number: BIT-4000-2162-0
| Optional Modules
- DSGA Platform
Generator Module
-
BitifEye Order Number: BIT-4000-3002-0
General Information:
Up to 6 modules supported in any of the 7 slots
Each module has 2 differential generators
Data comes from 12-channel sequencer
Delay line (shared between the two generators)
Spec:
- ◾ Voltage window: -3.5..+3.5V
- ◾ Offset voltage:
- ◾ into 50 Ω: termination voltage
±1 V
- ◾ into open: -3.5..+3.5V
- ◾ Swing voltage:
- ◾ into 50 Ω: up to 1.7 V
- ◾ into open: up to 3.4 V
- ◾ Delay: up to 10 ns
- DSGA Platform
Analyzer Module
-
BitifEye Order Number: BIT-4000-3003-0
General Information:
Up to 2 modules supported in any of the 7 slots
Each module has 2 analyzers
Each module has an NRZ sampler and a PWM sampler
Sampled patterns can either be recorded, or trigger other components
Spec:
- ◾ Modes:
- ◾ single-ended hi-Z, programmable threshold -3.5..+3.5V
- ◾ single-ended 50 Ω into GND, prog. thrs. -3.5..+3.5V
- ◾ differential 50 Ω into GND
- ◾ differential 100 Ω
- ◾ Datarate: up to 100 MBit/s NRZ, ≈ 33 MBit/s PWM
- ◾ Recorder size: 16 MBit
- DSGA Platform
Trigger Module
-
BitifEye Order Number: BIT-4000-3004-0
General Information:
Up to 2 modules supported in any of the 7 slots
Each module has 2 trigger outputs + 2 trigger inputs
Trigger out driven by sequencer
Trigger in can engage sequencer or pattern recorders
Spec:
- ◾ Input: single-ended, programmable threshold -3.5..+3.5V
- ◾ Output: 1.2 V typical; pulse length programmable
| Under Development
- DSGA Platform
Relay Module
-
BitifEye Order Number: BIT-4000-3005-0
General Information:
Up to 7 modules supported in any of the 7 slots
Two 2:1 relays per module
The disconnected path is open (reflective)
We plan to also support alternative relays to overcome delivery shortages
Spec:
◾ Insertion Loss: less than 1 dB at 26.5 GHz
◾ Switch time: ≈ 15 ms
◾ Switch cycles: ≥ 1 million
