| 34980A 제품 사양 |
|
LXI C형과 호환 |
|

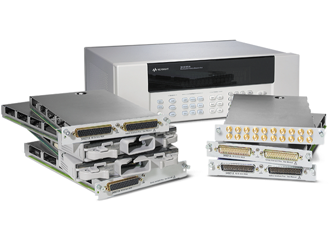

내장형 6.5디지트 DMM(옵션)을 갖춘 8슬롯 메인프레임 |
|
-DC ~ 20GHz 스위칭, 디지털 I/O, D/A 컨버터, 카운터/토탈라이저 중에서 선택할 수 있는 19개의 플러그인 모듈 |
|
단일 프레임에 최대 560개의 2와이어 멀티플렉서 채널 또는 1024개의 2와이어 매트릭스 교차점 장착 |
|
표준 케이블, 착탈식 터미널 블록 또는 대량 상호연결 솔루션 |
|
Multiplexer modules |
|||||||
| 제품 | 설명 |
Max volts |
Switch/Carry current |
BW (MHz) |
Scan ch/sec |
Thermal offset |
Comments |
|
34921A |
40-channel armature multiplexer w/low thermal offset |
± 300 V |
1A/2A |
45 MHz |
100 |
< 3 μV |
Temperature reference 4 current channels |
|
34922A |
70-channel armature multiplexer |
± 300 V |
1A/2A |
25 MHz |
100 |
< 3 μV |
Conig as 2- or 4-wire |
|
34923A |
40/80-channel reed multiplexer |
± 150 V |
0.5A/1.5A |
45 MHz |
500 |
< 50 μV |
Conig as 1-, 2- or 4-wire |
|
34924A |
70-channel reed multiplexer |
± 150 V |
0.5A/1.5A |
25 MHz |
500 |
< 50 μV |
Conig as 2- or 4-wire |
|
34925A |
40/80-channel optically isolated FET multiplexer |
± 80 V |
0.02A |
1 MHz |
1000 |
< 3 μV |
Conig as 1-, 2- or 4-wire |
|
Matrix modules |
|||||||
| 제품 | 설명 |
Max volts |
Switch/Carry current |
BW (MHz) |
Scan ch/sec |
Thermal offset |
Comments |
|
34931A |
Dual 4x8 armature matrix |
± 300 V |
1A/2A |
30 MHz |
100 |
< 3 μV |
Backplane expandable |
|
34932A |
Dual 4x16 armature matrix |
± 300 V |
1A/2A |
30 MHz |
100 |
< 3 μV |
Backplane expandable |
|
34933A |
Dual/Quad 4x8 reed matrix |
± 150 V |
0.5A/1.5A |
30 MHz |
500 |
< 50 μV |
Backplane expandable |
|
34934A |
Quad 4x32 reed matrix |
+/- 100 V |
0.5A/0.5A |
20 MHz |
500 |
< 50 μV |
Backplane expandable |
|
General-purpose modules |
|||||||
| 제품 | 설명 |
Max volts |
Switch/Carry current |
BW (MHz) |
Scan ch/sec |
Thermal offset |
Comments |
|
34937A |
28-channel Form C and |
+/–300 V |
1A/2A |
10 MHz |
N/A |
< 3 μV |
|
|
34938A |
20-channel 5-amp Form A |
+/–250 VAC |
5A/8A |
1 MHz |
N/A |
< 3 μV |
|
|
34939A |
64-channels Form A |
+/–100V |
1A/2A |
10 MHz |
N/A |
< 3 μV |
|
|
RF and microwave modules |
|||||||
| 제품 | 설명 |
Insertion loss |
Isolation |
Freq range |
VSWR |
Input impedence |
Comments |
|
34941A |
Quad 1x4 50 ohm 3 GHz RF multiplexer |
0.6 dB |
> 58 dB |
3 GHz |
< 1.25 |
50 Ω |
@ 1 GHz |
|
34942A |
Quad 1x4 75 ohm 1.5 GHz RF multiplexer |
0.6 dB |
> 60 dB |
1.5 GHz |
< 1.35 |
75 Ω |
@ 1 GHz |
|
34945A/ |
Microwave switch/attenuator driver |
Can drive up to 64 external switch coils; 32 SPDT switches, 8 multiport switches, 8 attenuators, or your own combination. Expand with additional 34945EXTs. |
|||||
|
34946A |
Dual 1x2 SPDT terminated microwave switch |
< 0.42 dB |
> 85 dB |
4 GHz or |
< 1.15 |
50 Ω |
@ 4 GHz |
|
34947A |
Triple 1x2 SPDT unterminated microwave switch |
< 0.42 dB |
> 85 dB |
4 GHz or |
< 1.15 |
50 Ω |
@ 4 GHz |
|
System control modules |
|||||||
|
제품 |
설명 |
||||||
|
34950A |
64-bit digital I/O with memory and counter |
Eight 8-bit digital I/O channels with programmable polarity, thresholds up to 5 V, with handshaking protocols and pattern memory. Two 10 MHz frequency counter and programmable clock output to 20 MHz. |
|||||
|
34951A |
4-channel isolated D/A converter with waveform memory |
Output DC voltage up to ± 16 V or DC current up to ± 20 mA. Output waveforms with a 200 kHz update rate and 16 bits of resolution. Use on-board memory to create point-to-point waveforms with more than 500,000 points. |
|||||
|
34952A |
Multifunction module with 32-bit DIO, 2-ch D/A and totalizer |
Four 8-bit digital I/O channels, two ± 12-V analog outputs, and a 100 kHz gated totalizer. |
|||||
|
34959A |
Breadboard module |
Create your own custom designs with access to the +12 V and +5 V supplies, 16 GPIO ports and 28 relay drive lines. |
|||||
| Description | Model number |
|
Rackmount kit for 34980A, forward or reverse mount (must order either E3663AC rail kit for forward rack mounting or E3664AC rail kit for reverse rack mountin |
Y1130A |
|
Veriication and diagnostic tools for 34980A mainframe and modules (select option for speciic module support) |
Y1131A |
|
Module extender for 34980A. Extends cable to locate module outside of mainframe 8710-2576 SMA Extender for connecting SMA connectors. |
Y1132A |
|
Multiplexer terminal blocks |
3492xT |
|
Matrix and GP terminal blocks |
3493xT |
|
Measurement and control terminal blocks |
3495xT |
|
Row expansion cables for 34934C and 34934T |
Y1134A |
|
1.5 m 50-pin Dsub, M/F twisted pair with outer shield cable – 300 V |
Y1135A |
|
3 m 50-pin Dsub, M/F twisted pair with outer shield cable – 300 V |
Y1136A |
|
1.5 m 78-pin Dsub, M/F twisted pair with outer shield cable – 300 V |
Y1137A |
|
3 m 78-pin Dsub, M/F twisted pair with outer shield cable – 300 V |
Y1138A |
|
Solder cup connector kit for 34921/23/25/31/32/33/37/38 –50-pin Dsub female – 125 V |
Y1139A |
|
Solder cup connector kit for 34922, 34924 – 78-pin Dsub female – 60 V |
Y1140A |
|
Solder cup connector kit for 34951, 34952 – 50-pin Dsub male – 125 V |
Y1141A |
|
Solder cup connector kit for the 34950A – 78-pin Dsub male – 60 V |
Y1142A |
|
External driver for 34945A, one required for each 64 coils –holds 4 distribution boards. Order Y1157A-Y1159A cable kits to connect from distribution boards to switches and attenuators. |
34945EXT |
|
34945EXT distribution board for 8 N181x SPDT switches |
Y1150A |
|
34945EXT distribution board for two 87104x/106x L7x0xx multiport or 87406B matrix switches |
Y1151A |
|
34945EXT distribution board for one 87204x/206x or 87606B switch and two N181x switches |
Y1152A |
|
34945EXT distribution board for two 84904/5/6/7/8 or 8494/5/6 step attenuators |
Y1153A |
|
34945EXT distribution board for two 87222, L7222C transfer switches and six N181x SPDT switches |
Y1154A |
|
34945EXT distribution board w/ generic screw terminals for driving 16 switch coils |
Y1155A |
|
9-to-10 pin cable kit for Y1150A, Y1152A, Y1154A - supplies to build 4 cables |
Y1157A |
|
10-to-10/10-to-14 pin cable kit for Y1153A, Y1154A - supplies to build 2 cables |
Y1158A |
|
6-to-16 pin cable kit for Y1150A/51A/52A/53A/54A/55A - supplies to build 2 cables |
Y1159A |
|
10 pack of J type thermocouples |
34307A |
|
5 pack of 10 k thermistors |
34308A |
