제품 정보
Keysight 제품

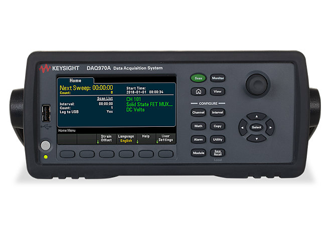

| 제품 | DAQ973A | DAQ970A |
| Product Description | · Portable / Bench top Data Acquisition system · Built in 6 ½ digit DMM · Choose from 8 plug-in cards · On-board temperature reference · Auto-calibration |
|
|
Slots |
3 | |
|
Plug-in Cards |
· Solid state multiplexer · Multiplexer · Matrix · GP · RF · Digital IO · DAC |
|
|
Measurement Resolution |
22-bit | |
|
Max. Low Frequency Channels |
· 120 1-wire mux · 60 2-wire mux · 96 2-wire matrix cross points |
|
|
Channels/Second |
450 Ch/s | |
|
Max. Frequency |
2 GHz | |
|
Connectivity |
· GPIB · USB 2.0 · Built-in LAN · BenchVue / TestFlow · LXI Compliant · USB flash memory drive · USB datalogging and data mirroring · Remote web interface |
· USB 2.0 · Built-in LAN · BenchVue / TestFlow · LXI Compliant · USB flash memory drive · USB datalogging and data mirroring · Remote web interface |
| Model | Description | Type | Speed (Ch/Sec) | Max. Volts | Max. Amps |
| DAQM900A | 20 Ch Multiplexer + 2 Current Channels |
2-wire Solid-state |
450 | 120 V | 1 A |
| DAQM901A | 20 Ch Multiplexer + 2 Current Channels |
2-wire Armature |
80 | 300 V | 1 A |
| DAQM902A | 16 Ch Multiplexer |
2-wire Reed |
250 | 300 V | 50 mA |
| DAQM903A | 20 Ch Actuator/GP Switch |
SPDT/form C |
120 | 300 V | 1 A |
| DAQM904A | 4 x 8 Matrix |
2-wire Armature |
120 | 300 V | 1 A |
| DAQM905A | Dual 4 ch RF Mux 50 Ω |
Common low |
60 | 42 V | 0.7 A |
| DAQM907A | Multifunction Module |
Two 8-bit digital I/O ports |
42 V | 400 mA | |
26-bit event counter |
42 V | ||||
Two 16-bit analog outputs |
±12 V | 10 mA | |||
| DAQM908A | 40 Ch Single-Ended Mux |
1-wire Armature |
100 | 300 V | 1 A |
| DAQM909A | 4 Ch Digitizer |
Simultaneous sampling |
800 kSa/s | 36 Vpk |
| Description | Model number |
|
Kelvin Clip Set |
11062A |
|
Data Acquisition App for instrument control and measurements, data graphing tools,logging measurements, and in depth analysis |
BV0006B |
|
10-pack of J-type thermocouples |
34307A |
|
5-pack of 10 kΩ thermistors |
34308A |
|
Accessory pouch |
34161A |
|
Hard carrying case (transit case) |
34131A |
|
Kit of 10 SMB-to-BNC adapter cables, 50 Ω |
34905-60001 |
|
Kit of 10 SMB-to-BNC adapter cables, 75 Ω |
34906-60001 |
