펨토/피코 전류계 |
전위계/고저항 미터 |
||
| B2981C | B2983C |

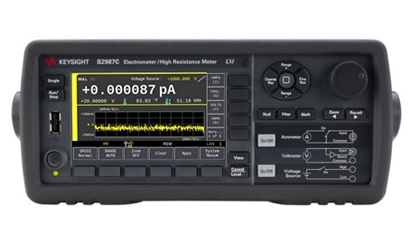

B2985C | B2987C | |
|
Measurement resolution |
6½ digits |
6½ digits |
6½ digits |
6½ digits |
|
Current measurement |
0.01 fA - 20 mA |
0.01 fA - 20 mA |
0.01 fA - 20 mA |
0.01 fA - 20 mA |
|
Minimum range |
2 pA |
2 pA |
2 pA |
2 pA |
|
Resistance measureme |
Up to 10 PΩ |
Up to 10 PΩ |
||
|
Voltage measurement |
1 μV - 20 V |
1 μV - 20 V |
||
|
Input resistance |
> 200 TΩ |
> 200 TΩ |
||
|
Charge measurem |
1 fC - 2 μC |
1 fC - 2 μC |
||
|
Temperature measurement |
√ |
√ |
||
|
Humidity measurement |
√ |
√ |
||
|
Voltage source |
Up to ±1,000 V |
Up to ±1,000 V |
||
|
Minimum resolution |
700 μV |
700 μV |
||
|
Maximum reading rate |
20,000 rdg/s |
20,000 rdg/s |
20,000 rdg/s |
20,000 rdg/s |
|
Battery operation |
√ |
√ |
||
|
Other key features |
Graphical capability (Meter View, Graph View, Histogram View, Roll View), Auto navigation, 100,000 points sample buffer, Interface (USB, LAN, GPIB, LXI Core), Free PC control software, etc. |
|||
| Description | Model number |
|
Interlock cable, 4 pin terminal plug to 6 pin circular plug, (1.5 m, 3 m) |
N1411A/B |
|
High resistance meter ixture adapter |
N1413A |
|
High resistance measurement universal adapter |
N1414A |
|
Triax to alligator cable, 200 V, 1.5 m |
N1415A |
|
Triax bulkhead connector, (200 V/500 V) |
N1416A/B |
|
Open cap for triaxial connector |
N1417A |
|
Lithium-ion battery pack for B2983/B2987 |
N1418A |
|
Thermocouple for B2985/B2987 |
N1423A |
| Resistivity Cell for N1413 with B2980 Series(50 mm Electrodes) | N1424A |
| Resistivity Cell for N1413 with B2980 Series(26/50 mm Diameter Electrodes) | N1424B |
| Resistivity Cell for N1413 with B2980 Series (26/50/76 mm Diameter Electrodes) | N1424C |
| Low Noise Test Leads for N1413 with B2980 series (1.5 m/3 m) | N1425A/B |
| Pin Probes for N1425 | N1426A |
| Soldering Sockets for N1425 | N1426B |
| Alligator Clips for N1425 | N1426C |
| Low Noise Test Cables for N1413 with B2980 series (1.5 m/3 m) | N1427A/B |
| Component Test Fixture for N1413 with B2980 Series | N1428A |
| Low leakage triax cable (500 V, 1.5 m/3 m/6 m) | N1412/A/B/C |
| Triax (female) to BNC (male) adaptor: For current measurement, floating DUT/sample | N1254A-102 |
| Triax (female) to BNC (male) adaptor: For current measurement, grounded DUT/sample | N1254A-104 |
| Triax (female) to BNC (male) adaptor: For voltage measurement | N1254A-105 |
| Rack Mount Kit | 1CM124A |
