Key specifications |

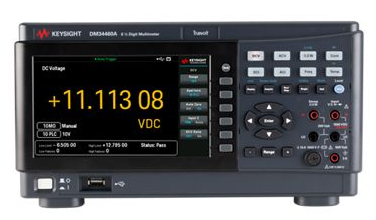

DM34460A |
DM34461A |
|
Digits of resolution |
6½ |
6½ |
|
Basic DCV accuracy |
40 ppm |
40 ppm |
|
Max reading rate |
1,000 readings/s |
50,000 readings/s |
|
Memory |
50,000 readings |
2 million readings |
|
Measurements |
DM34460A |
DM34461A |
|
DCV |
100 mV to 1,000 V |
100 mV to 1,000 V |
|
ACV (RMS) |
100 mV to 750 V |
100 mV to 750 V |
|
DCI |
100 μA to 3 A |
100 μA to 3 A |
|
ACI |
100 μA to 3 A |
100 μA to 3 A |
|
2- and 4-wire resistance |
100 Ω to 100 MΩ |
100 Ω to 100 MΩ |
|
Continuity, diode |
Y, 5 V |
Y, 5 V |
|
Frequency, period |
3 Hz to 300 kHz |
3 Hz to 300 kHz |
|
Temperature |
RTD/PT100, thermistor |
RTD/PT100, thermistor |
|
Capacitance |
1 nF to 100 µF |
1 nF to 100 µF |
|
IO Interface |
DM34460A |
DM34461A |
|
USB |
Yes |
Yes |
|
LAN/LXI Core |
Yes |
Yes |
| Description | Model number |
|
Kelvin probe set |
11059A |
|
Surface-mount device probe |
11060A |
|
Kelvin clip set |
11062A |
|
Precision electronic test leads |
34133A |
|
DC-coupled current probe |
34134A |
|
Test lead set |
34139A |
|
Three signal wedge probe kit |
34151A |
|
PT100/RTD 4-Wire Class A sensor kit |
34152A |
|
PT100/RTD 4-Wire Class sensor elements |
34153A |
|
Input terminal block |
34171B |
|
Calibration short |
34172B |
|
30-A current shunt |
34330A |
|
Thermistor temperature pro |
E2308A |
|
Instrument Stacking Kit |
EDU190A |
