Performance specifications | E36311A | |||||
Power output | 90 W | |||||
DC output rating (0 to 40ºC) |
1 | 2 | 3 | |||
0 to 6 V | 0 to 30 V | 0 to 30 V | ||||
0 to 5 A | 0 to 1 A | 0 to 1 A | ||||
Load regulation ± (% of output + offset) | ||||||
Voltage | < 0.01% + 2 mV | |||||
Current | < 0.2% + 10 mA | |||||
Line regulation ± (% of output + offset) | ||||||
Voltage | < 0.01% + 2 mV | |||||
Current | < 0.2% + 10 mA | |||||
Accuracy 12 months (23 ºC ± 5 ºC) | ||||||
Programming accuracy ± (% of output + offset) | ||||||
Voltage | 0.1% + 5 mV | 0.05% + 10 mV | ||||
Current | 0.1% + 10 mA | 0.2% + 5 mA | ||||
Readback accuracy ± (% of output + offset) | ||||||
Voltage | 0.1% +5 mV | 0.05% + 10 mV | ||||
Current | 0.1% + 10 mA | 0.2% + 5 mA | ||||
Load transient recovery time (Time to recover within the settling band following a load change from 50% to 100% and from 100% to 50% of full load) |
||||||
Voltage settling band | 15 mV | |||||
Time | < 50 uS |
Description | Model number |
Instrument stacking kit | EDU190A |
PathWave BenchVue Power Supply App | BV0003B |
※ 모델을 클릭하시면 해당 제품을 상세히 보실 수 있습니다. | |
Description | Model number |
Waveform Generator, 20 MHz, 1 Ch | EDU33211A |
Waveform Generator, 20 MHz, 2 Ch | EDU33212A |
Digital multimeter, 5.5 digit | EDU34450A |

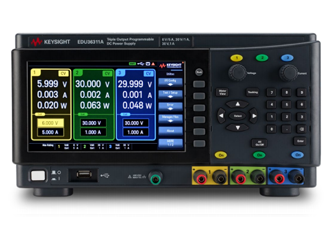

90 W DC DC Power Supply, Triple-output, 6 V, 5 A, and 2x 30 V, 1 A, LAN, USB | EDU36311A |
Oscilloscope, 50 MHz, 2Ch | EDUX1052A |
Oscilloscope, 50 MHz, 2Ch, With Function Generator | EDUX1052G |
