Multi-Sensor PBL

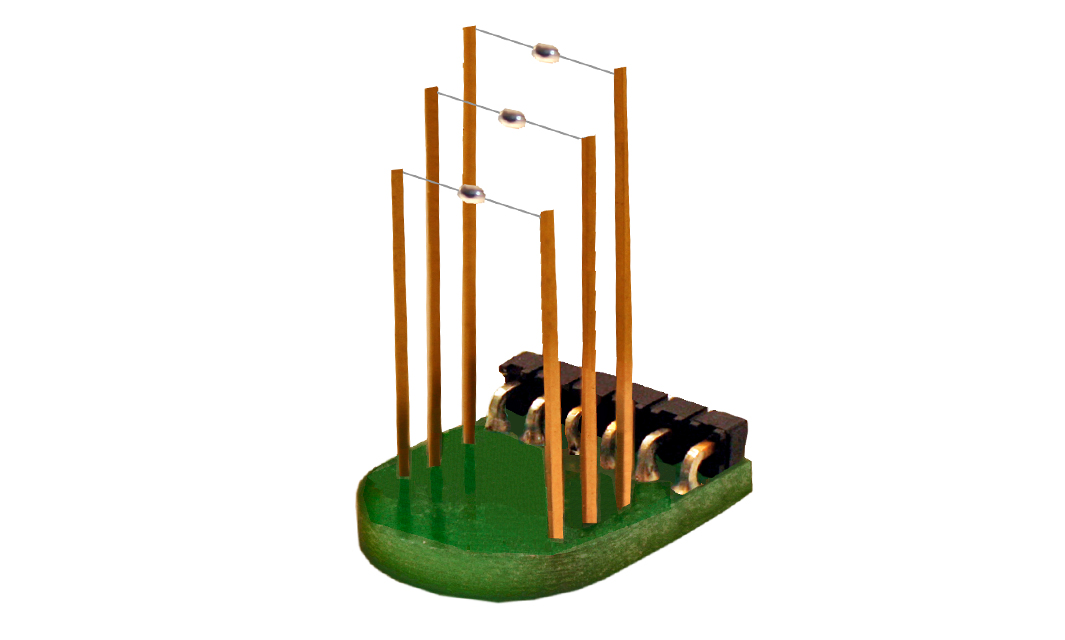

The MS 1000-PBL-20 is a three-sensor probe designed for the measurement of air velocity and temperature in the same vertical plane. It eliminates the need for multiple probes or a traversing probe for determining the flow profile or distribution.
| Product Specifications
Height : 13, 18 and 23mm (0.53, 0.73 and 0.92")
Base Height : 10mm (0.4")
Base Diameter : 15.2mm (0.6")
Flow Range : 0 to 50 m/s (0 to 10,000 ft/min)
Temperature Range : -20ºC to 120ºC (-4ºF to 248ºF)
Temperature Accuracy : +/- 1ºC
| Applications
Component Testing
Heat Sink Characterization
Heat Sink Comparison
PCB Testing
Thermal Characterization Studies
Air flow studies for automotive
HVAC air flow Characterization
Medical equipment air flow validation
| Additional Features
Highly Accurate
Temperature & Velocity Measurement
3 Sensor Probe
Compatible with most ATS instruments, including the iQ-200, ATVS-2020, ATVS-NxT, eATVS, ISD & WTC-100
| Product and How To Videos
VIDEO
The families of ATS thermal test instruments for the electronics industry.
