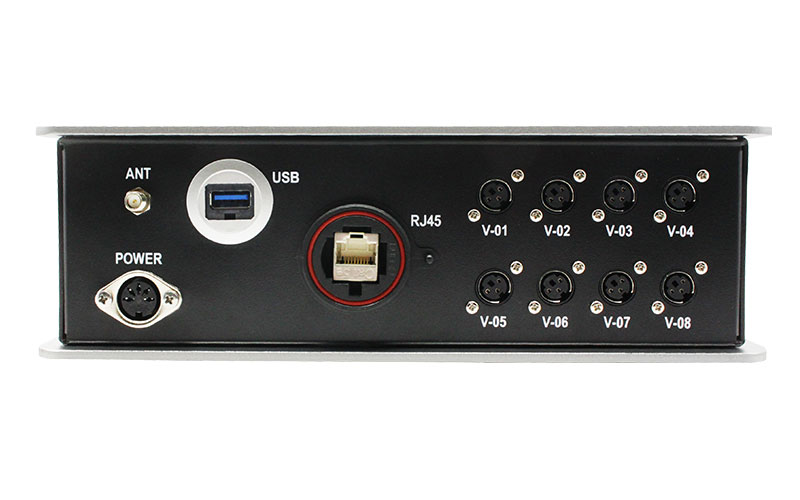

The eATVS-2030™ Automatic Temperature and Velocity Scanner is a portable, 8-channel hot wire anemometer system. Fully automated, this research-quality instrument takes accurate single- or multi-point measurements of air temperature, surface temperature, and velocity in complex enviroments, such as PCBs and electronics enclosures. When used as a temperature logger, it can measure both fluid and solid temperatures.

The unique, patented candlestick sensors are designed to be flexible, robust and low profile to minimize flow disturbance. They can be easily placed anywhere in the test domain. The use of a single sensor to measure both temperature and velocity at a single point eliminates errors introduced because of the flow being non-isothermal.

Its portable design and compact dimensions make it an ideal choice for various applications. The system requires a PC for operation and seamlessly interfaces with the included stageVIEW™ software for intuitive data acquisition and reporting.

| Product Specifications

• OVERALL DIMENSIONS (D X W X H) : 23.5 mm x 13.4 mm x 6.4 cm (9.3" x 5.3" x 2.5")
• TEMPERATURE RANGE : -30℃ to 150℃ ± 1℃
• FLOW RANGE : 0 to 51 m/s (0 to 10,000 FT/MIN) (± 3%)
• NUMBER OF CHANNELS : 8
• SOFTWARE : StageVIEW™
• POWER : 110V or 220V
• WEIGHT : 2 kg (4 lbs.)

| Applications

• Solid/Liquid Temperature Measurement
• Velocity Measurement
• Heat Sink Characterization
• PCB Testing
• Heat Sink Comparison
• Wind Tunnel Testing
• Thermal Characterization Studies

| Additional Features

• Accuracy and Ease of Use
• Single Sensor Technology
• High & Low Speed Calibration
• Up to 8 Sensors
• Remote Access
• Connection
• stageVIEW™ Software
