SV2C-32 Personalized SerDes Tester

Parallel bit-error-rate measurement across 8 lanes, 32 Gbps for high-end SerDes applications

견적 요청 자료실

| Benefits

True parallel bit-error-rate measurement across 8 lanes
Continuous data rate selection up to 32 Gbps
Per lane TX amplitude and pre-emphasis control
Per lane RX clock recovery and equalization
Fully-synthesized integrated jitter injection on all lanes

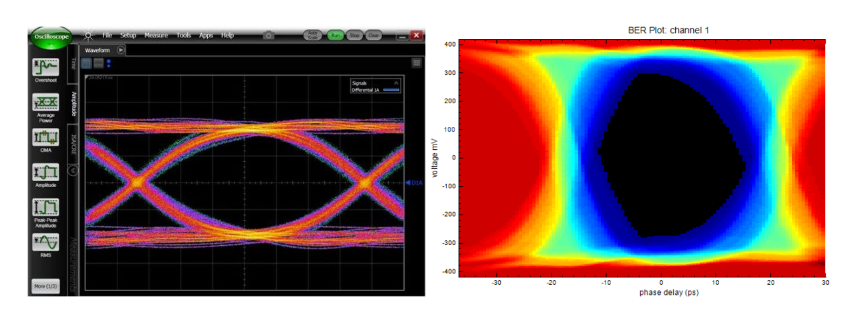

BERT, eye diagram and analog waveform measurement capabilities
Flexible loopback support per lane
State-of-the-art programming environment based on the highly intuitive Python language

| Features

The SV2C Personalized SerDes Tester is an ultra-portable, high-performance instrument that creates a new category of tool for testing high-speed digital products. It has been designed specifically to address the growing need of a parallel, system-oriented test methodology while offering world-class signal-integrity features such as jitter injection, de-emphasis generation, and equalization. Coupled with Introspect’s award-winning software environment, Pinetree, the SV2C enables product-, validation-, and production-test engineers to develop fast, efficient SerDes verification algorithms.
