SV5C-eDP Embedded DisplayPort Analyzer

Complete Analysis of eDP 1.5 and DP 2.1 Systems in HBR

견적 요청 자료실

| Benefits

Supports Embedded DisplayPort (eDP) up to v1.5 and DisplayPort (DP) up to v2.1 in HBR
Supports up to 10 Gbps for both direct connection and bus probing
Configurable from 1 to 4 lanes per port (L0 to L3) plus auxiliary channel (AUX)
Extensive triggering functions and consecutive frame capture capabilities
Full video frame extraction including standard event and symbol tables for visual analysis and data collection

| Features

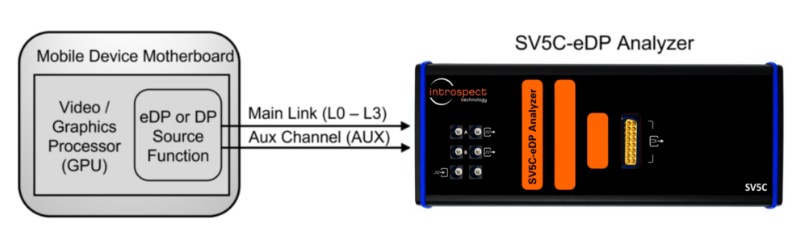

The SV5C-eDP Embedded DisplayPort Analyzer is an ultra-portable, high-performance instrument capable of analyzing traffic for Embedded DisplayPort and DisplayPort applications. The SV5C-eDP Analyzer may be used as either a DisplayPort sink device (for source testing) or as a probing solution for capturing protocol traffic on an Embedded DisplayPort bus. The Analyzer can capture live traffic, decode symbols, detect display parameters, and extract full video frames. All of these functions are integrated into Introspect’s award-winning software environment, Pinetree. The figure below illustrates a typical application of the SV5C-eDP Analyzer connected to an Embedded DisplayPort Source.
