SV7C-eDP Embedded DisplayPort Analyzer

Complete Analysis of eDP up to 1.5 and DP up to 2.1 Systems in HBR and UHBR

견적 요청 자료실

| Benefits

Supports Embedded DisplayPort (eDP) up to v1.5 and DisplayPort (DP) up to v2.1 in HBR and UHBR
Supports Data Rates up to 26 Gbps, including bus probing applications with Introspect PV2 active probes
Configurable from 1 to 4 lanes (ML1 to ML4) plus auxiliary channel (AUX)
Extensive triggering functions and consecutive frame capture capabilities

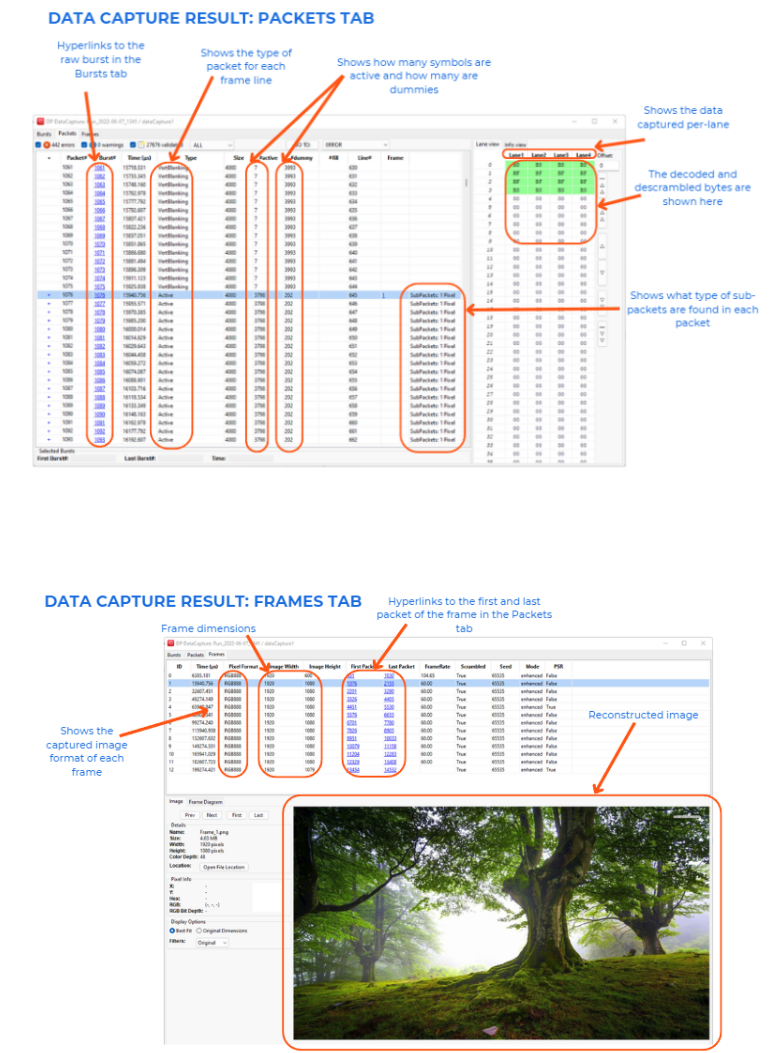

Full video frame extraction and data analysis tools

| Features

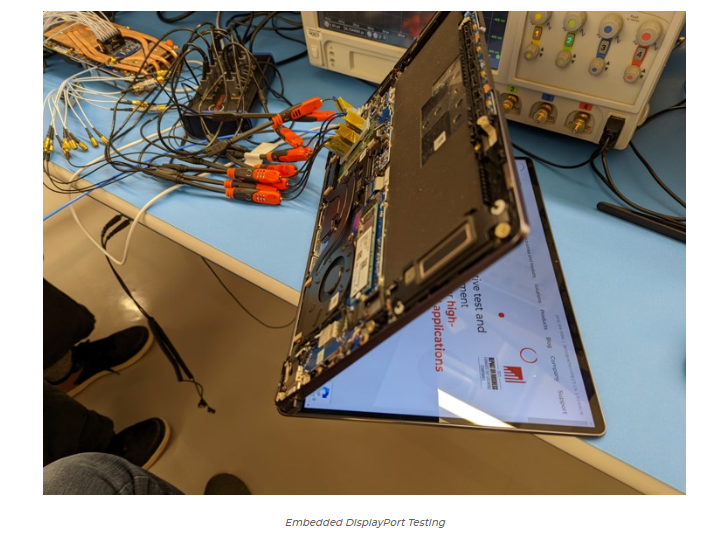

The SV7C-eDP Embedded DisplayPort Analyzer is an ultra-portable, high-performance instrument capable of analyzing traffic for Embedded DisplayPort and DisplayPort applications. The SV7C-eDP Analyzer may be used as either a DisplayPort sink device (for source testing) or as a probing solution for capturing protocol traffic on an Embedded DisplayPort bus. The Analyzer detects display parameters, supports link training, captures live traffic, and extracts full video frames. All these functions are integrated into Introspect’s award-winning software environment, Pinetree.
