SV3C-DPTX MIPI D-PHY Generator

  • Ultra-Portable, High-Performance, MIPI D-PHY Generator up to 6.5 Gbps
견적 요청 자료실

| Benefits

  • Any-rate operation

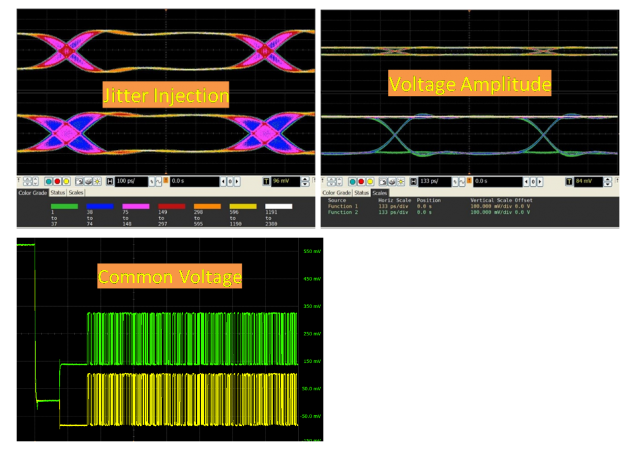

  • Per-lane HS voltage level and common-mode control
  • Per-lane LP voltage level control
  • Per-lane skew injection with < 1 ps resolution
  • Per-lane multi-source jitter injection
  • State-of-the-art programming environment based on the highly intuitive Python language

| Features

The SV3C-DPTX MIPI D-PHY Generator is an ultra-portable, high-performance instrument that provides the most comprehensive D-PHY receiver test capabilities available on the market.

The instrument operates at a continuous range of data rates and includes analog parameter controls that enable deep insights into receiver voltage sensitivity, receiver skew and jitter tolerance for receiver stress-testing. The D-PHY Generator operates with Introspect’s award-winning software environment, Pinetree, for automated physical layer compliance test, including the MIPI CTS. Pinetree also includes pattern compiler tools that enable the generation of complete DSI or CSI-2 packets such as color bars and active image frames for system-level test.

| Video Demo

Controlling D-PHY Parameters Using the SV3C DPTX D-PHY Generator
Introspect’s MIPI D-PHY Receiver CTS Application
Video Frame Generation Using the SV3C DPTX MIPI D-PHY Generator
Understanding Video Frames Using the SV3C DPTX D-PHY Generator
Understanding Line Time & Frame Rate Using the SV3C DPTX D-PHY Generator
