RSH1 Remote Sampling Head

Clean Probing of Parallel Buses

견적 요청 자료실

| Benefits

Minimized loading: Especially useful for low-voltage applications such as MIPI or embedded DisplayPort
Low Noise: Enables high-reliability protocol analysis or bit error rate testing
Multiple Connection Modes: Permanent or temporary attachment to DUTs

| Features

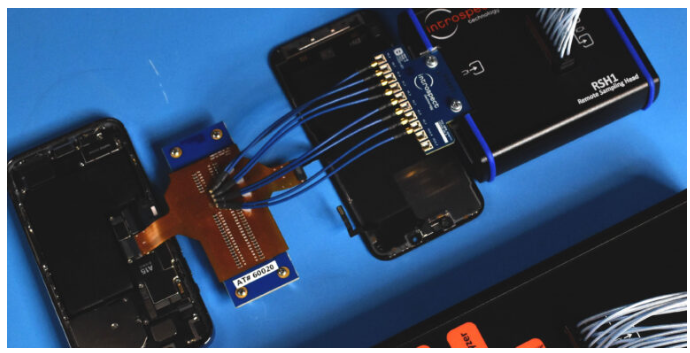

Introspect’s multi-conductor MIPI probe solution provides a simple connectorized interface for easy attachment to 4-lane MIPI D-PHY buses. Where multiple probes can result in a messy and tedious workspace, or where signals are in hard-to-reach areas, this remote sampling head enables a super clean signal probing setup.
