| Benefits
Complete Data and Command Capture: Modular design allows scaling to numerous simultaneous capture channels
Superior Signal Integrity: Active probing results in high-bandwidth measurement and easier de-embedding of interposer losses
Easy Debug: Electrical and protocol validation testing can occur with the same interposers and the same RSH active probe technology
| Features

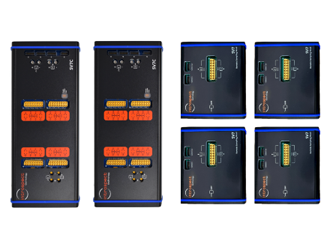

The SV7M-LPDDR5PA is a complete solution for validating and debugging LPDDR5/LPDDR5x memory interfaces. Providing support for one complete channel of an LPDDR5 DRAM (covering both the command and data buses), this analyzer can capture read and write commands, and it can provide deep analysis of all protocol events on the LPDDR5 bus. Coupled with interposer systems based on high-impedance active probing, this analyzer is capable of measuring new LPDDR5/LPDDR5x systems running at 8533 MT/s or more
